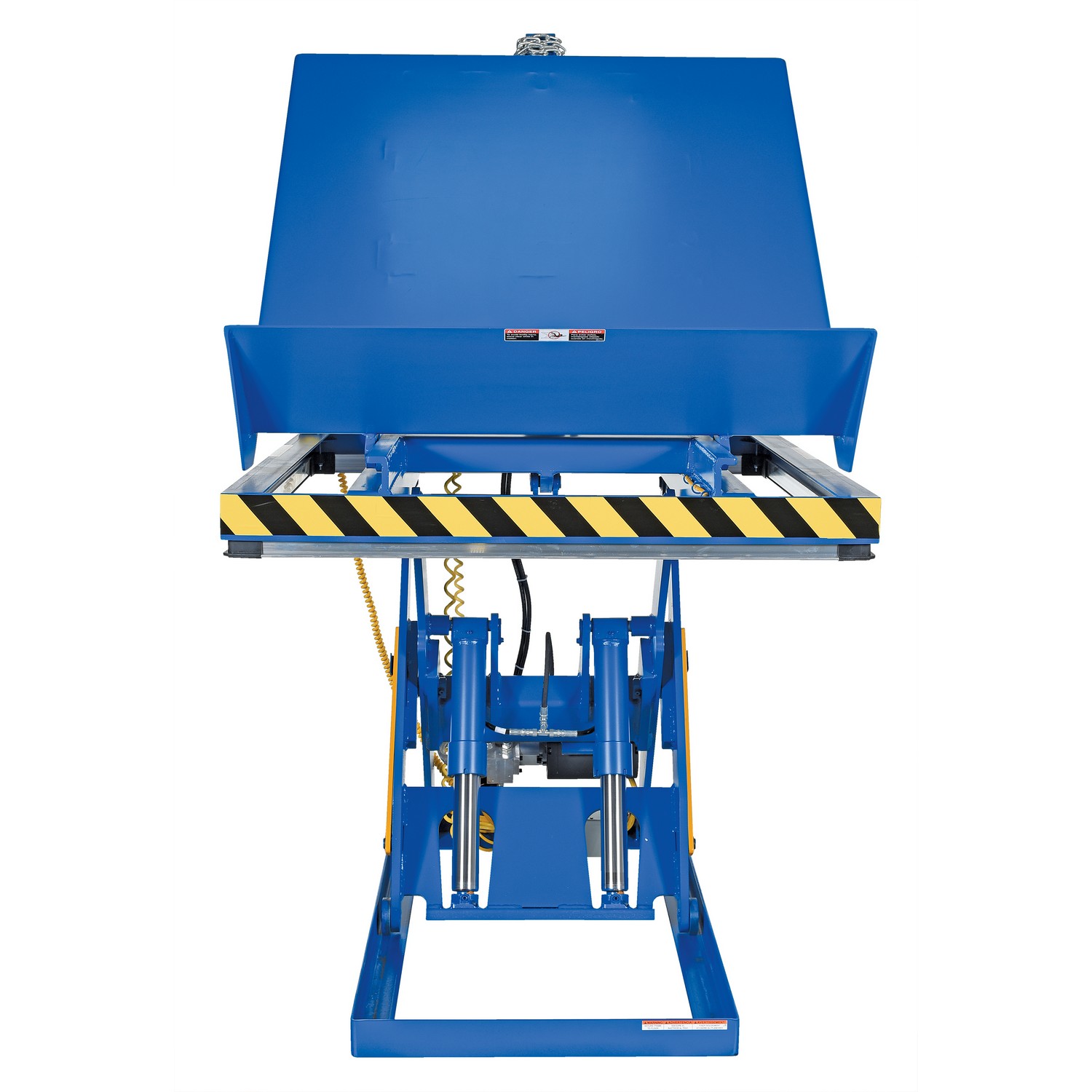

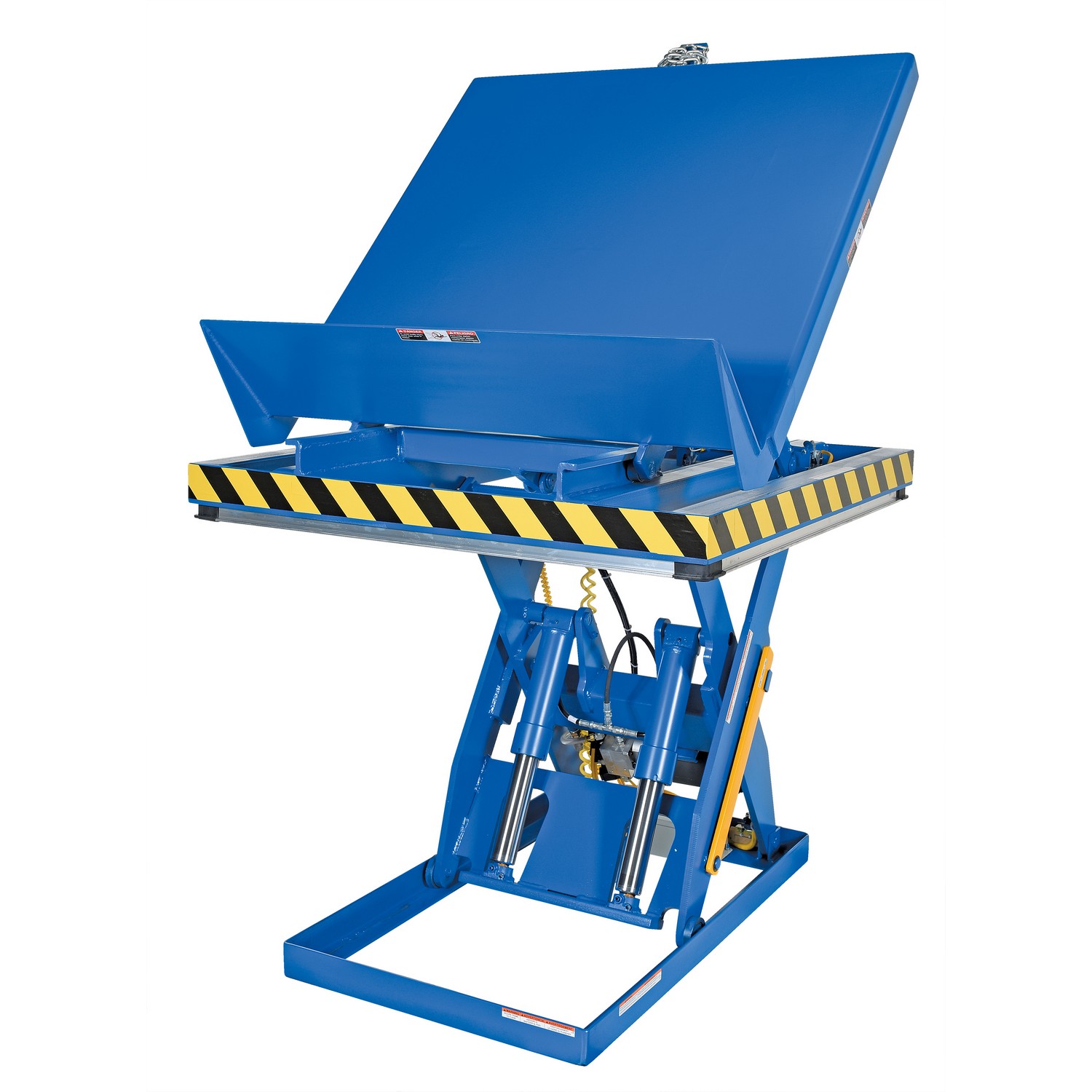

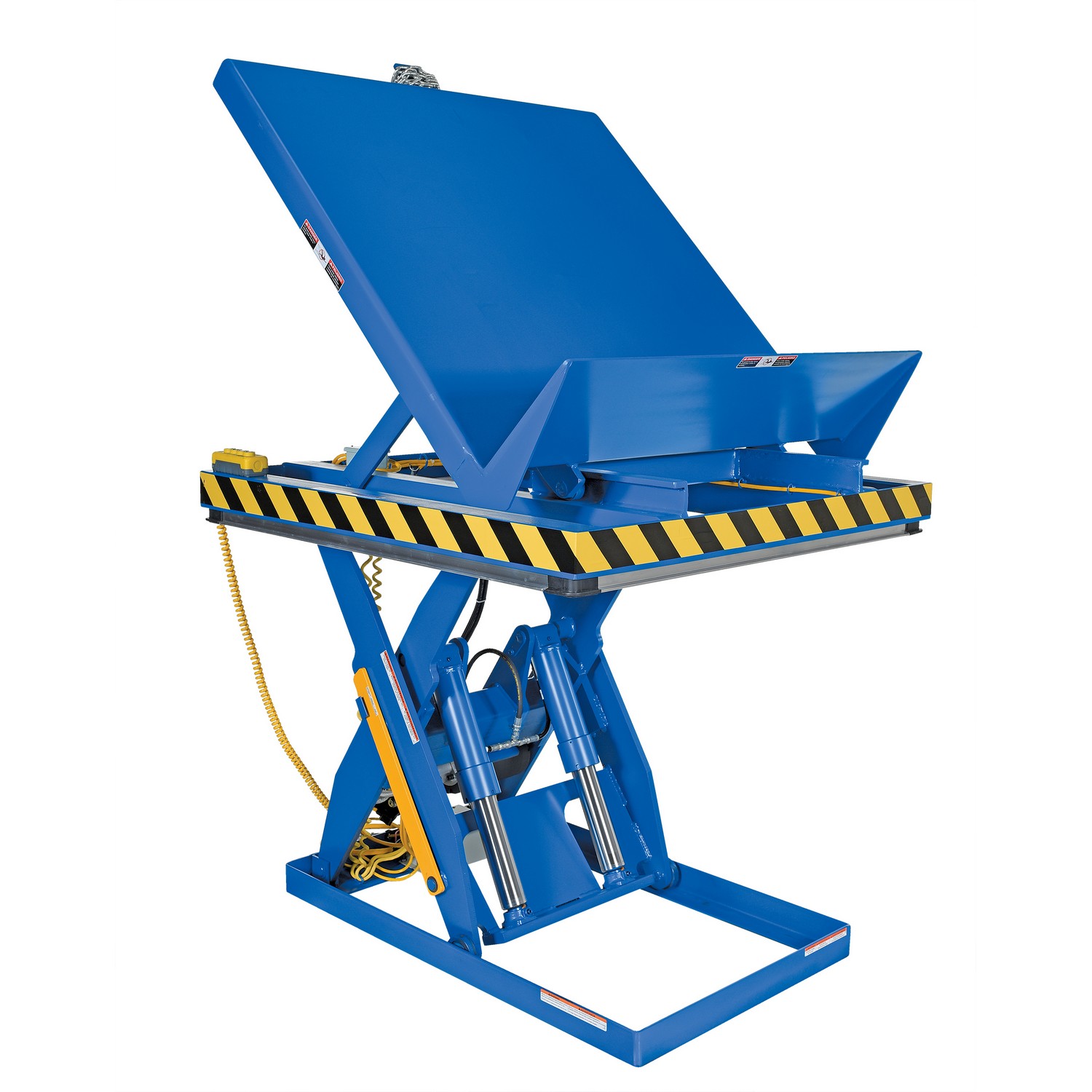

The Vestil EHLTT-4848-4-47 Lift & Tilt Scissor Table is a heavy-duty material handling solution designed to lift and tilt loads for controlled positioning. With a 4,000 lb capacity, it provides solid support for mid- to heavy-weight applications, and its 48 x 48 in. platform size offers ample workspace for standard pallets or sizeable loads. The table’s end-tilt configuration, standard with an option for side tilt, enables precise tilt angles to facilitate unloading, transfer, or inspection tasks while keeping the load secured during movement.
Construction and safety features are oriented toward reliable operation in demanding environments. A restraining chain and lip help keep loads from shifting during tilting, and an electric toe guard protects workers from pinch points as the table lowers. The unit includes a velocity fuse to maintain platform position in the event of hydraulic line or fitting failure, reducing unintended movement. Four push-button hand pendant controls provide straightforward local operation, while an upper limit switch reduces motor wear by stopping travel at maximum height. The model also incorporates a maintenance prop and offers optional accordion skirting for both lifting and tilting to contain the load area and improve containment during operation.
Operationally, the system is rated for 460 V/3-phase input, with lift and tilt cycle times of 22/13 seconds and 27/15 seconds, respectively, indicating brisk, predictable movement suitable for sequential handling tasks. The platform sits at a lowered height of 11 in. and rises to 47 in., with a 12 in. deck lip to help retain loads at height. A 96 in. coil cord provides flexible control connectivity. This configuration is suitable for manufacturing, warehousing, and assembly-line applications that require both elevation and tilt for efficient load handling while maintaining control over the load during tilting and positioning tasks.
Features:
- Restraining chain and lip keep the load in place during tilting
- Entry-side electric toe guard protects pinch points
- Includes velocity fuse to maintain platform height
- End tilt is standard with a side tilt option available
- Platform: 48 x 48 in., Capacity: 4,000 lb
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 4000
- Lowered Height (in.):
- 11
- Raised Height (in.):
- 47
- Platform Width (in.):
- 48
- Platform Length (in.):
- 48
- Deck Lip Height (in.):
- 12
- Coil Cord Length (in.):
- 96
- End Tilt (degrees):
- 45
- Standard Voltage/Phase:
- 460/3
- Lift Raised/Lowered (Seconds):
- 22/13
- Tilt Raised/Lowered (Seconds):
- 27/15
- Package Size:
- Each
