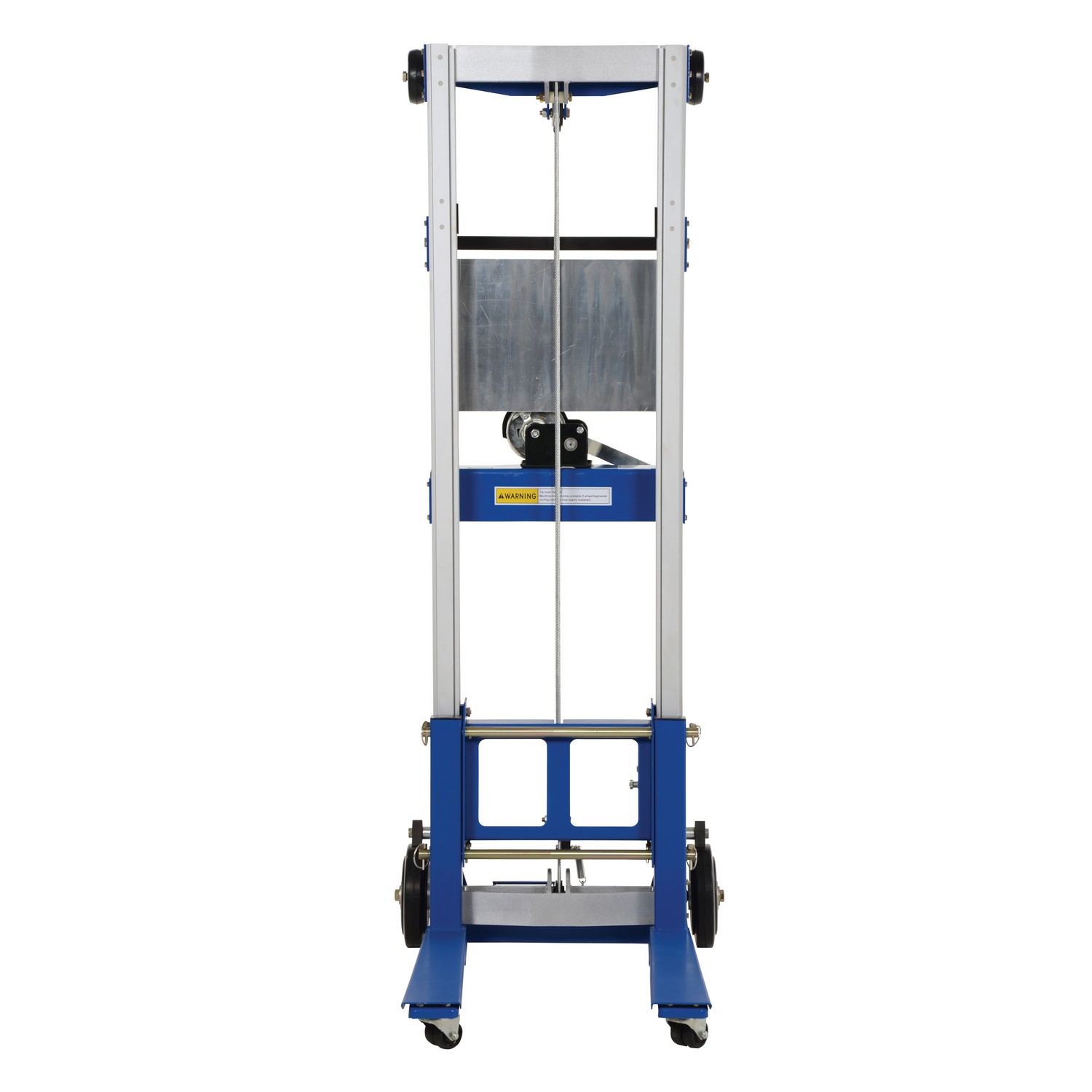

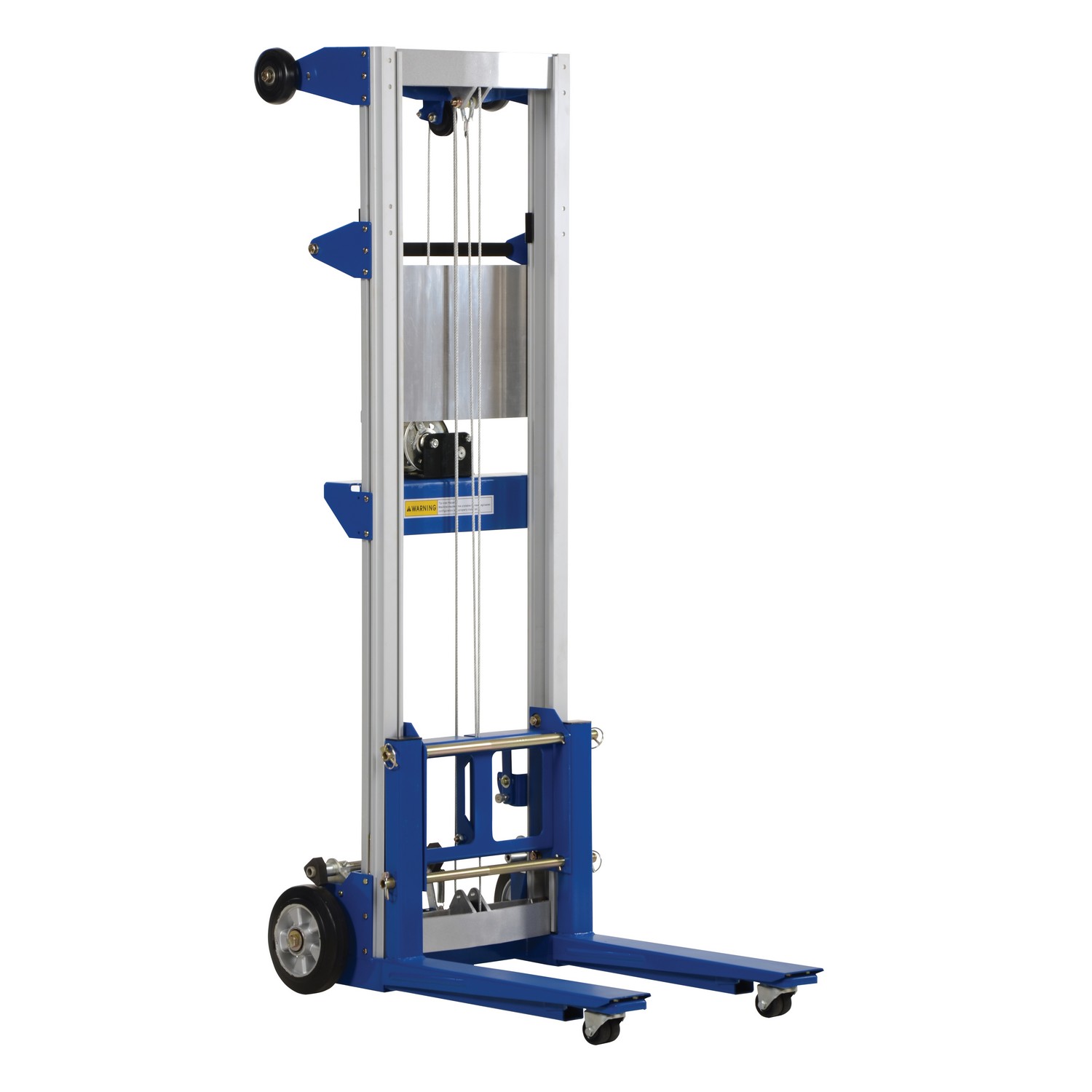

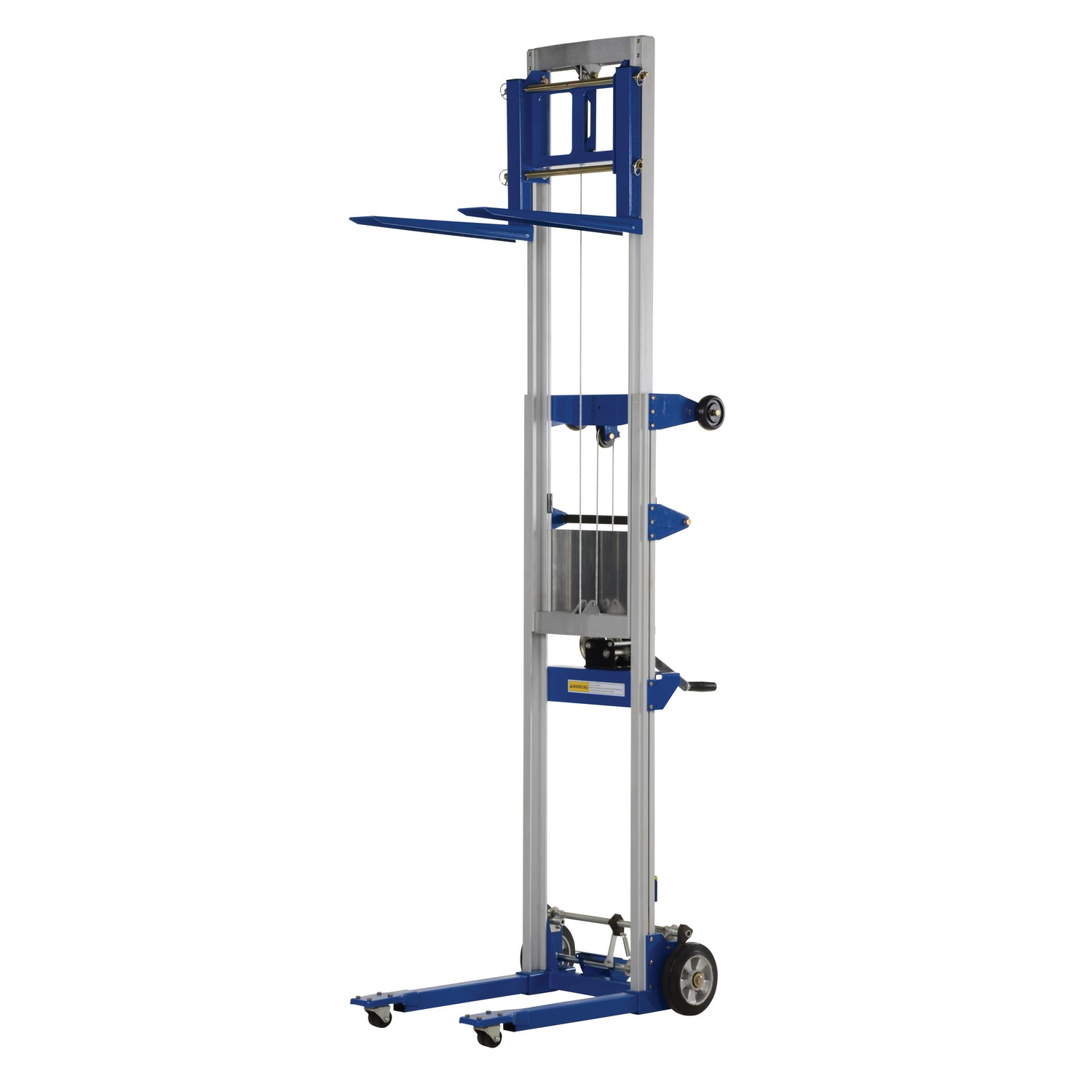

The Vestil A-LIFT-R-HP Hand Winch Lift Truck is a compact, portable lifting solution designed to raise and transport loads to and from shelving, equipment, or appliance installations. With a balanced steel-and-aluminum construction, it relies on a manual cable winch and a reversible handle to raise and lower forks, enabling controlled positioning in tight spaces where powered lifts aren’t practical. The unit’s counterbalance weight helps prevent tipping when lifting heavier items, and a built-in hold-down device secures the carriage during transport to enhance stability.
Engineered with fixed, non-adjustable forks that can be inverted to accommodate different height ranges, this lift features a 400 lb uniform capacity and a range of raised heights depending on fork position. Dimensions and components are configured to support precise, incremental lift control: the forks extend to 22-7/16 inches in length, with a fork width of 4 inches and a fork height of 1-3/4 inches. The design also includes dual wheel configurations suitable for mobility across shop floors, with an 8-inch rear non-marking wheel and 2-inch front swivel wheels to aid maneuverability in confined spaces.
Typical applications include placing or retrieving items from shelves, loading and unloading office equipment, and assisting with installation tasks requiring vertical travel without a powered hoist. When using the A-LIFT-R-HP, ensure load placement remains centered within the straddle width and within the stated capacity to maintain stability. The product ships as a single unit, ready to be deployed where manual lifting is appropriate, and it should be operated by personnel trained in hand-crank lifting and load handling procedures.
Features:
- Lightweight portable lift suitable for hundreds of applications
- Manual cable winch for raising and lowering forks
- Counterbalance weight design minimizes tipping with heavy loads
- Hold-down device secures carriage during transport
- Fixed straddle design with compatible fork dimensions
- Silver aluminum/steel construction for durability
- Color:
- Silver
- Material:
- Aluminum/Steel
- Uniform Capacity (lb.):
- 400
- Lowered Height (in.):
- 3-1/2 / 23-1/2
- Raised Height with Forks Down (in.):
- 97
- Raised Height with Forks Up (in.):
- 117
- Fork Width (in.):
- 4
- Fork Height (in.):
- 1-3/4
- Fork Length (in.):
- 22-7/16
- Fork Outside Diameter (in.):
- 20-7/8
- Fork Raise per Hand Crank Rotation (in.):
- 1
- Rear Non-Marking Wheel Diameter (in.):
- 8
- Front Swivel Wheel Diameter (in.):
- 2
- Inside Straddle Width (in.):
- 12-3/4
- Outside Straddle Width (in.):
- 20-7/8
- Design:
- Standard
- Package Size:
- Each
