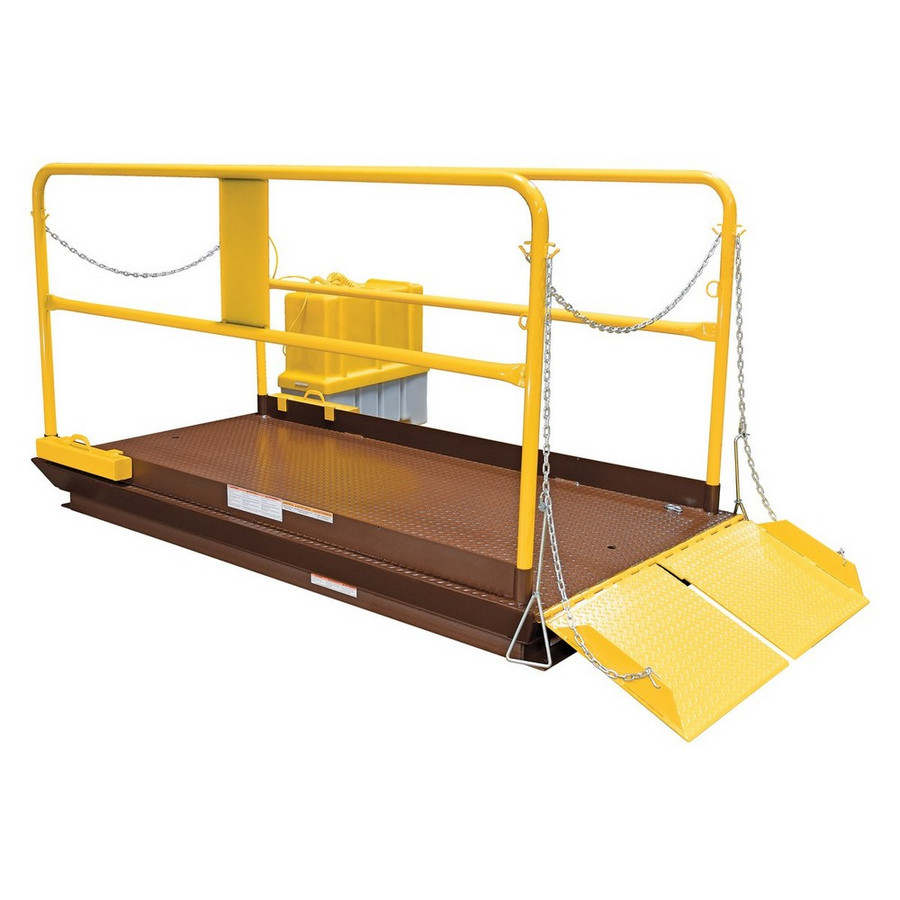

Vestil WL-100-10-712 is a steel, 7 ft by 12 ft scissor dock lift designed to facilitate loading and unloading from semi-trailers where a permanent dock is not available. Its robust platform and integrated hydraulic system provide a stable, elevated work surface with a rated capacity of 10,000 lb, supporting typical palletized loads during dock transfers. The unit includes safety features designed to mitigate hydraulic and travel risks, such as a safety velocity fuse on the cylinders and an upper travel limit switch that cuts power when the lift reaches its maximum height. A 20-foot coil cord connects the push-button control to the power source, and the system is pre-wired with a magnetic starter and overload relay for straightforward integration into existing facilities.
Construction emphasizes a non-slip work surface and perimeter protection. The deck relies on heavy-gauge tread plate steel to resist wear in busy loading environments, while removable high-visibility safety rails with fixed toe boards, beveled toe-guards, and electric toe-guards around the perimeter help create a safer workstation during elevated transfers. The standard external drive motor is rated at 6.5 HP, 460V, 3-phase, 60 Hz and can be located up to 8 feet away from the lift, offering flexible installation options in workspace layouts. The overall frame width of 62 inches helps determine how the lift will fit within dock spaces and truck openings.
Users should consider site access and electrical requirements when planning installation. The lift is sized by its platform dimensions and capacity, and its packaging is listed as a per-unit (each) quantity. Because this description draws directly from the manufacturer’s documentation, verify that the unit’s electrical configuration and enclosure requirements align with your facility’s electrical distribution and safety protocols prior to purchase. maintenance considerations include regular checks of the hydraulic system, limit switch operation, and inspection of toe-guards and rails for damage.
Features:
- Tread plate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
- Unique design services semi-trailers when loading dock is unavailable
- 10000 lb uniform capacity for heavy loads
- Uniform Capacity (lb.):
- 10000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
