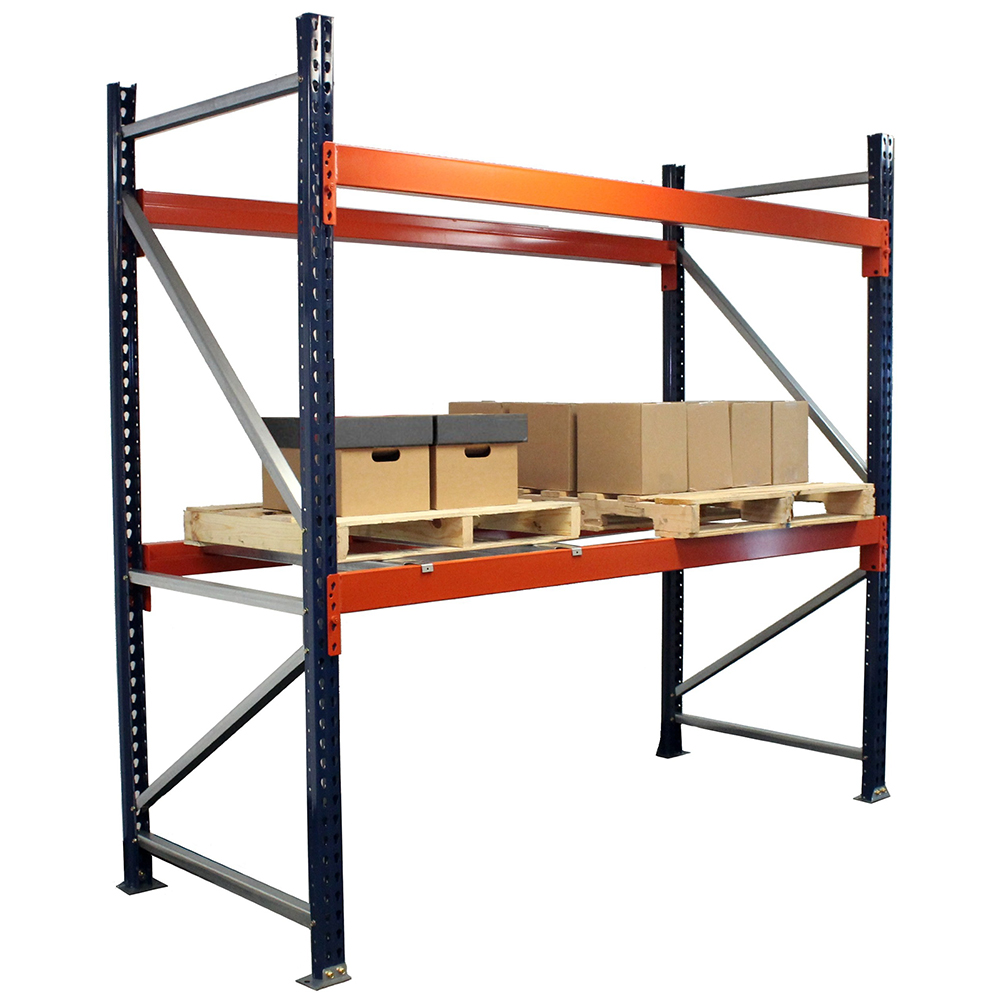

The Interlake Mecalux 314964859E144S is a blue/orange bolted teardrop pallet rack starter designed for heavy-duty, direct-access pallet storage in industrial warehouses. This kit includes two uprights and two pairs of beams, configured to create a ready-to-use starter section that supports efficient stock management and easy access to each pallet. Built from high-strength steel with a cataphoresis coating, the assembly is engineered for durability in demanding environments and is finished with baked enamel and powder coating to resist daily wear and corrosion.
The teardrop upright columns feature face perforations for 2-inch incremental shelf adjustments, enabling flexible configuration as inventory sizes change. Orange beams incorporate a piston-lock connection that automatically seats and locks, reducing the risk of beam displacement and providing a tamper-resistant interface between beam and frame. The overall design accommodates wire decking and other accessories via a 1-5/8 inch step, broadening the rack’s versatility for various product types and storage needs. The unit is RMI-certified, reflecting adherence to established racking standards and quality benchmarks for warehouse storage systems.
This item is listed as not stocked in the warehouse, so processing and transit times may vary. If a precise delivery date is needed, customers should contact the sales team before ordering, as expedited shipping and order-cancellation options cannot be guaranteed. Suitable for non-seismic areas, this starter is intended to pair with additional Interlake Mecalux racking sold separately to extend capacity and adapt to specific warehouse layouts.
Features:
- Pre-configured bolted pallet rack starter unit with two uprights and two beam levels
- Uprights and beams made from high-strength steel with tear drop perforations for 2-inch shelf adjustments
- Cataphoresis paint process offers anti-corrosion protection and uniform coating

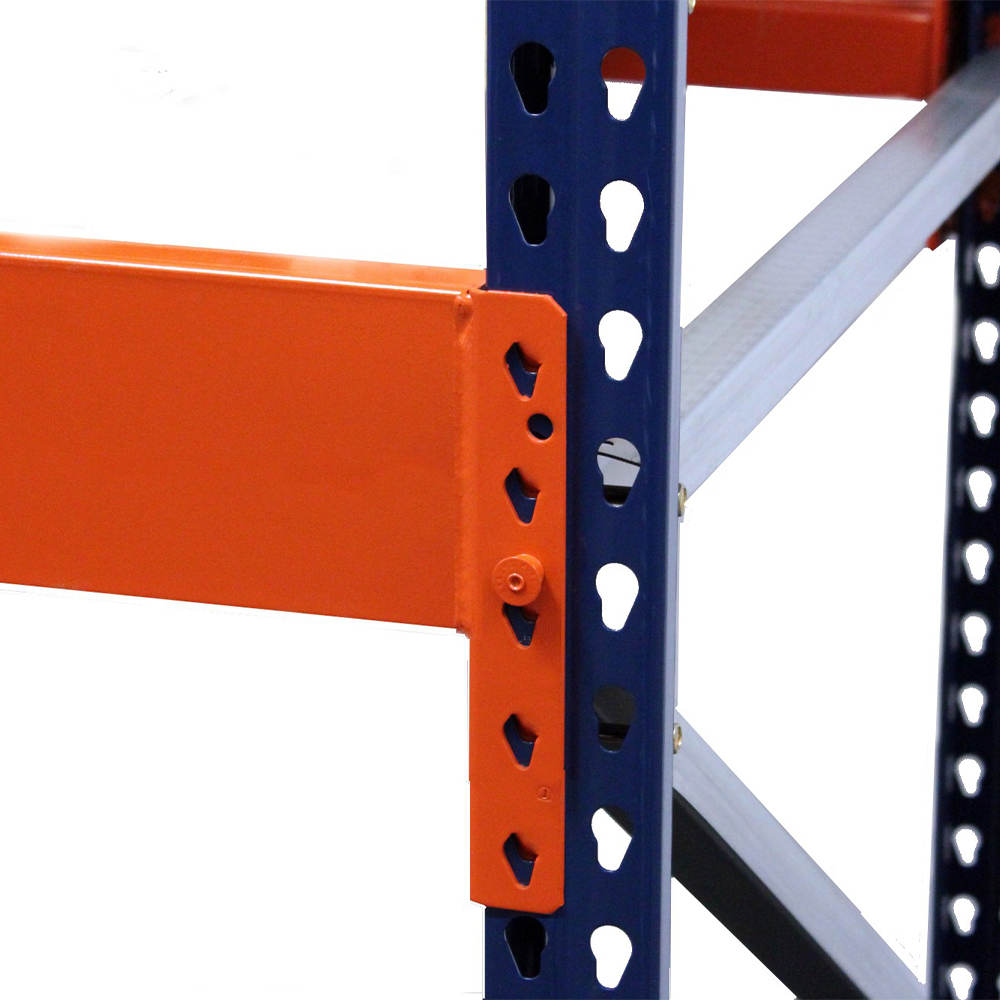

- Orange piston-lock beams ensure automatic frame-to-beam engagement and tamper resistance
- 1-5/8-inch step on beams accommodates wire decking and accessories
- Non-seismic area use only and easy assembly
- RMI certification
- Depth:
- 48"
- Height:
- 96"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 144"
- Beam Height:
- 5.93"
- Shelf Capacity:
- 6,250 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
