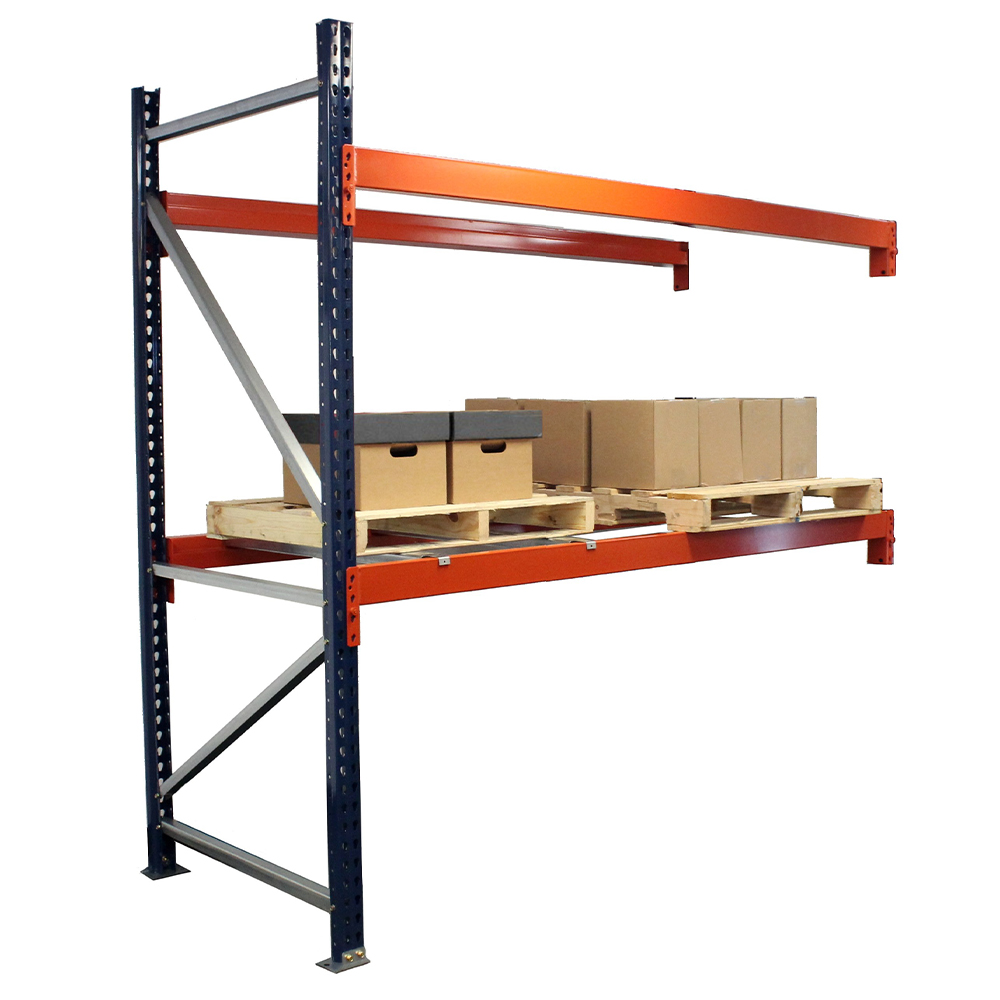

The Interlake Mecalux 3141444859E144A blue/orange bolted teardrop pallet rack starter is a heavy-duty storage solution designed to organize and access pallets in demanding industrial environments. This kit provides a complete starter configuration with two upright frames and two pairs of shelf beams, enabling direct pallet access and efficient stock management. The tear-drop upright design supports adjustable beam levels, facilitating changes in storage height to accommodate different product sizes as needs evolve. The unit is manufactured from high-strength steel and finished with a cataphoresis coating followed by baked enamel and powder coatings for corrosion resistance and a uniform protective layer.

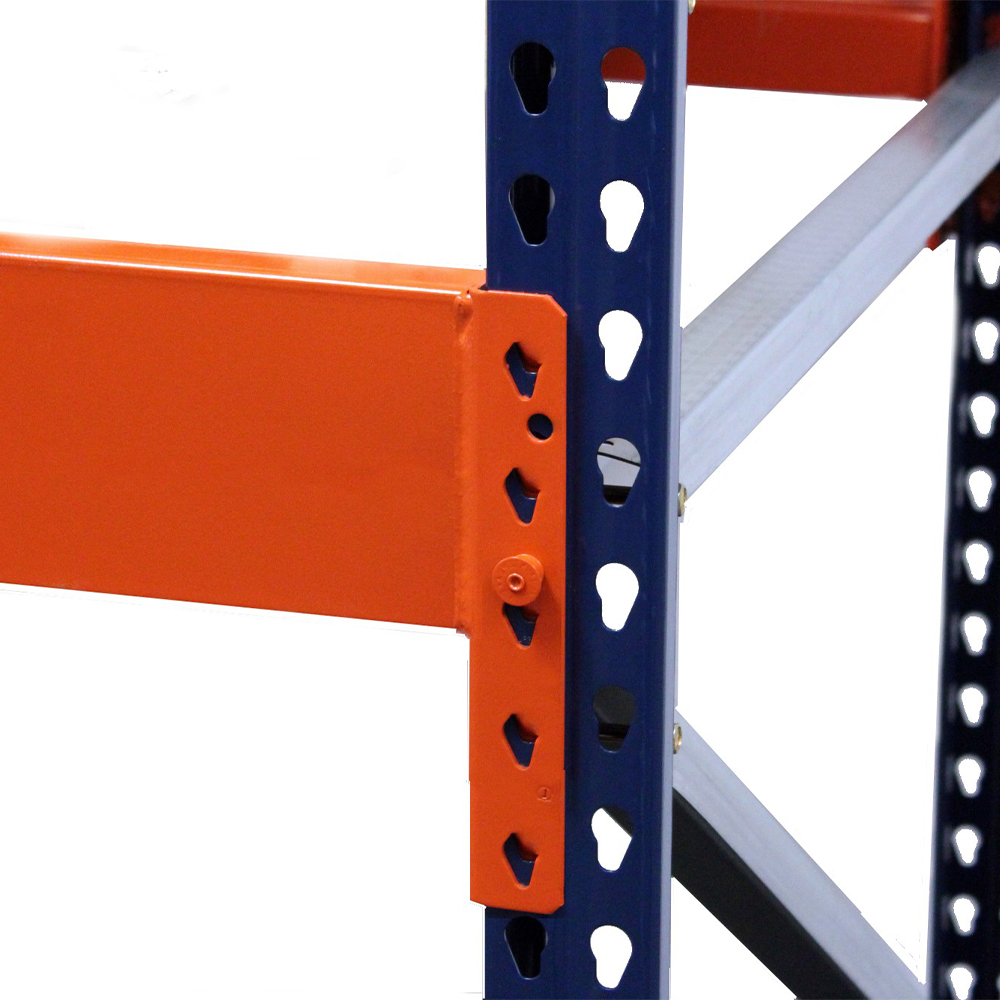

Key construction features include a piston-lock connection system between orange beams and frames, which automatically seats and locks to help deter displacement and tampering. The system accepts the 1-5/8 inch step in the beams, accommodating wire decking and other accessories as you expand. This starter unit is RMI-certified, underscoring its compliance with recognized pallet rack safety and performance criteria when used as part of a properly configured system. While the item is not stocked in our warehouse, the available documentation notes the kit’s versatility for wide product assortments and straightforward assembly.
Typical use scenarios involve bulk storage in warehouses with varying product dimensions, where easy access to individual pallets matters for cycle counting and order picking. This bolt-together starter kit is designed for pairing with additional Interlake Mecalux racking components sold separately to extend height, width, or depth as needed. Please note that processing times and availability may fluctuate, and delivery terms or cancellations may be restricted. Always verify compatibility with your existing rack layout and floor anchor requirements before installation.
Features:
- Assembled bolted pallet rack starter unit with two uprights and two beam shelf levels
- High-strength steel uprights and beams with tear drop holes for 2" shelf adjustments
- Cataphoresis electro-chemical coating provides anti-corrosion protection
- Orange beams feature piston lock frame-to-beam connection for automatic locking
- Damage- and tamper-proof piston lock system
- 1-5/8" step on beams accommodates wire decking and accessories
- RMI certified; suitable for non-seismic area use
- Depth:
- 48"
- Height:
- 144"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 144"
- Beam Height:
- 5.93"
- Shelf Capacity:
- 6,250 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
