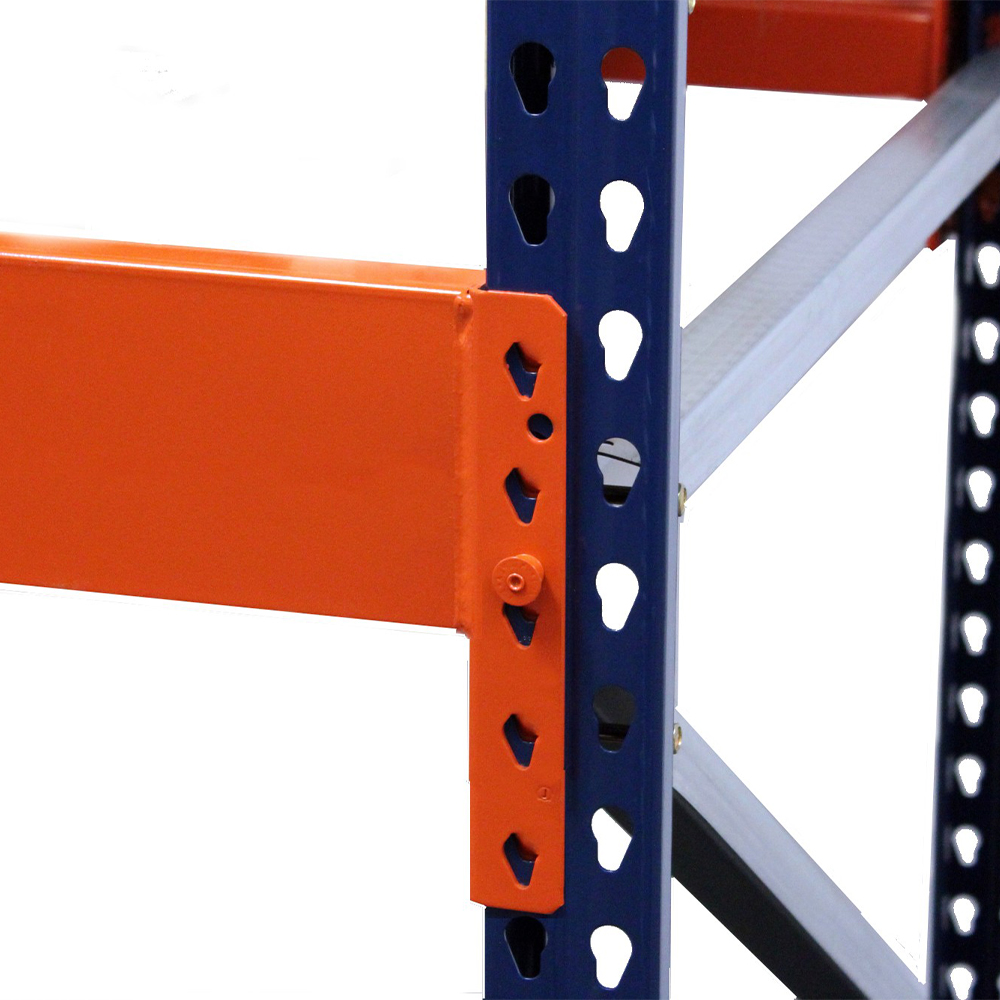

The Interlake Mecalux 3141444840E96A is a blue/orange bolted teardrop pallet rack starter unit designed for expandable, high-capacity storage in demanding warehouses. This kit provides two upright frames and two pairs of shelf beams, enabling direct pallet access and straightforward stock management. The assembly uses high-strength steel components with a cataphoresis coating process, delivering corrosion resistance and an even protective layer along all treated surfaces, which helps withstand daily warehouse wear and tear.
Features:
- Assembled bolted pallet rack starter unit with two uprights and two beam levels
- Cathodic (cataphoresis) paint process provides anti-corrosion protection and uniform coating
- Tear drop uprights allow 2" shelf adjustment increments
- Orange beams with piston lock connection for secure, tamper-resistant seating
- 1-5/8" step on beams accommodates wire decking and accessories
- Non-seismic area use only
- RMI-certified bolt-together pallet rack system
- Depth:
- 48"
- Height:
- 144"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 96"
- Beam Height:
- 4.00"
- Shelf Capacity:
- 5,380 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
