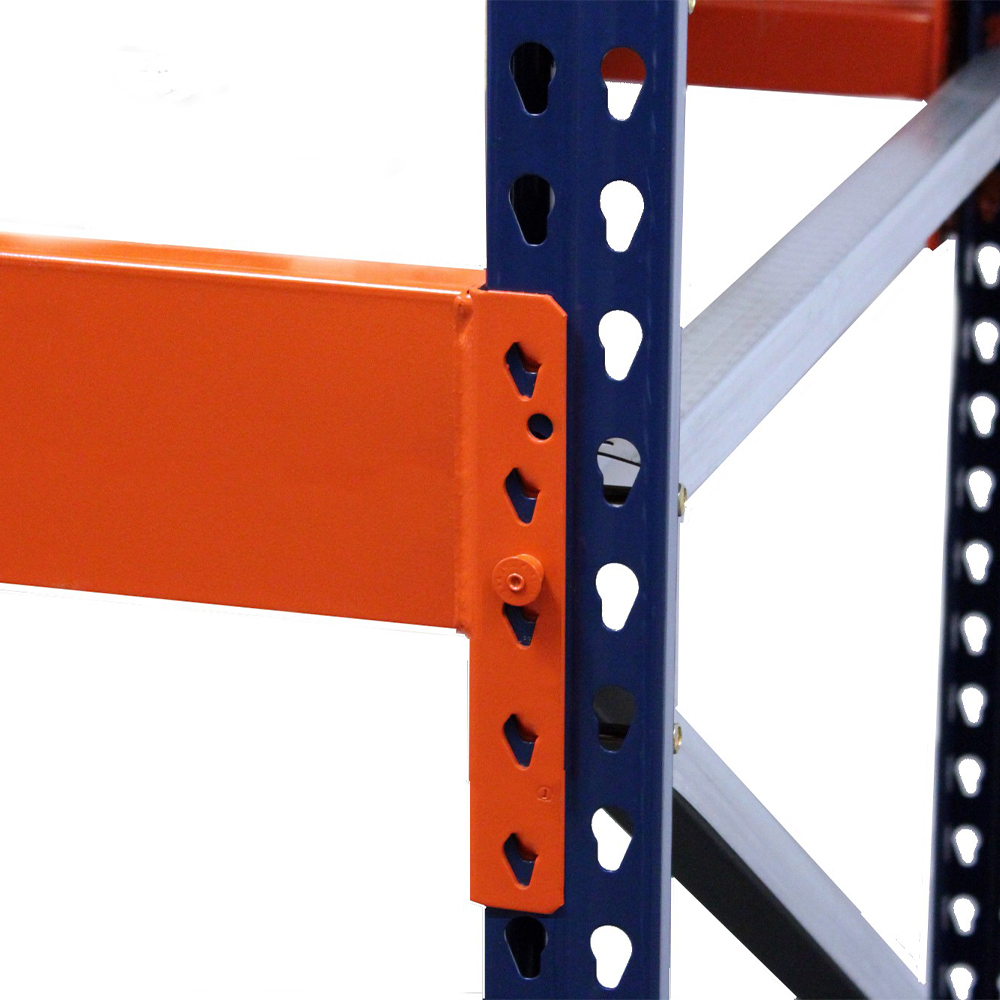

The Interlake Mecalux 3141444245E108A Blue Bolted Pallet Rack Tear Drop Add-on is a high-capacity storage solution designed to expand your warehouse shelving with a durable, bolt-together starter system. This add-on features blue and orange components with tear drop uprights and wide-span beams that enable easy pallet access and straightforward reconfiguration as needs evolve. Built to endure demanding industrial environments, the system uses high-strength steel and protective coatings to resist wear and corrosion in daily operations.
Construction details include tear drop perforations that allow shelf height adjustments in 2-inch increments, along with piston-lock connections that secure the beam-to-frame interface to minimize unintended disengagement. The assembly process emphasizes secure anchoring with standard pre-punched footplates, and the cataphoresis-based coating provides anti-corrosion protection and uniform layer thickness, helping to protect the storage system from routine warehouse exposure. The orange beams incorporate a piston-lock mechanism designed to prevent accidental beam movement, while the 1-5/8 inch step within the beams accepts wire decking and other accessories for added versatility.
Typical use cases include expanding capacity in facilities with mixed product types, where a pre-configured starter unit (two uprights and two beam levels) can be matched with additional racking for scalable storage. This item is listed as not stocked in some cases, so processing times and availability may vary; verify delivery expectations before ordering. Compatibility notes indicate the system is suitable for non-seismic environments and is RMI-certified, reflecting adherence to industry benchmarking for rack assemblies. Packages are delivered as a kit, intended for on-site assembly alongside compatible components from Interlake Mecalux.
Features:
- Includes two uprights and two beam shelf levels for a ready-to-install starter unit
- Tear drop perforations allow 2" increment shelf adjustments
- Cataphoresis electro-chemical coating provides corrosion resistance and uniform protection
- Orange beams with piston lock frame-to-beam connections prevent displacement
- 1-5/8" step on beams supports wire decking and accessories
- RMI certified bolted pallet rack starter unit
- Easy and simple assembly
- Depth:
- 42"
- Height:
- 144"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 108"
- Beam Height:
- 4.50"
- Shelf Capacity:
- 5,380 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
