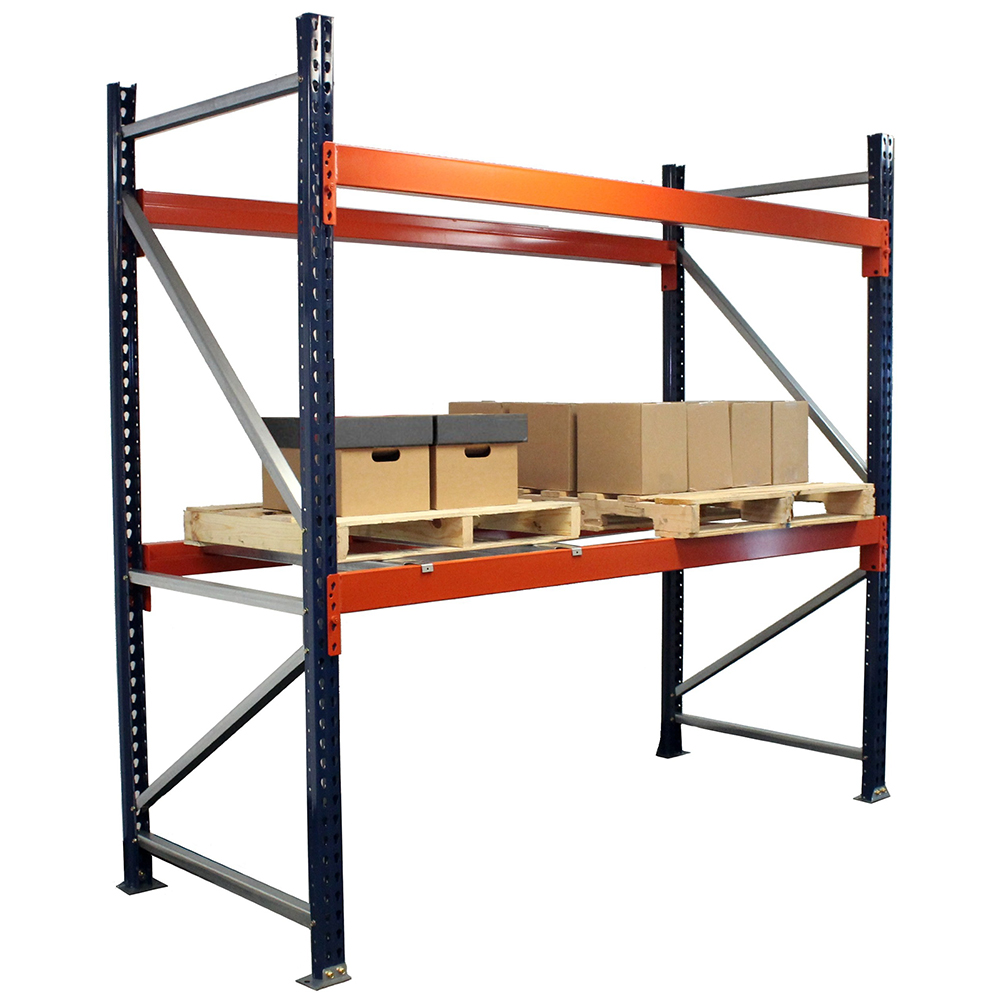

The Interlake Mecalux 314964245E108S Blue/Orange Bolted Teardrop Pallet Rack Starter is a ready-to-install storage solution designed to organize and access pallets efficiently in demanding industrial settings. This starter unit combines two upright frames with two pairs of shelf beams, forming a modular foundation that supports wide-span configurations and straightforward expansion when paired with additional racking components. The teardrop perforations on the uprights enable 2-inch incremental beam adjustments, giving you flexibility to accommodate varying pallet sizes and stock profiles.
Constructed from high-strength steel and finished with a cataphoresis electro-chemical coating, the system features durable anti-corrosion protection and an even coating thickness that withstands daily warehouse wear. The orange beams incorporate a piston lock connection to the frame, providing automatic seating and enhanced resistance to accidental disengagement, while helping protect against tampering and beam displacement. The 1-5/8 inch step on the beams accommodates accessory options such as wire decking, enabling tailored storage configurations. This product is RMI-certified, reflecting adherence to industry rack standards and performance expectations for bolted pallet rack systems.
Ideal for warehouses seeking versatile, easy-to-assemble storage with direct pallet access, this starter unit supports robust load handling—up to 5,380 lbs per shelf and 20,807 lbs at 48-inch beam spacing, with a 4.5-inch beam height and 108-inch beam width. It is important to note that the item is not stocked in our warehouse, so processing and transit times can vary; verify delivery timelines before ordering. This starter kit is designed for non-seismic environments and should be paired with compatible accessories and frames to achieve the desired storage footprint and capacity.
Features:
- Assembled selective bolted pallet rack starter unit with two uprights and two beam levels
- High-strength steel uprights and beams with tear drop perforations for 2" shelf adjustment
- Cataphoresis paint process provides anti-corrosion protection and uniform coating

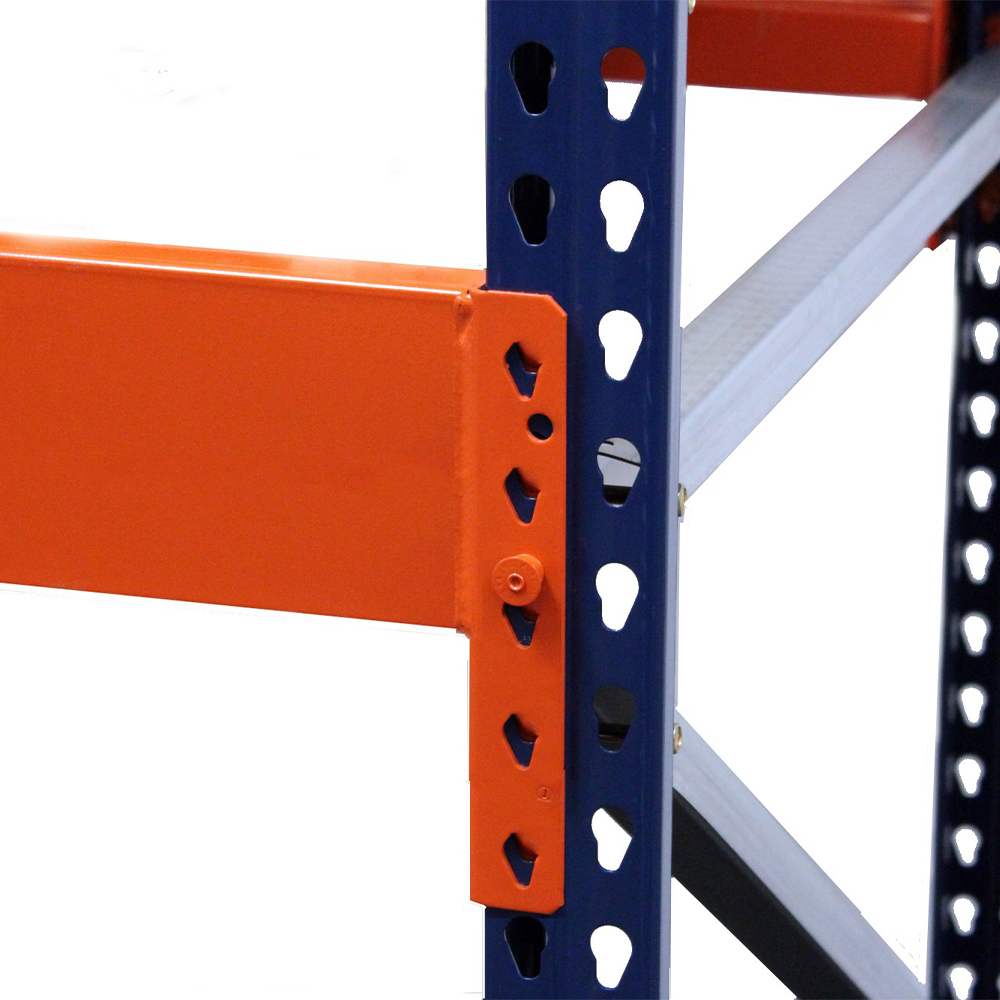

- Orange beams with piston lock frame-to-beam connection for automatic seating and anti-displacement
- 1-5/8" beam step compatible with wire decking and accessories
- Non-seismic use only and easy to assemble
- RMI-certified pallet rack starter unit
- Depth:
- 42"
- Height:
- 96"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 108"
- Beam Height:
- 4.50"
- Shelf Capacity:
- 5,380 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
