The Interlake Mecalux 314964840E96A is a blue/orange bolted teardrop pallet rack starter unit designed for heavy-duty, wide-span storage needs. This kit provides a complete, ready-to-assemble selective bolted pallet rack solution with two upright frames and two pairs of shelf beams, enabling direct access to each pallet for straightforward stock management. The tear drop uprights and high-strength steel beams are finished with a protective coating process, contributing to durability in demanding warehouse environments. The orange beams feature a piston lock connection that automatically seats and locks, reducing the risk of beam displacement and helping to maintain a stable rack configuration once assembled.
The system supports 2" incremental beam adjustments via tear drop perforations on the upright columns, allowing you to tailor the storage footprint to varying pallet dimensions. The kit’s design incorporates standard, pre-punched footplates for anchoring, and the overall assembly aligns with safety and maintenance considerations typical of bolted pallet rack systems, including corrosion protection from the electro-chemical cataphoresis coating process. This product is certified by Rack Manufacturers Institute (RMI) and is offered as part of Interlake Mecalux’s modular storage line, suitable for facilities seeking a configurable, long-span racking solution.
Practical use considerations include its suitability for non-seismic areas and the need to confirm availability and delivery timing since the item is not stocked in the warehouse. When paired with additional Interlake Mecalux components sold separately, the long-span beams and uprights can be expanded to accommodate a broader range of product types, sizes, and inventory levels. Package contents are listed as a kit, and care should be taken to verify fit with existing warehouse dimensions and load requirements prior to purchase.
Features:
- Versatile assembled bolted pallet rack starter unit
- Two uprights and two beam levels in a kit
- Tear drop perforations for 2" incremental adjustment
- Cataphoretic coating for anti-corrosion protection

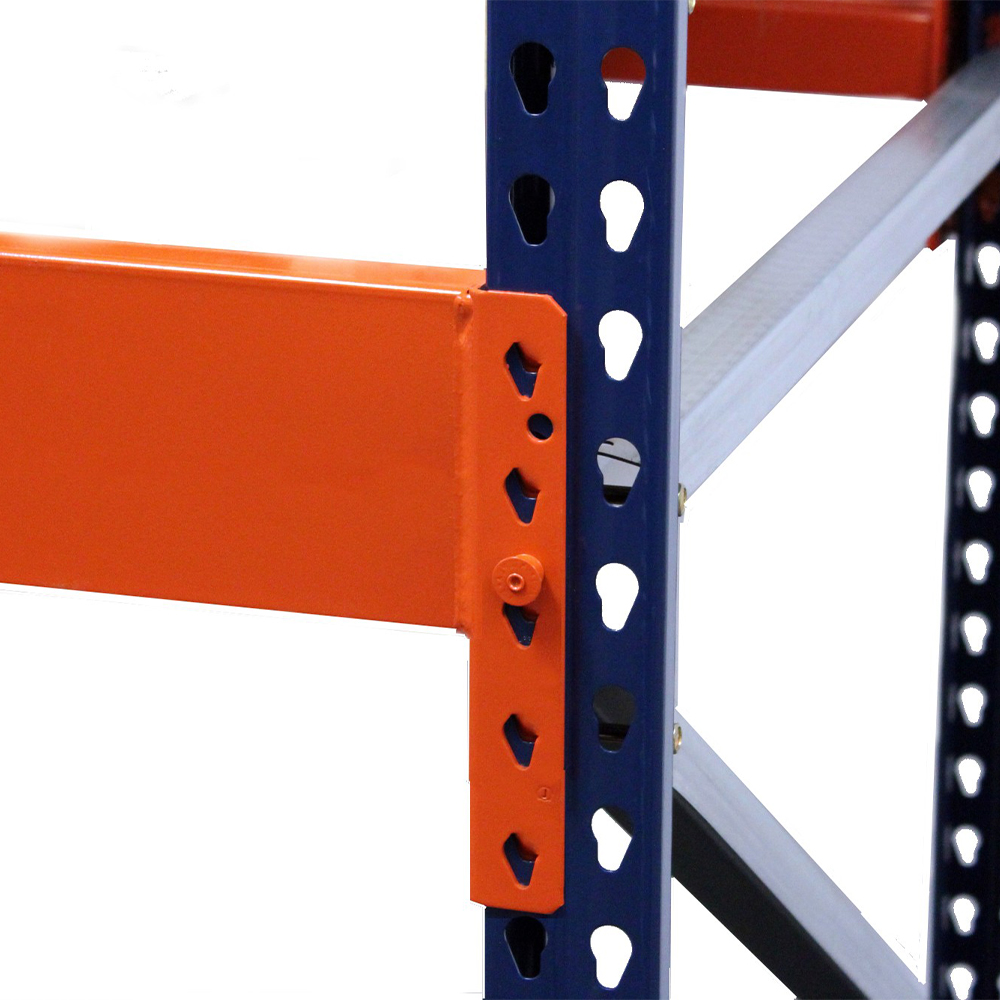

- Orange beams with piston lock connection for secure, tamper-resistant mounting
- 1-5/8" step on beams accommodates accessories
- RMI certified
- Depth:
- 48"
- Height:
- 96"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 96"
- Beam Height:
- 4.00"
- Shelf Capacity:
- 5,370 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
