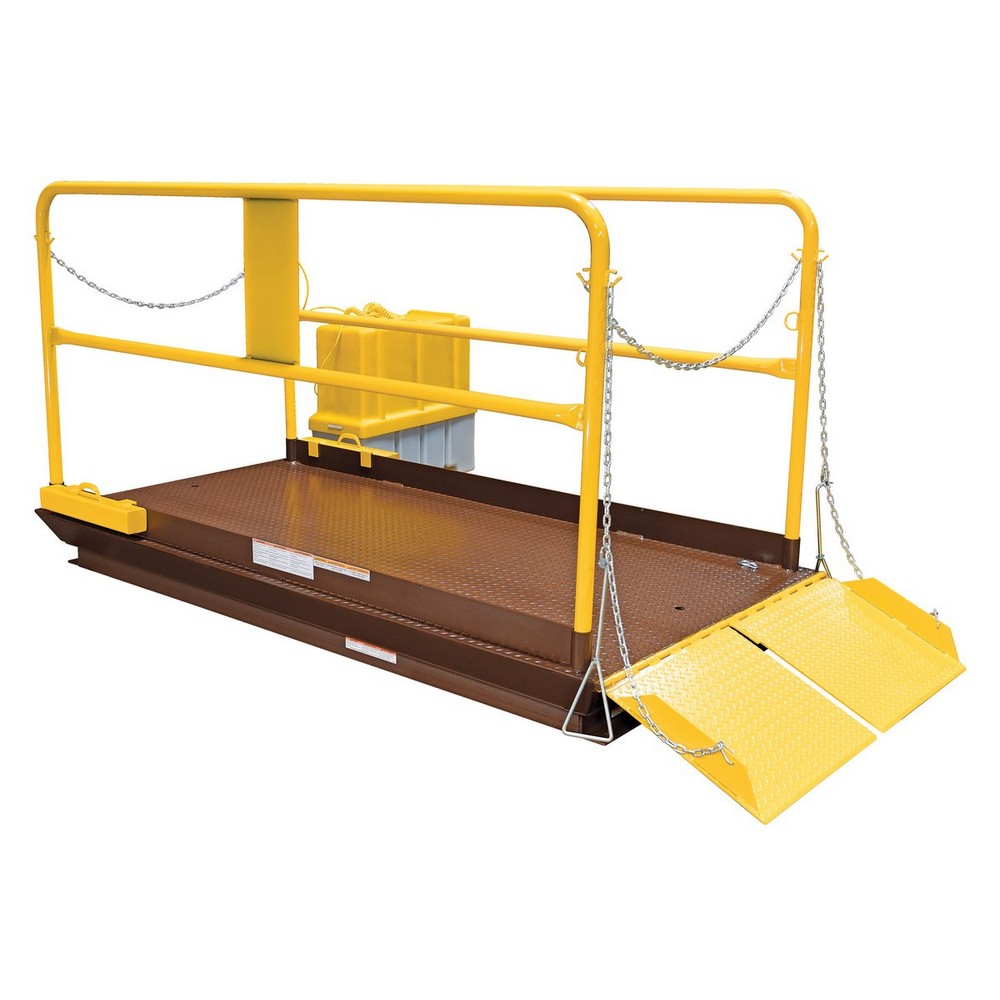

Vestil WL-100-12-612 is a heavy-duty steel truck scissor dock lift designed to bridge the gap between a loading dock and a semi-trailer, enabling safer loading and unloading when a permanent dock isn't available. The platform uses a diamond plate steel deck to provide a non-slip surface and a sturdy, elevated working area for materials handling. The unit is powered by an external 6.5 HP, 460V, 3-phase motor and includes safety features intended to protect both operators and the equipment during operation.
Key construction and safety features include hydraulic cylinders equipped with safety velocity fuses to mitigate hydraulic line breaks, an upper travel limit switch that cuts power when the lift reaches its maximum raised height, and a fully wired control system with a push-button control on a 20-foot cord and a pre-wired control box with magnetic starter and overload relay. The lift ships with high-visibility removable handrails, fixed toe boards, beveled toe-guards, and electric toe-guards around the platform perimeter, which help maintain a safe working envelope during use. The overall frame width is 62 inches, and the unit is designed for applications where semi-trailer loading or unloading occurs away from permanent docks.
This model is appropriate for facilities needing a portable, elevated loading surface for 12,000 lb. capacity tasks. It is designed to be used with compatible dock configurations and may require close attention to electrical supply arrangements and mounting considerations based on the 460V, 3-phase service. The package is specified as a single unit."
Features:
- Unique design services semi-trailers when loading dock is unavailable
- Tread plate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
- Uniform Capacity (lb.):
- 12000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
