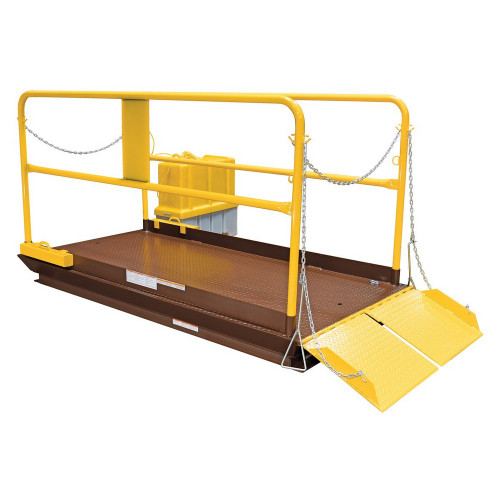

Vestil WL-100-12-610 is a steel premium scissor dock lift designed to bridge the gap between ground level and a semi-trailer bed, enabling safe, efficient loading and unloading when a permanent loading dock isn’t available. The lift features a diamond plate deck that provides a durable, non-slip surface to help prevent slips during material handling in busy dock environments. Its 12,000 lb uniform capacity supports typical palletized loads encountered in warehouse operations and contributes to safer handling of heavy goods. The unit is configured with a 6 ft by 10 ft platform and includes safety components such as safety velocity fuses on the hydraulic cylinders and an upper travel limit switch to automatically de-energize the system at maximum height, reducing the risk of over-extension. A 20 ft coil cord keeps the operator’s control station within reach, and the pre-wired control box with magnetic starter and overload relay simplifies integration with existing electrical systems.
The WL-100-12-610 ships as a complete system with high-visibility safety features, including removable handrails and fixed toe boards, along with beveled toe-guards and electric toe-guards around the deck perimeter. The standard external 6.5 HP, 460V, 3-phase 60 Hz motor can be positioned up to 8 feet away from the lift, offering some flexibility in plant layout. Mobile compatibility and mounting details are implied by the overall frame and dimensions, with the overall frame width measuring 62 inches, and the package size listed as each, indicating individual units ready for installation. This information helps buyers plan for installation clearances, electrical requirements, and maintenance access in industrial environments.
Features:
- Designed to service semi-trailers when dock access is unavailable
- Tread plate surface for a safe, non-slip grip
- Safety velocity fuses protect hydraulic cylinders
- Upper travel limit switch cuts power at max height
- Uniform 12,000 lb capacity
- Sturdy steel construction
- Uniform Capacity (lb.):
- 12000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
