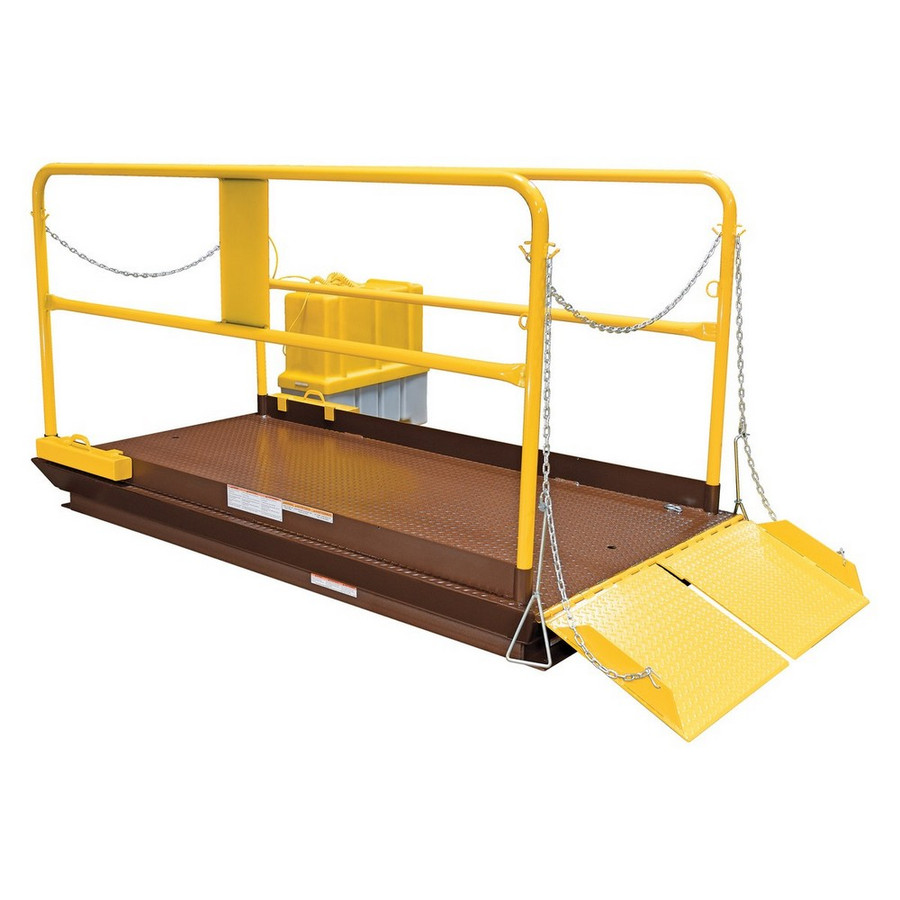

Vestil WL-100-10-612 is a heavy-duty truck scissor lift designed to bridge the gap between the dock and a semi-trailer bed, enabling safer loading and unloading when a permanent loading dock isn’t available. The 6 ft by 12 ft deck provides a substantial platform for palletized goods and equipment, with a diamond plate surface that helps reduce slippage during material handling. The unit is built around a robust steel frame and is powered by a 6.5 HP external motor option (460V, 3-phase, 60 Hz) that can be located up to 8 feet away, offering flexibility in installation and control room layout. A push-button control mounted on a 20 ft coil cord and a pre-wired control box with a magnetic starter and overload relay support straightforward operation and electrical protection in demanding environments.
Key safety and operational features include safety velocity fuses that activate if hydraulic line pressure becomes unsafe, an upper travel limit switch that cuts power at maximum raised height, and a perimeter of beveled toe guards with electric toe-guards along the platform. The design prioritizes worker protection during lift, descent, and transport of loads through the dock gap, while the heavy-gauge tread plate deck contributes to stable traction under varying load conditions. The lift is rated for a uniform 10,000 lb capacity, suitable for a range of industrial material handling tasks common to distribution and manufacturing facilities.
This model accommodates standard semi-trailer loading workflows where a dedicated dock is unavailable, supporting efficient material flow in yard or facility environments. The overall frame width is 62 inches, and the system is intended to be used with compatible dock applications where local electrical and structural considerations permit installation. Ensure proper maintenance of hydraulic components and electrical controls according to local codes and manufacturer guidelines to preserve performance and safety over time.
Features:
- Unique design services semi-trailers when loading dock is unavailable
- Tread plate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
- 10,000 lb capacity with 6 ft x 12 ft platform
- Uniform Capacity (lb.):
- 10000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
