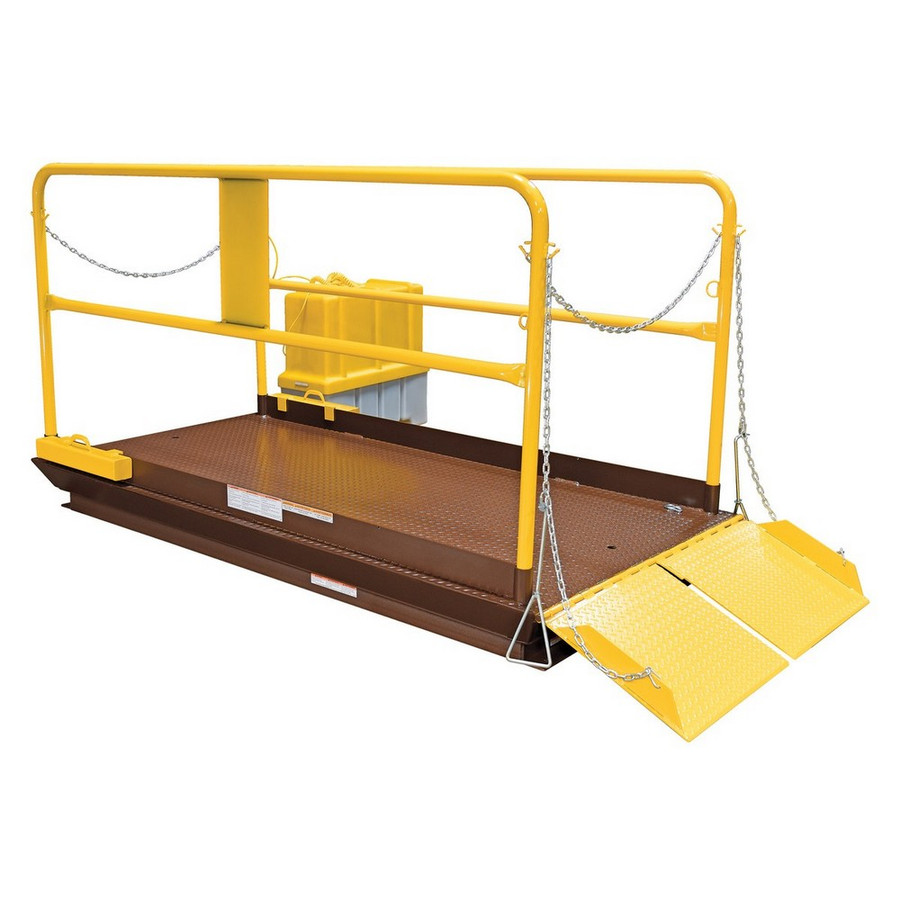

Vestil WL-100-12-88 Steel Premium Truck Scissor Dock Lift is designed to bridge the gap between a loading dock and a semi-trailer, enabling safe and efficient goods handling where permanent docks aren’t available. The unit features a heavy-gauge tread plate deck that provides a non-slip surface for personnel and materials during loading and unloading operations. A hydraulic system equipped with a safety velocity fuse helps guard against unintended cylinder movement in the event of line loss, contributing to safer lift operation. The lift includes an upper travel limit switch to automatically cut power when the platform reaches its maximum raised height, enhancing controlled operation. A 20-foot coil cord powers the push-button control, and a pre-wired control box with a magnetic starter and overload relay supports straightforward installation and reliable performance. High-visibility yellow removable handrails and fixed toe boards around the platform, along with beveled toe-guards and electric toe-guards, help improve perimeter safety during use.
This scissor dock lift is purpose-built for loading and unloading from semi-trailers, particularly in environments without traditional loading docks. With a stated uniform capacity of 12,000 lb and an overall frame width of 86 inches, it is suitable for mid-to-large palletized loads common in warehouse, distribution, and manufacturing settings. The standard external 6.5 HP, 460V, 3-phase, 60 Hz motor can be located up to 8 feet away from the lift, offering flexibility in equipment layout around the dock area. Maintenance considerations include monitoring hydraulic lines and connectors, ensuring the protection devices remain functional, and restricting access to the control station to trained personnel.
Features:
- Unique design services semi-trailers when loading dock is unavailable
- Tread plate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
- 12,000 lb uniform capacity
- 8' x 8' platform footprint
- Uniform Capacity (lb.):
- 12000
- Overall Frame Width (in.):
- 86
- Package Size:
- Each
