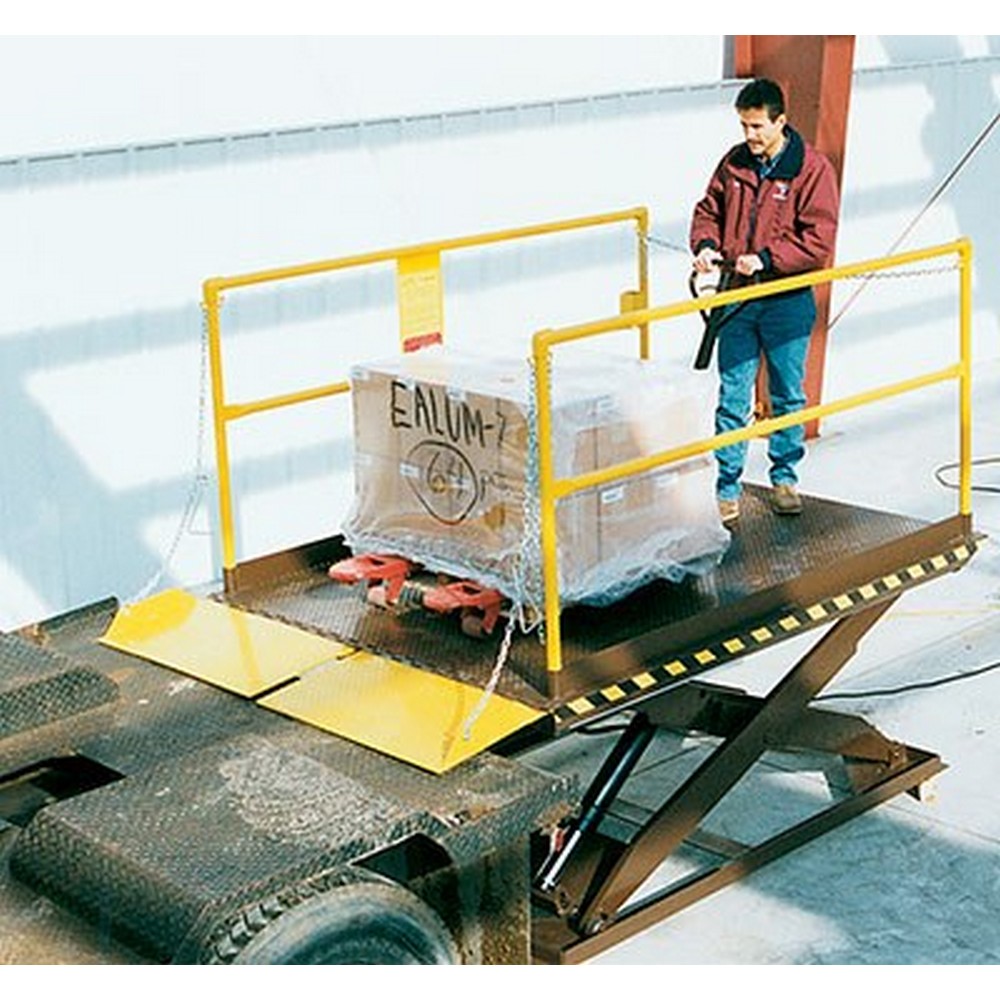

Vestil WL-100-10-610 is a steel premium truck scissor dock lift designed to bridge the gap between the dock and a semi-trailer bed, facilitating safe loading and unloading when a permanent loading dock isn’t available. The unit features a heavy-gauge diamond plate deck to provide a non-slip surface under typical industrial loads and conditions. Its hydraulic system includes a safety velocity fuse to protect the cylinders in the event of line failure, and an upper travel limit switch that automatically cuts power when the platform reaches its maximum raised height, helping to prevent overextension. A 20-foot coil cord with a push-button control and a pre-wired control box containing a magnetic starter and overload relay support straightforward operation and reliable control from a distance.
The lift is equipped with high visibility safety yellow removable handrails and fixed toe boards, along with beveled toe-guards and electric toe-guards around the perimeter for enhanced perimeter protection in busy loading areas. The standard external 6.5 HP, 460V, 3-phase 60 Hz motor can be located up to 8 feet away from the lift, offering some installation flexibility in constrained spaces or where power access isn’t immediately adjacent to the platform. With a uniform 10,000 lb capacity and an overall frame width of 62 inches, this model is suitable for medium-to-heavy palletized loads and typical trailer height variances encountered at many facilities.
This model is intended for use where dock access is limited, providing a controlled, raised loading surface that can align with trailer floors to reduce lifting totals during transfer. Consider site power availability, platform reach, and space for safe walkways and guardrails when planning installation and operation. Maintain awareness of the safety features, including the upper limit switch and hydro-safe controls, to help ensure predictable, controlled cycling during daily use.
Features:
- Serves semi-trailers when dock is unavailable
- Tread plate surface for non-slip grip
- Safety velocity fuses protect hydraulic cylinders
- Upper travel limit switch stops power at max height
- Uniform 10,000 lb capacity
- Steel construction for heavy-duty use
- Uniform Capacity (lb.):
- 10000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
