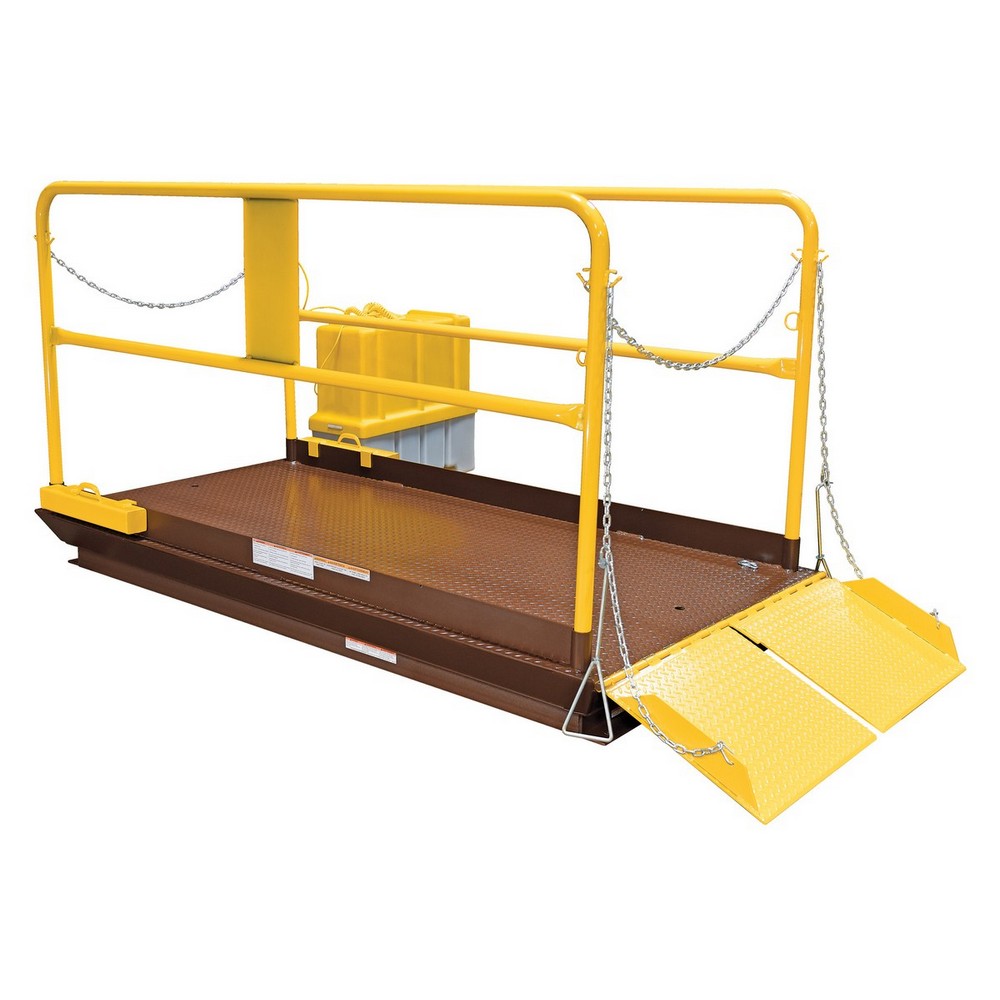

The Vestil WL-100-12-710 is a steel premium truck scissor dock lift designed to bridge semi-trailers and warehouse floors where permanent loading docks aren’t available. With a substantial 12,000 lb capacity and a 7 ft by 10 ft platform, it helps streamline loading and unloading operations by providing a stable, elevated work surface that aligns with trailer decks for safer material transfer.
The unit features a heavy-gauge diamond plate deck for a non-slip surface and a hydraulic system equipped with safety velocity fuses to guard against uncontrolled movement if a line fails. An upper travel limit switch automatically power-cuts at the maximum raised height, enhancing operator safety. The control system is housed in a pre-wired box with a magnetic starter and overload relay, and a 20-foot coil cord provides flexible control access. High-visibility, removable safety handrails with fixed toe boards, plus beveled toe-guards and electric toe-guards around the platform perimeter, are included to help minimize trip hazards and protect personnel during operation.
Practical deployment considerations include mounting proximity to power and trailer access points, since the standard external 6.5 HP, 460V, 3-phase, 60 Hz motor can be located up to 8 feet from the lift. The overall frame width is 62 inches, and the unit ships as a complete package designed for semi-trailer loading scenarios where dock infrastructure is absent or temporary. Operators should verify electrical supply compatibility and ensure adequate space for safe operation around the lifted platform.
Features:
- Tread plate surface provides non-slip grip
- Safety velocity fuses protect hydraulic cylinders
- Upper travel limit switch stops power at max height
- Unique design supports semi-trailers when dock access is unavailable
- 12,000 lb capacity
- Overall frame width 62 inches
- Uniform Capacity (lb.):
- 12000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
