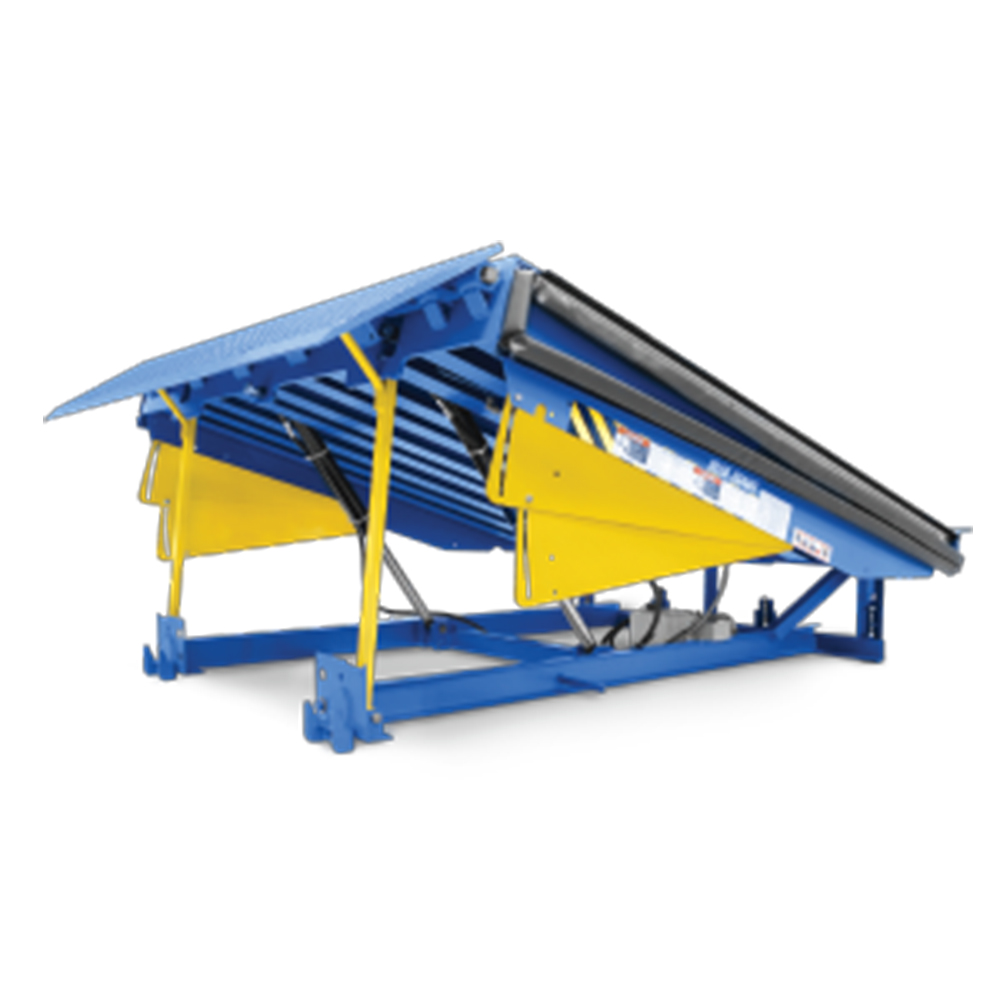

The Blue Giant HU6608-45 Hydraulic Dock Leveler is a heavy-duty loading dock solution designed to bridge the gap between dock and trailer with a controlled hydraulic deck lift. This model delivers operation at the touch of a button, supporting efficient handling at busy loading yards while maintaining robust structural integrity through strategically welded high-tensile U-beam members and a high-tensile steel deck and lip. The 6'6" by 8' nominal deck size, 45,000 lb static capacity, and a 16" long beveled lip provide a stable platform for varied palletized loads and equipment handling, while the hydraulic system helps reduce manual effort and maintenance needs compared with traditional mechanical units.
Key construction features include an independent lip option (with the Blue Genius® Touch Control Panel required for the feature), a self-contained 1 HP power pack mounted under the deck, and a fixed rear hinge with 4" lateral ramp flex to accommodate non-level trailer beds. The unit is equipped with safety-focused details such as toe guards painted safety yellow, a velocity fuse hydraulic fall-safe, an inverted hydraulic loading dock deck cylinder that self-purges air, and NEMA4X/IP65 rated control station for harsh environments. Optional and standard bumper configurations, along with a tapered lip on certain widths, support compatibility with diverse dock configurations and trailer profiles.
This model is suited to facilities needing reliable, ergonomic hydraulic operation to improve throughput at the dock. When selecting and sizing, consider the nominal deck dimensions and static capacity in relation to typical loads, as well as the control station and lip options. Packaging is unit-based, with the specification indicating a single unit per package. Maintenance should address hydraulic system health and periodic inspection of the self-purging deck cylinder to ensure continued smooth operation.
Features:
- Increased Safety at the Loading Dock
- Ergonomic Hydraulic Operation
- Fixed rear hinge with 4" lateral ramp flex for non-level trailer beds
- 12" above / 12" below dock operating range
- High-tensile steel deck & lip with 16" lip
- Self-contained 1 HP hydraulic power pack
- Single push button SP1 control station
- Nominal Deck Size:
- 6"6" X 8'
- Static Capacity:
- 45000 lbs
- Package Size:
- Each
