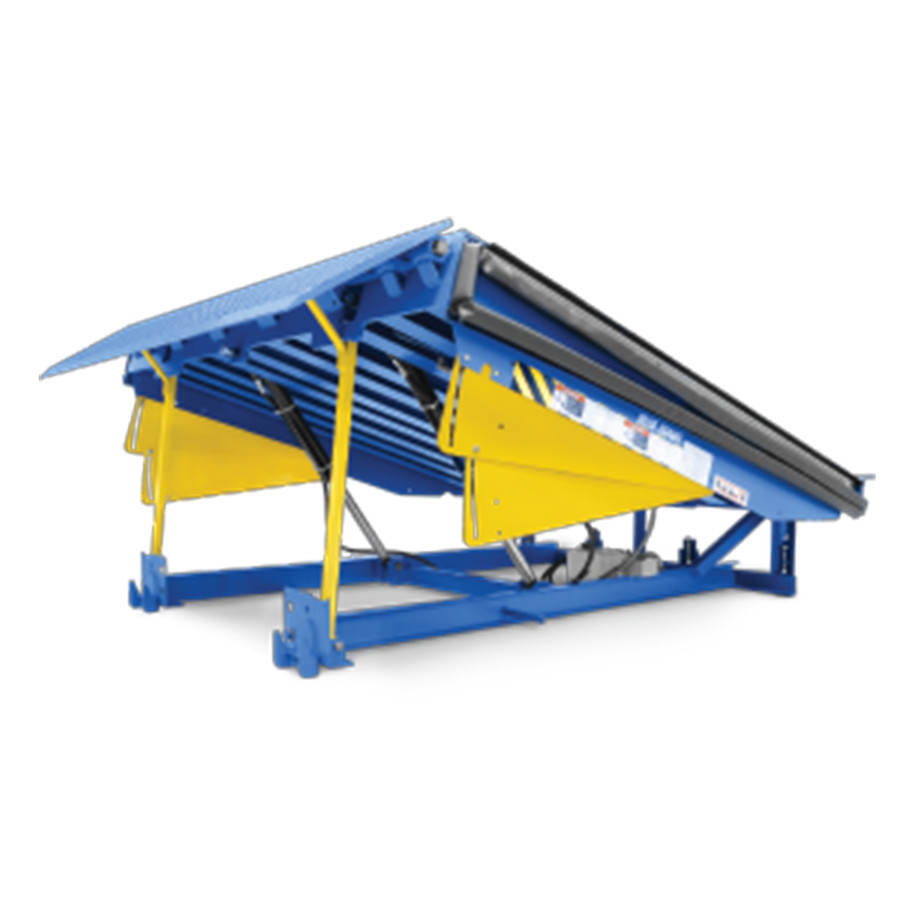

Blue Giant HU6008-45 Hydraulic Dock Leveler 6' x 8' 45000 lb Capacity

Blue Giant HU6008-45 Hydraulic Dock Leveler provides a robust, button-operated solution for elevating and aligning dock loads with the push of a control station. This model is designed for heavy-duty material handling environments, combining hydraulic deck and lip cylinders with a structurally reinforced deck supported by high-tensile steel U-beams to withstand demanding loading cycles. The unit includes a 16-inch beveled lip and a fixed rear hinge with lateral ramp flex to accommodate non-level trailer beds, helping to maintain a smooth transition for pallets and equipment at the dock. The integrated power pack is mounted under the deck, with voltage specification to be provided, contributing to a compact, self-contained system that reduces external hardware requirements.

Key construction features emphasize reliability and maintenance simplicity. The topline construction uses high-tensile steel in both deck and lip, while the safety framework includes full-length toe guards painted in safety yellow, velocity fuse fall protection, and a self-purging inverted hydraulic deck cylinder. The control interface is a single push-button station (SP1) with a constant-pressure UP action, and the station itself is rated for harsh environments (NEMA4X/IP65). Optional independent lip control is available for models requiring tighter cycle times and energy use—Blue Genius Touch Control Panel required—and aligns with the overall goal of reducing operating costs compared with traditional mechanical units.

This 6' x 8' dock leveler is designed for applications at busy loading docks that demand high static capacity (listed at 45,000 lbs) and reliable operation across a full working range. The assembly includes standard laminated bumpers, compatible with 6' and 6'6" wide configurations, and is shipped as a single unit. Users should verify electrical voltage for the under-deck power pack and confirm compatibility with their dock opening width and trailer bed profiles to ensure a proper fit and safe operation.

Features:

• Increased Safety at the Loading Dock
• Ergonomic Hydraulic Operation
• Fixed rear hinge with 4" lateral ramp flex
• Wide working range: 12" above and 12" below dock level
• Structural deck: high-tensile U-beam members
• High-tensile steel deck and 16" beveled lip
• Single push-button SP1 control station (I-UP)
