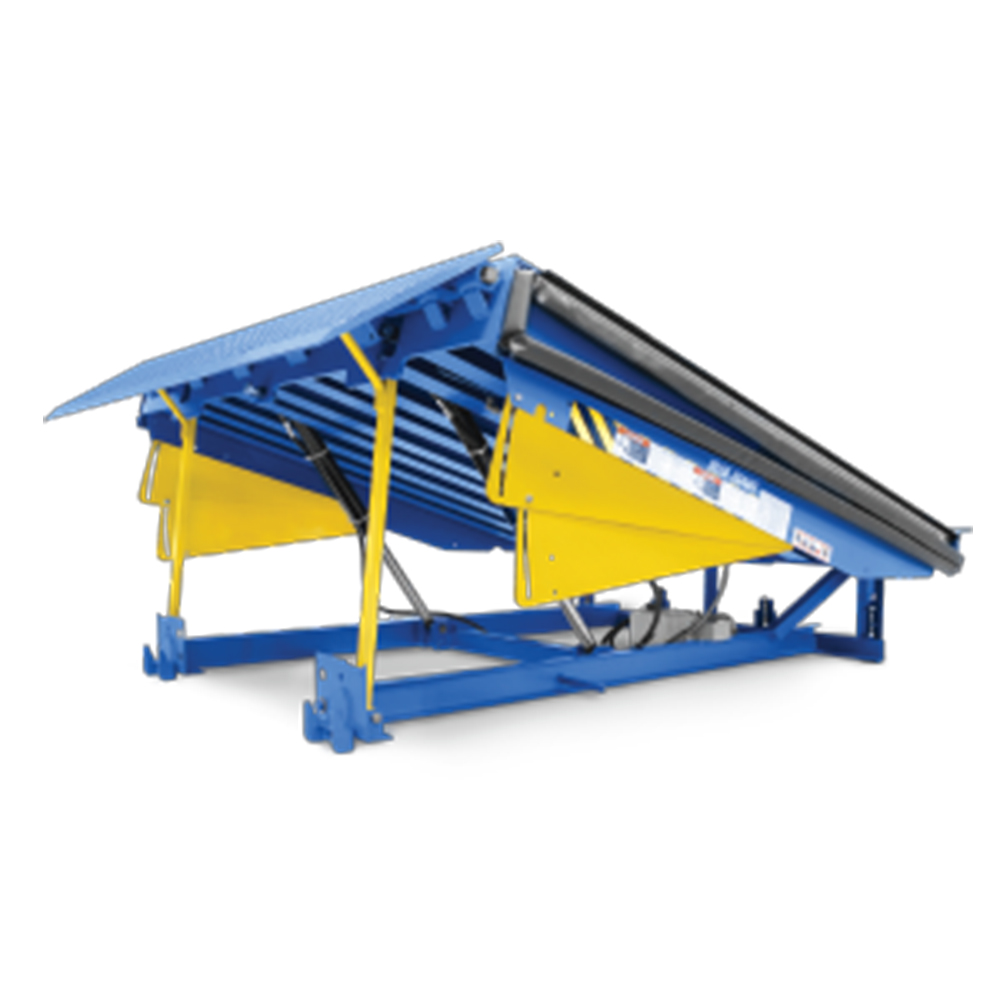

The Blue Giant HU6006-45 Hydraulic Dock Leveler is a high-performance loading dock solution designed to streamline palletized material handling with the press of a button. Built for longevity and reliability, this unit features a hydraulically operated deck and lip to improve operating efficiency and reduce maintenance needs relative to mechanical systems. Its rugged construction includes welded enhanced J-beams and high-tensile steel deck and lip to support demanding distributions operations, while a 16" (406 mm) long, beveled lip provides a smooth transition for pallets and equipment onto the dock surface.
Key safety and usability characteristics are integrated into the design, including a fixed rear hinge with 4" (101 mm) lateral ramp flex to accommodate non-level trailer beds, a full working range of 12" (305 mm) above and 12" (305 mm) below dock level, and a hydraulic fall-safe velocity fuse. The system is controlled via a single push-button station (model SP1) that raises an independently powered dock leveler, with the control panel housed in a NEMA4X/IP65 rated enclosure for durability in harsh dock environments. A self-contained TENV 1 HP power pack, mounted under the deck (specify voltage), powers the operation for compact installation and straightforward service.
Designed for use in warehouses and distribution centers that require robust, low-maintenance dock equipment, this model employs two laminated bumpers (DB411 or DB411WB, depending on width) to protect the dock edge and improve impact resistance. The combination of hydraulic operation, independent lip control option, and a reliable safety lineup makes this leveler suitable for frequent load changes, non-uniform dock surfaces, and varying trailer heights while maintaining efficient cycle times.
Features:
- Increased safety at loading dock with integrated safety features
- Ergonomic hydraulic operation for smooth handling
- Fixed rear hinge with ramp flex to accommodate non-level trailer beds
- Wide working range: 12 inches above and below dock level
- High-tensile steel deck and lip for durability
- 16 inch lip with bevel for pallet entry
- Self-contained hydraulic power pack with a single push button control
- Nominal Deck Size:
- 6' x 6'
- Static Capacity:
- 45000 lbs
- Package Size:
- Each
