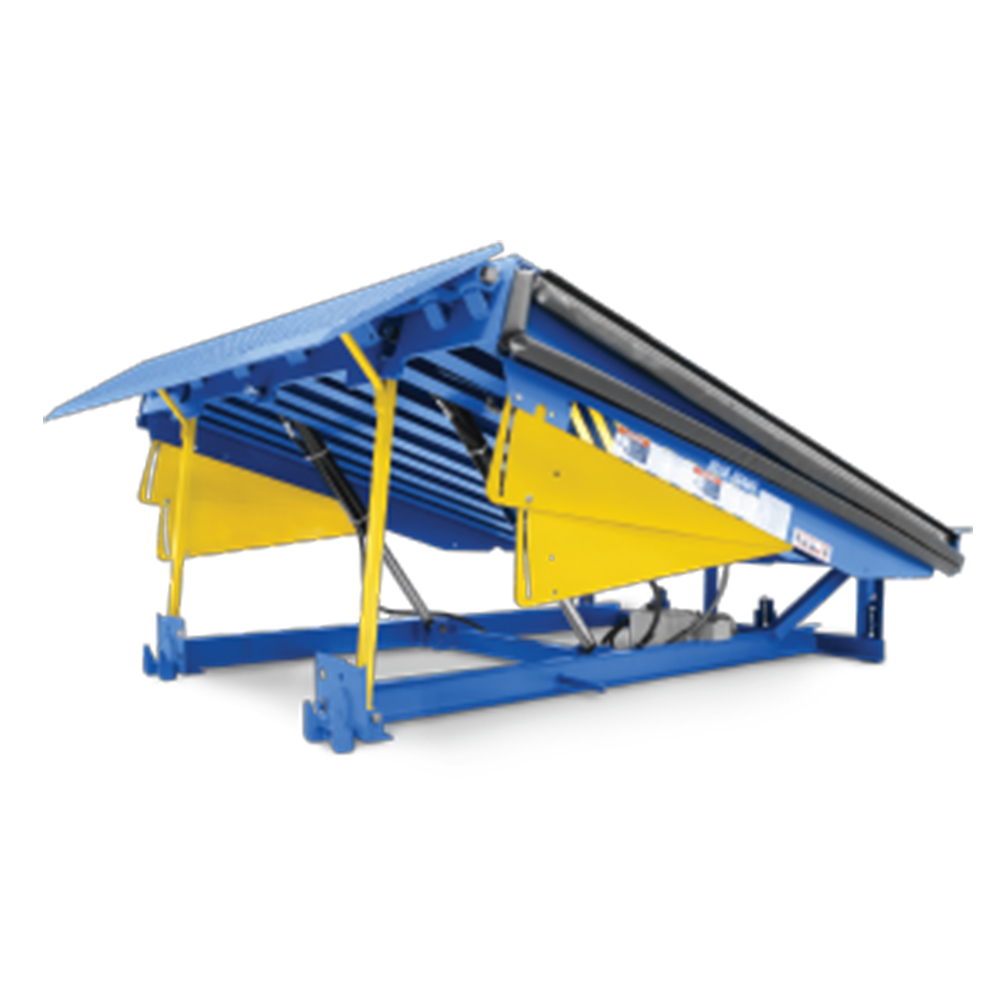

The Blue Giant HU6010-45 hydraulic dock leveler is a high-capacity loading dock solution designed to bridge varying trailer and dock levels with a reliable, button-activated operation. This 6' x 10' unit supports up to 45,000 pounds static capacity, making it suitable for heavy palletized loads and rugged industrial environments. Its hydraulic deck and lip cylinders are intended to deliver smoother operation and lower maintenance relative to mechanical systems, contributing to lower ownership costs over time.
Construction features include a robust deck supported by a minimum of six high-tensile solid steel U-beam members and a high-tensile steel deck and lip, with a 16-inch long lip that is tapered on some widths. A fixed rear hinge allows for a 4-inch lateral ramp flex to accommodate non-level trailer beds, while the unit offers a full operating range extending approximately 12 inches above and 12 inches below dock level. The system is equipped with safety-focused components such as beveled lip, full operating range toe guards painted safety yellow, hydraulic velocity fuse fall-safety, and an inverted deck cylinder that self-purges air. The control interface is a single push-button station (model SP1), with a NEMA 4X/IP65-rated enclosure for dependable outdoor or harsh indoor environments.
Designed for use in demanding material-handling contexts, this leveler integrates with Blue Giant’s self-contained power pack mounted under the deck and provides independent lip control as an option. Typical applications include loading docks in manufacturing or distribution settings where heavy loads must be raised to align with raised docks, while independent lip control can help optimize cycle times and energy use when paired with the appropriate control panel. Consider sizing and compatibility with your dock face and trailer bed, as well as maintenance access to the power pack and hydraulic components when planning installation.
Features:
- Increased Safety at the Loading Dock
- Ergonomic Hydraulic Operation
- Fixed rear hinge with 4" lateral ramp flex for non-level trailer beds
- Working range: 12" above to 12" below dock level
- High-tensile steel deck with six U-beam members
- 16" long lip with taper on 7' wide models
- Self-contained 1 HP power pack under deck
- Nominal Deck Size:
- 6' X 10'
- Static Capacity:
- 45000 lbs
- Package Size:
- Each
