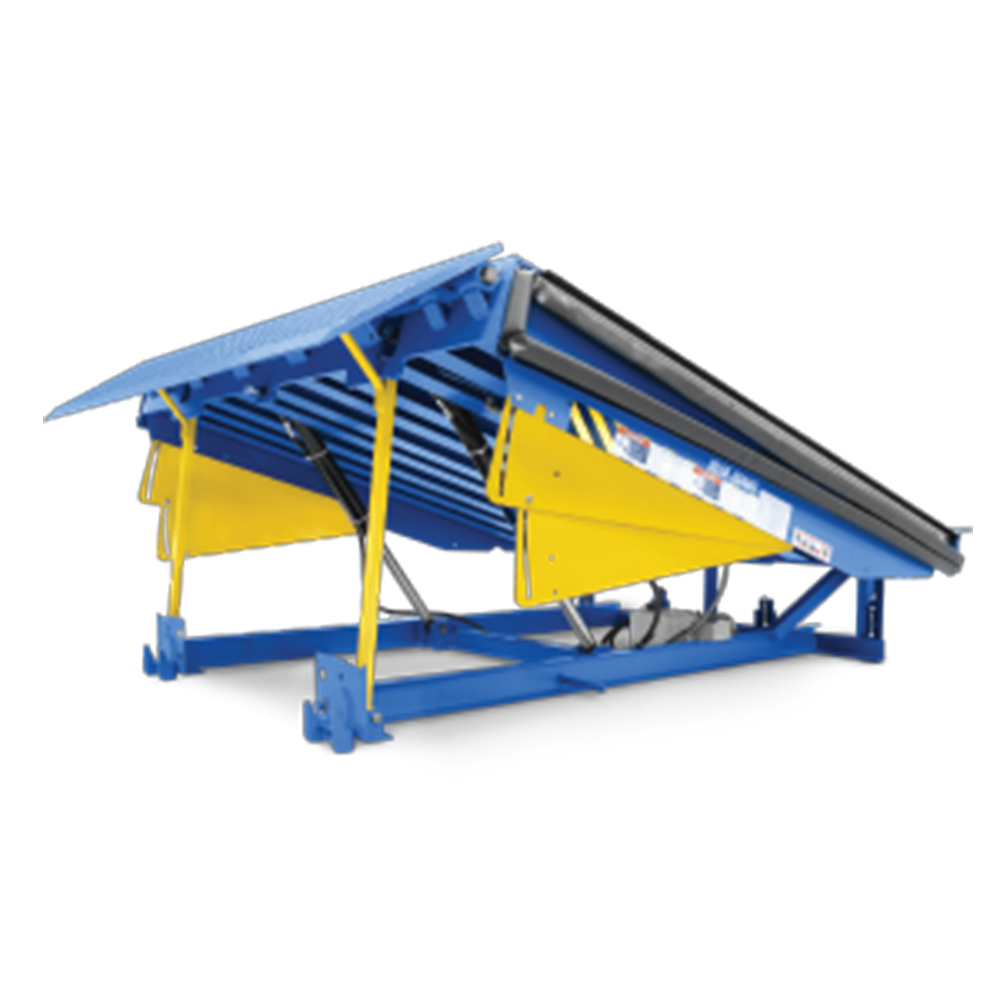

Blue Giant HU7006-45 Hydraulic Dock Leveler provides reliable, button-activated operation for efficient dock handling. This 7' x 6' leveler is designed to support heavy loads with a static capacity of 45,000 lbs, making it suitable for high-throughput loading environments. The system uses hydraulic deck and lip cylinders to optimize operation and reduce maintenance, contributing to a lower cost of ownership compared with mechanical dock levelers. A fixed rear hinge and 4" lateral ramp flex help compensate for non-level trailer beds, improving safety and ramp usability across a range of dock conditions.
Construction features include a structural deck supported by a minimum of six high-tensile solid steel U-beam members, a high-tensile steel deck and lip, and a 16" long lip (lip is tapered on 7' wide models) with a beveled lip for smoother vessel entry. The unit is powered by a self-contained 1 HP hydraulic pack mounted under the deck (voltage specified during order), and it employs a velocity fuse fall-safe hydraulic system as part of its safety envelope. A single push-button control station (SP1) provides UP control via a constant-pressure button, and the control station is rated for harsh environments (NEMA4X/IP65).
For dock-facing safety and durability, the leveler ships with laminated bumpers (DB411 family variants) appropriate to the deck width, V-grooved maintenance struts, and full-range toe guards painted safety yellow. The design supports an operating range extending roughly 12" above and 12" below dock level, aiding versatility across varying trailer heights. This unit’s configuration and components are intended for facilities prioritizing robust, hydraulically powered loading capabilities with independent lip control options available when paired with the Blue Genius touch control panel.
Features:
- Increased Safety at the Loading Dock
- Ergonomic Hydraulic Operation
- Fixed rear hinge with 4" lateral ramp flex for non-level trailer beds
- Full operating range: 12" above and 12" below dock level
- High-tensile steel deck & lip with 16" long lip
- Single push button SP1 control station, NEMA4X/IP65 rated
- Self-contained TENV 1 HP power pack
- Nominal Deck Size:
- 7' X 6'
- Static Capacity:
- 45000 lbs
- Package Size:
- Each
