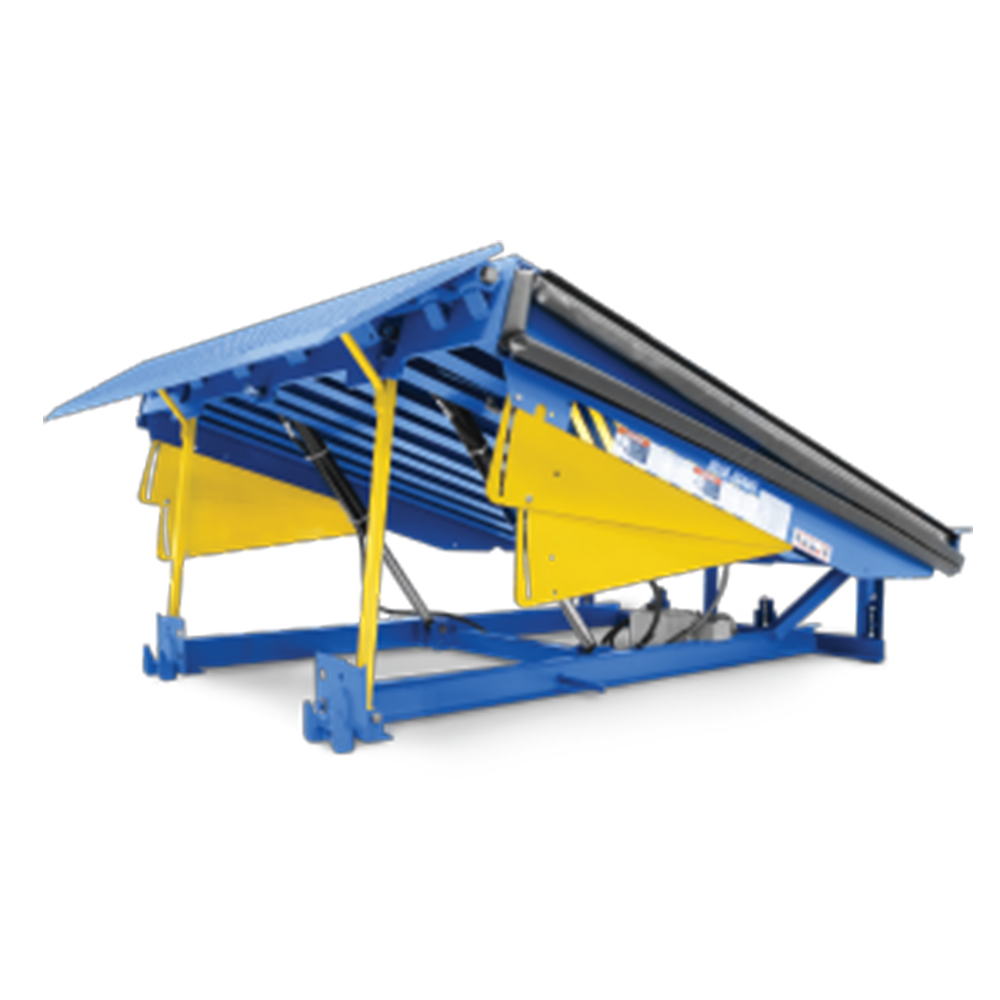

Blue Giant’s hydraulic dock leveler model BGHU6010-35 is a heavy-duty loading dock solution designed to bridge gaps between trailers and your dock floor with the push of a button. This 6' by 10' deck offers a substantial working surface for palletized loads and equipment, supported by a static rating of 35,000 lb to handle high-volume material handling environments. The unit’s hydraulic deck and lip cylinders are engineered to deliver smooth, reliable operation while reducing maintenance compared to mechanical systems, contributing to a lower total cost of ownership over time. A fixed rear hinge with a 4" (101 mm) lateral ramp flex helps compensate for non-level trailer beds, improving contact and stability during lift and lower cycles. The system uses a self-contained TENV 1 HP power pack mounted under the deck, with the option to specify voltage to match facility electrical needs.
Constructed for durability, the leveler employs high-tensile steel deck and lip, and a minimum of six high-tensile solid steel U-beam members provide the structural backbone. The deck lip is 16" long and features a beveled edge for safer entry of pallets and loads. A NEMA4X/IP65-rated single push-button control station (model SP1) allows independent control of the leveler, and standard safety features include velocity fuse-based fall protection and full-coverage toe guards painted in safety yellow to alert workers to the hazard zone. The design accommodates optional independent lip control (Blue Genius® Touch Control Panel required) to optimize cycle times and energy use, further enhancing dock productivity.
This model is specified for a 6' wide dock opening with the 6' x 10' nominal deck and 35,000 lb static capacity. It ships as a complete unit with the included bumpers configured for 6' or 6'6" wide installations, and the lip is tapered on certain widths per model. For best results, verify the electrical supply, mounting footprint, and bumper compatibility with your dock structure during specification and installation checks.
Features:
- Increased safety at the loading dock
- Ergonomic hydraulic operation
- Fixed rear hinge with 4" lateral ramp flex for non-level trailers
- Working range of 12" above and 12" below dock level
- High-tensile steel deck with six U-beam supports
- 16" long beveled lip (lip tapered on 7' wide models)
- Single push-button control station (SP1) with constant-pressure UP operation
- NEMA4X/IP65 rated control station
- Nominal Deck Size:
- 6' X 10'
- Static Capacity:
- 35000 lbs
- Package Size:
- Each
