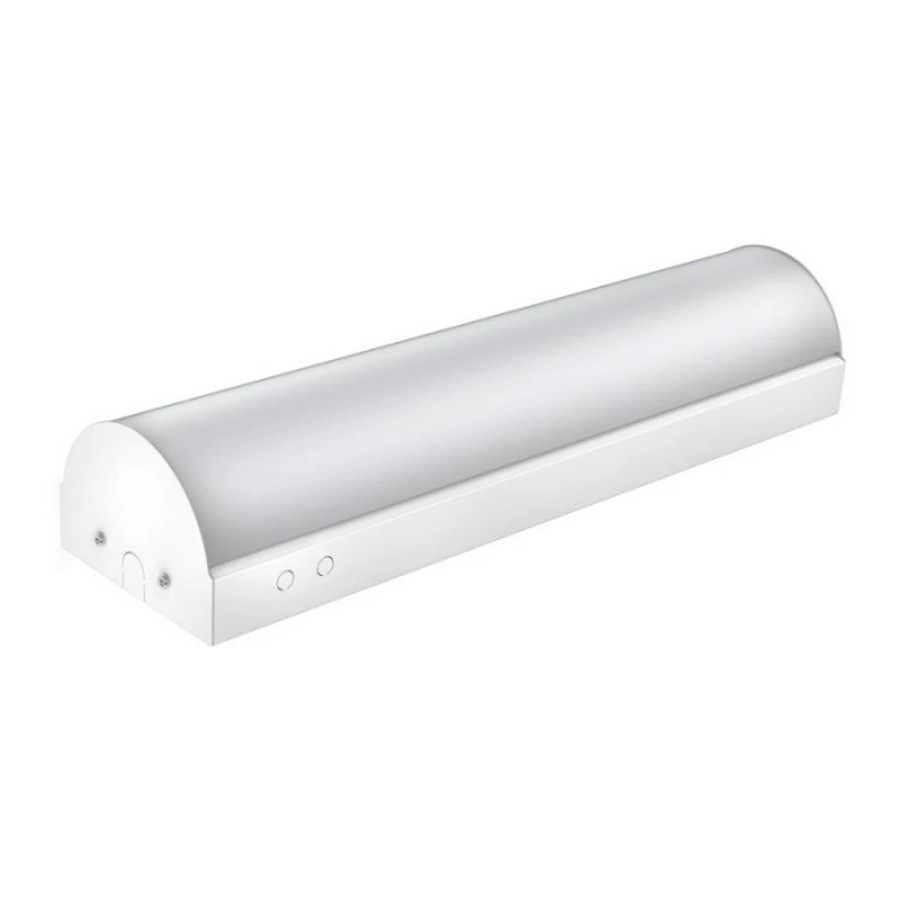

The Light Efficient Design RPT-P-LIVC-G2-4FT-20L-840-FWFC-R-S1 is a 4-foot LED stairwell fixture designed to replace traditional multiple-lamp luminaires with a single, long-lasting unit. It operates on 120–277 V and offers 0–10 V dimming, giving you flexibility to adjust brightness for varying occupancy and daylight conditions. The fixture uses FlexWatt and FlexColor technology, providing selectable wattage (10, 15, 20, or 30 W) to achieve a range of lumen outputs—from roughly 1,365 to 5,120 lumens—while offering three color-temperature options (CCT select: warm 3000 K, warm-neutral 3500 K, and neutral 4000 K) via a diode-board switch. This combination supports energy efficiency and adaptable light quality in stairwells or corridors where consistent, low-glare illumination is important.
Constructed with a rugged 22-gauge white powder-coated housing and an extra-wide 6-inch footprint, the unit is designed to align with existing fixture footprints and simplify retrofits. It features tool-free assembly and disassembly and quick-disconnect wiring for straightforward installation and maintenance. The fixture is rated for up to 100,000 hours of service, which helps minimize replacement intervals in high-use stairwells while maintaining stable color and lumen output when configured to the desired wattage and CCT.
This fixture supports continuous runs through linkable connections, enabling seamless long-run lighting in stairwells, hallways, and egress areas common to commercial and institutional settings. The product is specified with a 48-inch form factor, providing a compact yet wide coverage that can replace multiple legacy fixtures. When planning installation, note the selectable wattage and CCT require access to the diode-board switch and the appropriate wiring to support 0–10 V dimming and 120–277 V operation.
Features:
- 120-277V operation
- 0-10V dimmable
- Wattage selectable: 10, 15, 20 or 30W options for 1,365–5,120 lumens
- CCT-selectable: 3000K, 3500K, 4000K
- Linkable for continuous runs
- Extra-wide 6" width to cover old footprints
- Tool-free assembly/disassembly
- Rugged 22 gauge white powder-coated housing
- Quick disconnect for easy wiring
- 100,000 hour rated life
- Brand:
- Light Efficient Design
- DLC Product ID:
- P5QTN26X
- Manufacturer Part Number:
- RPT-P-LIVC-G2-4FT-20L-840-FWFC-R-S1
- UPC:
- 844006010935
- Lumens:
- 5,120 Lumens
- Lumens Per Watt:
- 128
- Wattage:
- 40 Watts
- Input Voltage:
- 120-277V
- Dimmable:
- 0-10V
- Color Temperature:
- 3000K, 3500K, 4000K
- Rated Hours:
- 100,000 Hours
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Wattage Selectable
- Length:
- 46
- Width:
- 6
- Height:
- 4.2
- Package Size:
- Each
