Light Efficient Design RPT-P-LIVC-G2-3FT-20L-840-FWFC-OCC-R-S1 36" LED Stairwell Fixture - Occupancy Sensor - CCT Selectable - 120-277V

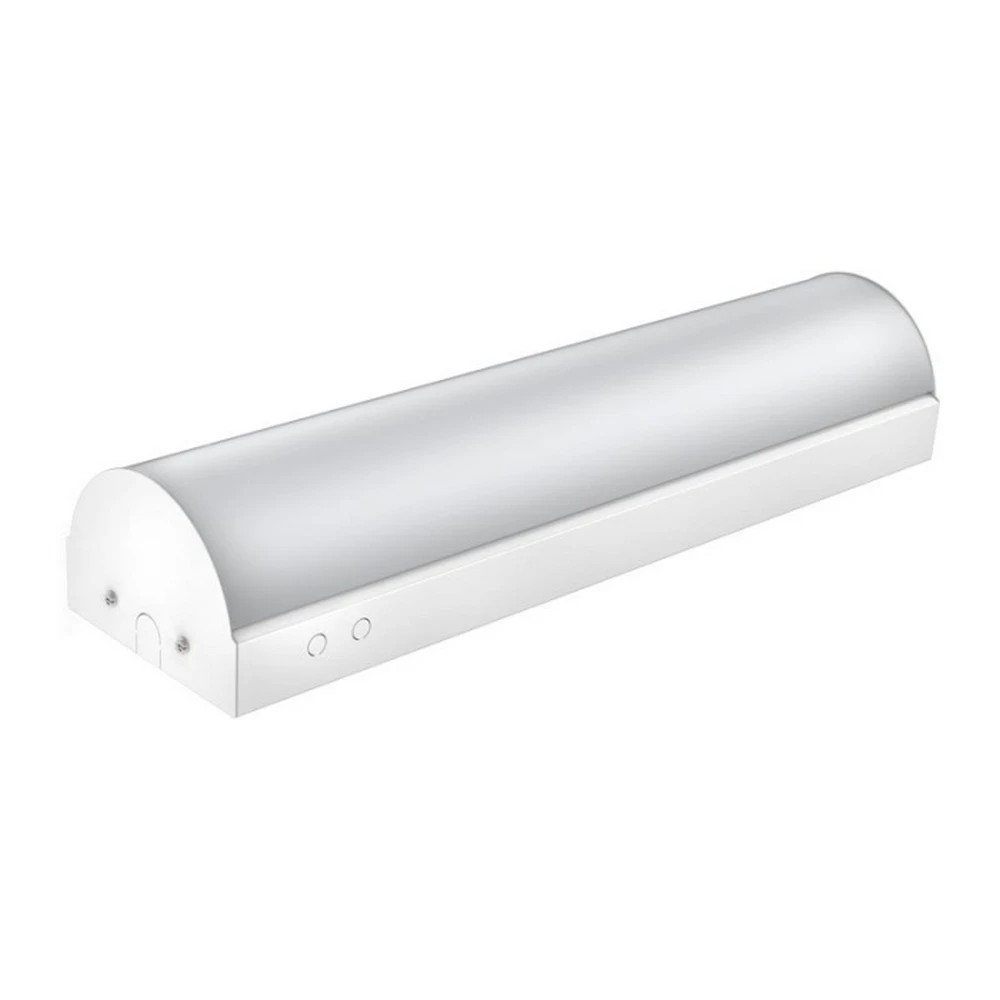

The Light Efficient Design RPT-P-LIVC-G2-3FT-20L-840-FWFC-OCC-R-S1 is a 36-inch LED stairwell luminaire designed to replace traditional multi-fixture footprints with a single, continuous unit. Its high-efficiency LED array delivers up to 3,750 lumens at a 30-watt configuration, with 120-277V operation and 0-10V dimming to support flexible building lighting control schemes. The fixture offers wattage and color temperature selectable options, allowing quick on-site adjustments between 10, 15, 20, or 30 watt outputs and 3000 K, 3500 K, or 4000 K CCT to match space requirements and occupant comfort, all via the diode board switch. An integrated occupancy sensor adds automatic shutoff or dimming behavior to reduce energy use in unoccupied periods, and the sensor supports daylight hold-off for further efficiency. The fixture is designed for continuous runs by linking multiple units and features a rugged 22-gauge white powder-coated housing with tool-free assembly for straightforward installation and maintenance. It also includes a quick-disconnect wiring system and a broad 6-inch width to align with common stairwell footprints, helping to minimize retrofit complexity and gaps in coverage.

In practical use, this fixture suits stairwells, corridors, and low-to-mid bay areas where reliable, glare-conscious illumination is needed without frequent maintenance. The OCC version adds occupancy sensing directly within the unit, reducing the need for separate sensor controls and enabling automatic lumen and power adjustments based on presence. The 100,000-hour rated life supports long service intervals, while the 100-volt to 277-volt compatibility and selectable CCT provide versatility for a variety of retrofit projects. Sizing, mounting, and wiring are simplified by its quick disconnects and the option to mount behind a lens, though installation should follow local electrical codes and the manufacturer’s guidelines. This model ships as a single unit per package.

Features:

• 120-277V operation
• 0-10V dimmable
• Wattage selectable: 10/15/20/30W (1,240–3,750 lumens)
• CCT-selectable: 3000K, 3500K, 4000K
• Integrated occupancy sensor with daylight hold-off
• Linkable for continuous runs

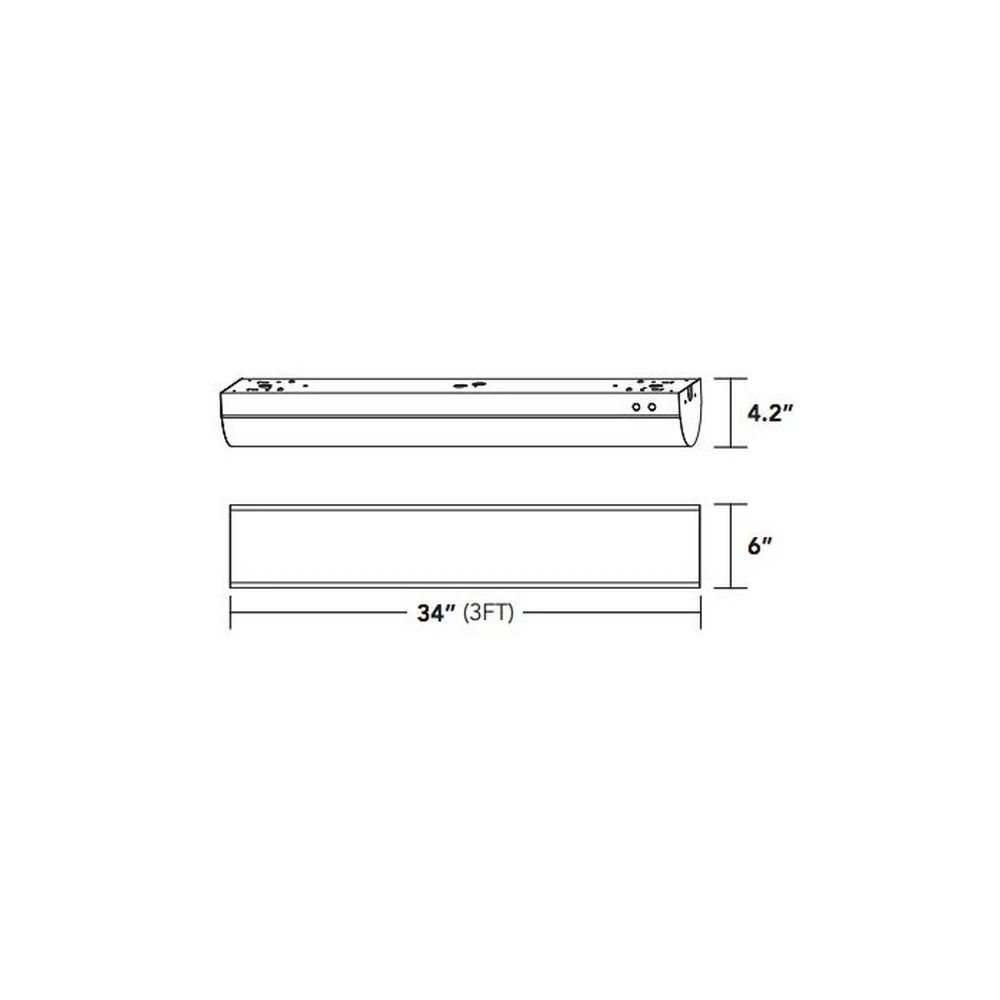

• Extra-wide 6" body for old fixture footprint coverage
