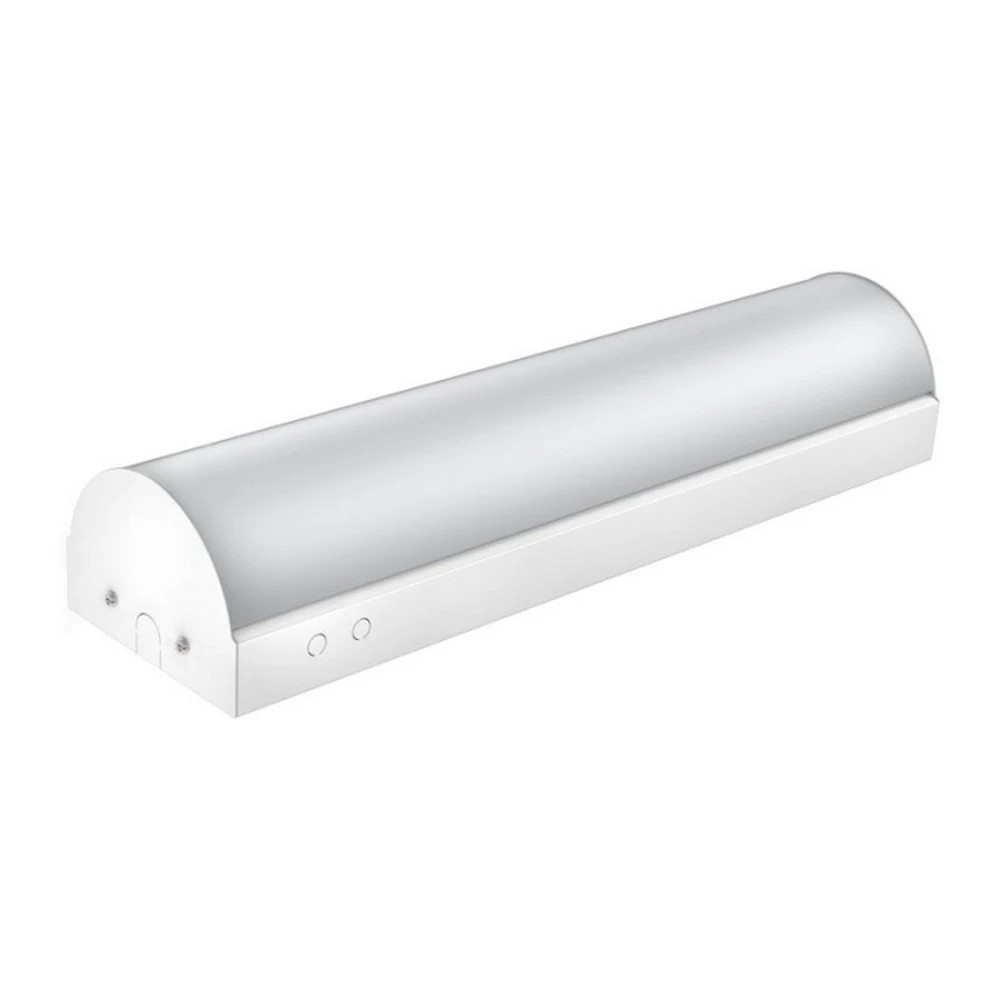

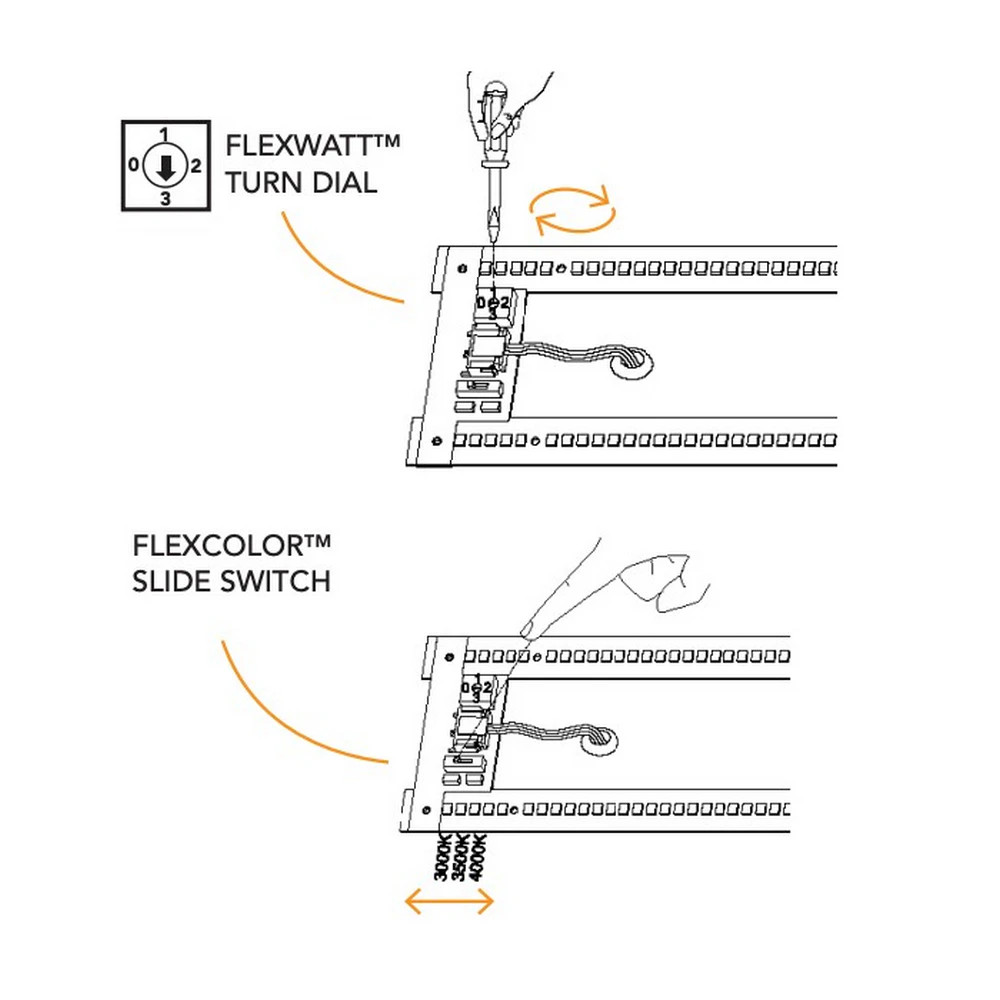

The Light Efficient Design RPT-P-LIVC-G2-4FT-20L-840-FWFC-OCC-R-S1 is a 4-foot LED stairwell fixture designed to replace traditional fluorescent luminaires with a compact, integrated solution. It delivers up to 5,120 lumens at 40 watts and supports 120–277 V operation, making it suitable for a range of wiring configurations. The unit combines FlexWatt and FlexColor technology to provide selectable power and color temperature, enabling users to switch among 10/15/20/30 W outputs and 3000K, 3500K, or 4000K CCT as needed. An integrated occupancy sensor adds automatic control, with factory defaults that emphasize motion detection and delayed dimming rather than immediate off, contributing to energy savings in low-occupancy spaces. The fixture is offered with an occupancy-capable circuit while allowing future adjustment via a remote control if purchased separately.
Constructed with a rugged 22-gauge white powder-coated housing, the fixture supports easy field service through tool-free assembly and quick disconnect wiring. Its extra-wide 6-inch footprint is designed to cover the footprint of many legacy fixtures, reducing retrofit complexity in stairwells or hallways. The LED system is rated for a long service life, with a claimed 100,000-hour lifespan, helping minimize maintenance intervals in high-traffic areas.
This model is compatible with continuous runs when linked with other units and is designed for applications where stairwells or egress corridors require reliable, uniform illumination with adjustable color temperature and wattage. The product is specified as a 46-inch-long, 6-inch-wide, 4.2-inch-deep fixture, and is supplied with a single unit per package. For installation and sensitivity adjustments beyond factory defaults, a remote controller (sold separately) can be used to tailor occupancy and dimming settings to site needs.
Features:
- 120-277V operation
- 0-10V dimmable
- Wattage selectable: 10/15/20/30W options for 1,365–5,120 lumens
- CCT-selectable: 3000K, 3500K, 4000K
- Integrated occupancy sensor with high/low motion and daylight hold-off
- Linkable for continuous runs
- Rugged 22 gauge white powder-coated housing
- Brand:
- Light Efficient Design
- DLC Product ID:
- P5QTN26X
- Manufacturer Part Number:
- RPT-P-LIVC-G2-4FT-20L-840-FWFC-OCC-R-S1
- UPC:
- 844006010966
- Lumens:
- 5,120 Lumens
- Lumens Per Watt:
- 128
- Wattage:
- 40 Watts
- Input Voltage:
- 120-277V
- Dimmable:
- 0-10V
- Color Temperature:
- 3000K, 3500K, 4000K
- Rated Hours:
- 100,000 Hours
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Occupancy Sensor Installed, Wattage Selectable
- Length:
- 46
- Width:
- 6
- Height:
- 4.2
- Package Size:
- Each
