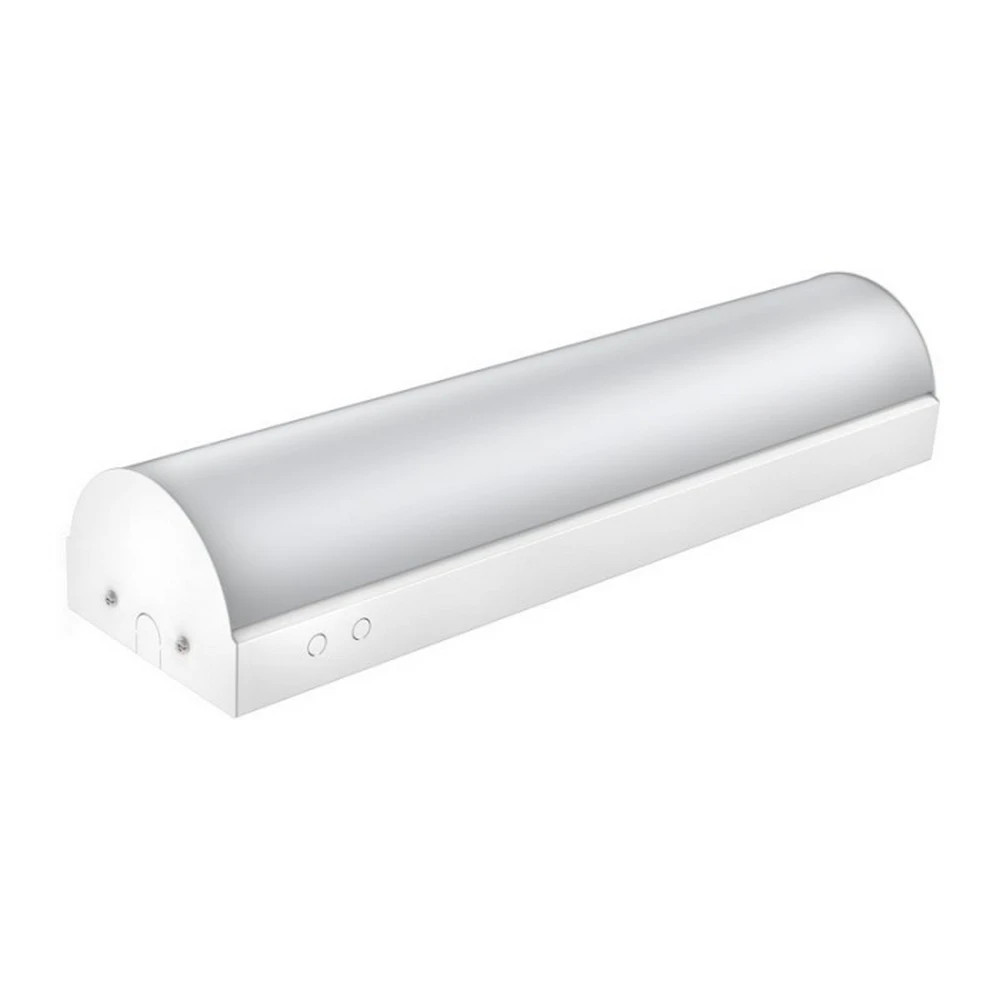

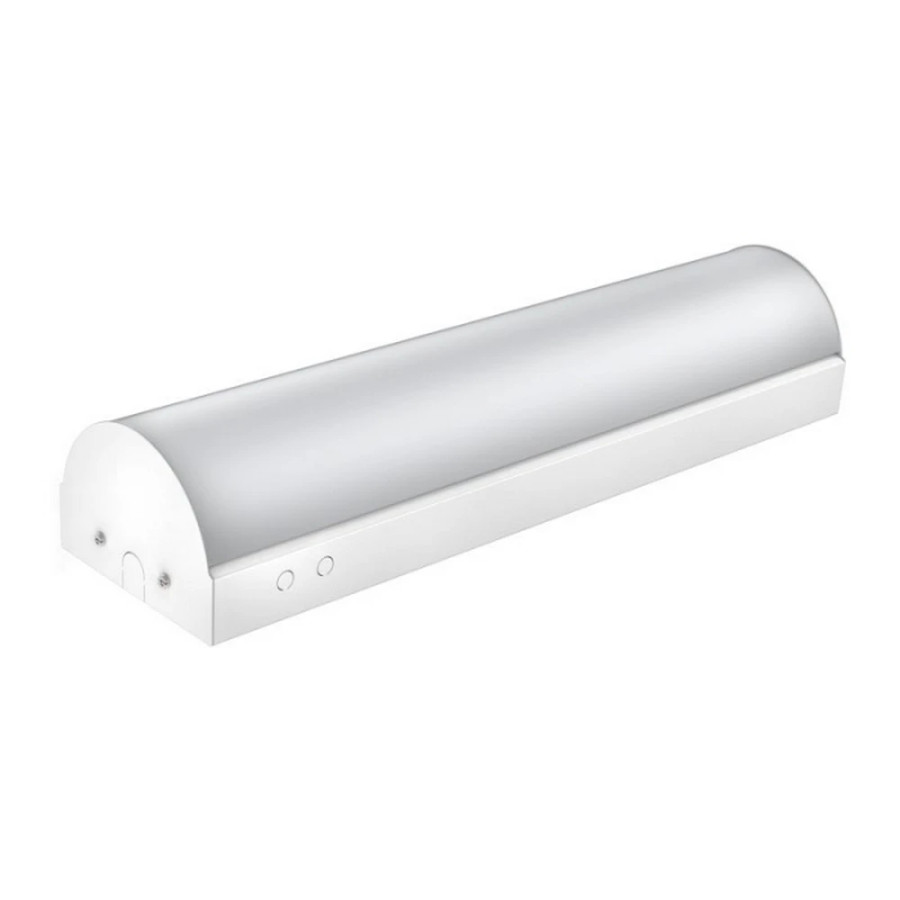

Light Efficient Design RPT-P-LIVC-G2-2FT-20L-840-FWFC-R-S1 24" LED Stairwell Fixture - CCT Selectable - 120-277V

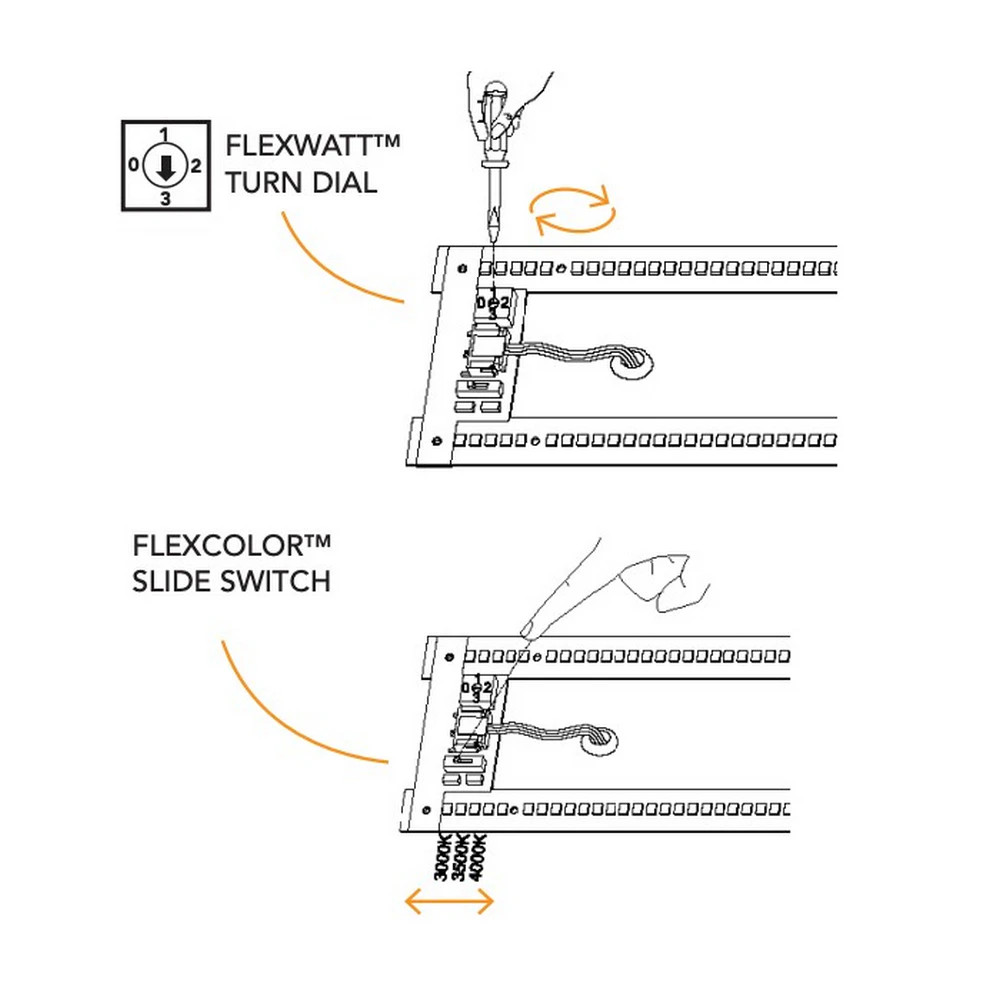

The Light Efficient Design RPT-P-LIVC-G2-2FT-20L-840-FWFC-R-S1 is a 24-inch LED stairwell luminaire designed to replace legacy fixtures with a compact, low-profile form factor while delivering configurable light output and color. Featuring FlexWatt and FlexColor technology, this fixture can be configured on site to operate at different wattages (10, 15, 20, or 30 watts) and to emit light in multiple color temperatures (3000K, 3500K, or 4000K). Built with a rugged 22-gauge white powder-coated housing and a wide 6-inch footprint, it is designed to cover existing fixture footprints and to simplify alignment in stairwell or egress applications. The unit supports tool-free assembly and disassembly, and incorporates a quick disconnect for straightforward wiring, which can reduce installation time and serviceability while maintaining a clean, continuous look in runs when linked with other units.

With a rated life of 100,000 hours and 125 lumens per watt, the fixture delivers up to 3,750 lumens at its maximum configuration, producing bright, uniform illumination suitable for stairwells, corridors, and other vertical circulation spaces. The product is 0-10V dimmable, enabling continuous daylighting control compatible with standard lighting controls and building management systems. The selectable wattage and CCT options provide flexibility to optimize energy use and visual comfort based on space requirements, while the 120-277V input broadens electrical compatibility across commercial buildings. This fixture’s build quality and features support scalable installations where continuous rows are desired, reducing gaps and ensuring consistent lighting along stairwells and egress routes.

Features:

• 120-277V operation
• 0-10V dimmable
• Wattage selectable: 10/15/20/30W for 1,240–3,750 lumens
• CCT-selectable: 3000K, 3500K, 4000K
• Linkable for continuous runs
• Extra-wide 6" width to cover old footprints
• Tool-free assembly and disassembly
• Rugged 22 gauge white powder-coated housing
• Quick disconnect wiring
• 100,000 hour rated life
