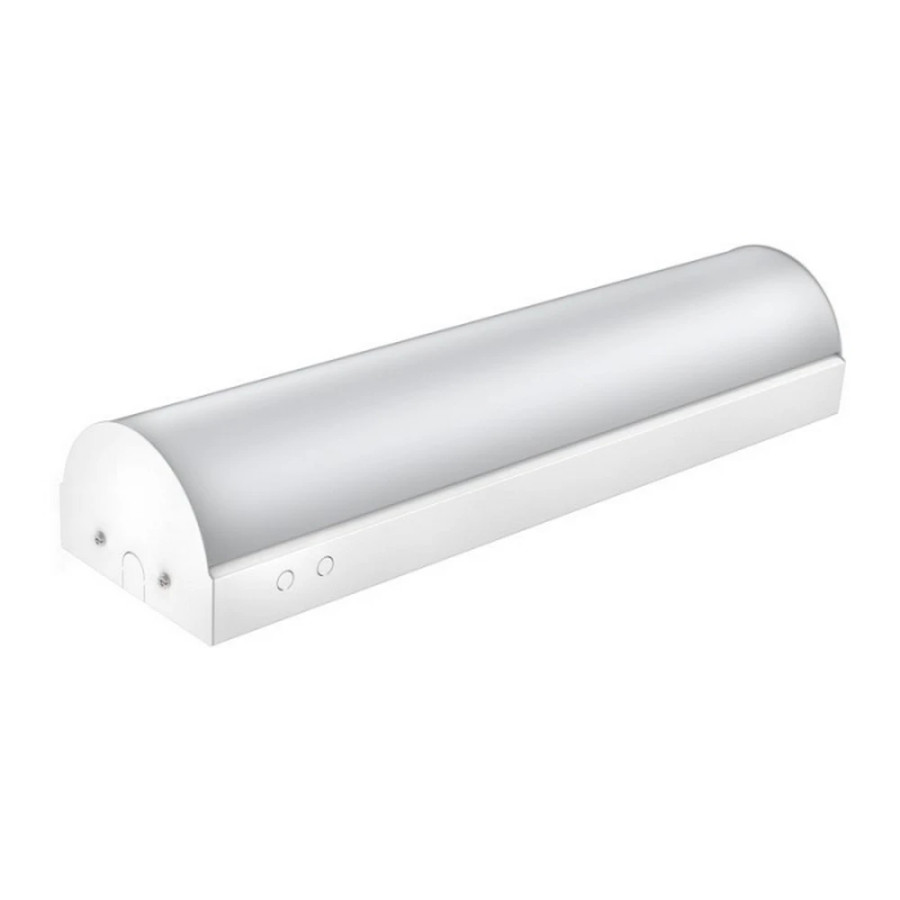

Light Efficient Design RPT-P-LIVC-G2-4FT-20L-840-FWFC-EMG-R-S1 48" LED Stairwell Fixture - Emergency Battery Backup - CCT Selectable - 120-277V

Light Efficient Design’s 48-inch LED stairwell fixture combines versatile performance with built-in emergency capability. The RPT-P-LIVC-G2-4FT-20L-840-FWFC-EMG-R-S1 is a longer, wide-profile fixture designed to retrofit or replace existing stairwell luminaires, delivering up to 5,120 lumens at a chosen wattage and color temperature. With FlexWatt and FlexColor technologies, this unit allows on-board selection of wattage and color temperature, providing options for 10, 15, 20, or 30 watts and color temperatures of 3000 K (warm), 3500 K (warm-neutral), or 4000 K (neutral). The fixture is equipped with an integrated emergency battery backup that maintains illumination for up to 90 minutes during a power outage, a critical feature for egress applications. A rugged 22-gauge white powder-coated housing and extra-wide 6-inch width help accommodate older fixture footprints and simplify installation, while tool-free assembly and a quick disconnect facilitate fast setup and maintenance. The unit is designed for 120–277 V operation and 0–10 V dimming, enabling compatibility with a broad range of building systems and controls. Its rated life of 100,000 hours supports long-term reliability in high-use stairwell environments. The fixture’s continuous-run linkability allows multiple units to be connected for seamless, uninterrupted illumination along longer stairwells, enhancing safety and visibility across the egress path.

Features:

• 120-277V operation
• 0-10V dimmable
• Wattage selectable (10/15/20/30W options) for up to 5,120 lm
• CCT selectable: 30K, 35K, 40K
• Integrated emergency battery backup (90 minutes)
• Linkable for continuous runs
• Extra wide 6" width to cover old fixture footprints
• Tool-free assembly
• Rugged 22 gauge white powder-coated housing
• Quick disconnect wiring
• 100,000 hour rated life
