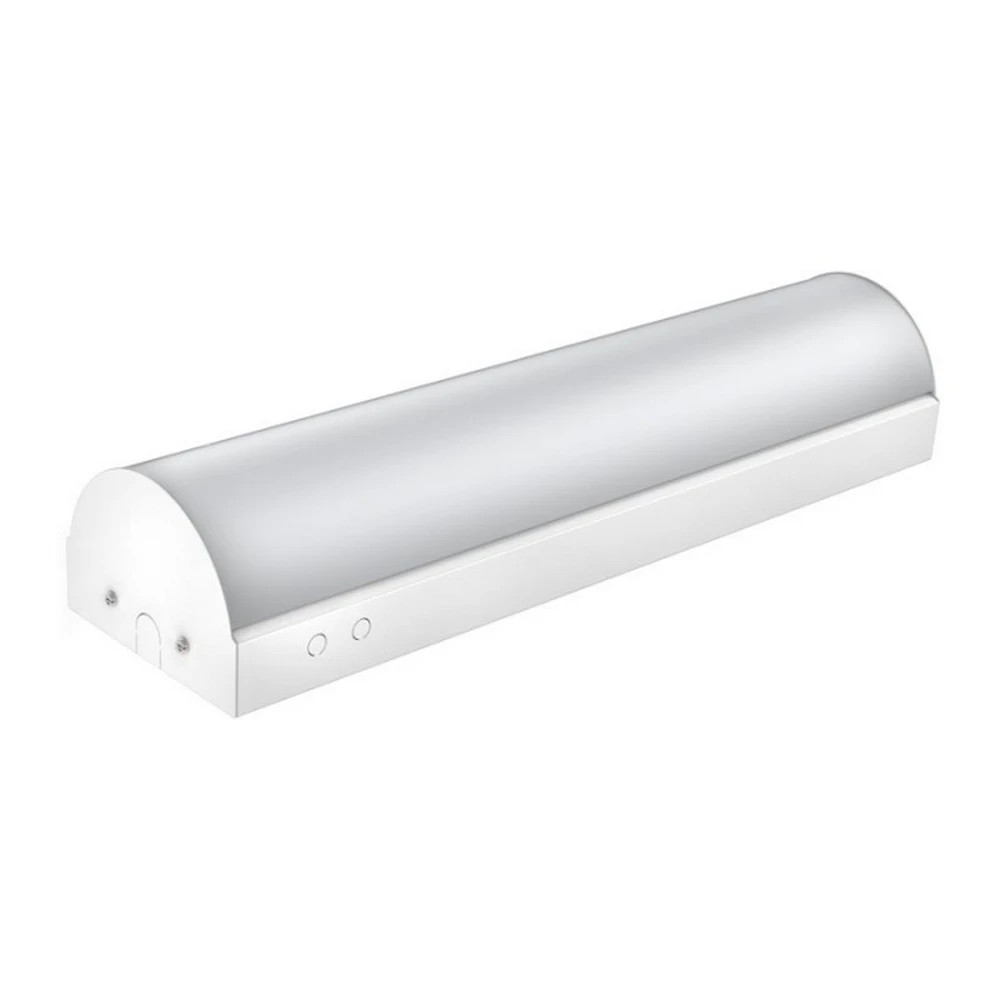

The Light Efficient Design RPT-P-LIVC-G2-3FT-20L-840-FWFC-R-S1 is a 36-inch LED stairwell fixture designed to replace traditional footprints with a versatile, energy-efficient solution. It combines FlexWatt and FlexColor technology to offer four selectable wattage outputs and three color temperatures, enabling you to tailor light output and tone to the space via a simple switch on the diode board. With a rugged 22-gauge white powder-coated housing and a 6-inch-wide form factor, this fixture covers older fixture footprints while providing modern performance and a streamlined, tool-free installation and maintenance process.
Constructed for reliability, the unit is rated for 100,000 hours of operation and operates on a wide voltage range of 120–277V. It is 0–10V dimmable, which supports compatible lighting controls for added energy efficiency and reduced operating costs. The fixture’s lumen output reaches up to 3,750 directly from a 30W setting, delivering ample illumination for stairwells and high-traffic corridors while maintaining a consistent color appearance across the selectable CCTs of 3000K, 3500K, and 4000K. A quick-disconnect wiring feature simplifies field connections and service, helping minimize downtime during maintenance or reconfigurations.
This product is suitable for retrofit or new-install scenarios where long life, low maintenance, and adaptable lighting configurations are priorities. When planning runs, note that the fixture is designed to be linkable for continuous lengths, enabling seamless lighting across longer stairwell sections without gaps. Compatibility considerations include the 120–277V input range, 0–10V dimming, and the selectable lumen and CCT options, which should align with your control system and desired light quality for the space.
Features:
- 120-277V operation
- 0-10V dimmable
- Wattage selectable: 10/15/20/30W for 1,240–3,750 lumens
- CCT-selectable: 3000K / 3500K / 4000K
- Linkable for continuous runs
- 6" wide footprint to cover old fixtures
- Tool-free assembly and disassembly
- Rugged 22 gauge white powder coated housing
- Quick disconnect for easy wiring
- 100,000 hour rated
- Brand:
- Light Efficient Design
- DLC Product ID:
- P0CVHIFA
- Manufacturer Part Number:
- RPT-P-LIVC-G2-3FT-20L-840-FWFC-R-S1
- UPC:
- 844006010928
- Lumens:
- 3,750 Lumens
- Lumens Per Watt:
- 125
- Wattage:
- 30 Watts
- Input Voltage:
- 120-277V
- Dimmable:
- 0-10V
- Color Temperature:
- 3000K, 3500K, 4000K
- Rated Hours:
- 100,000 Hours
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Wattage Selectable

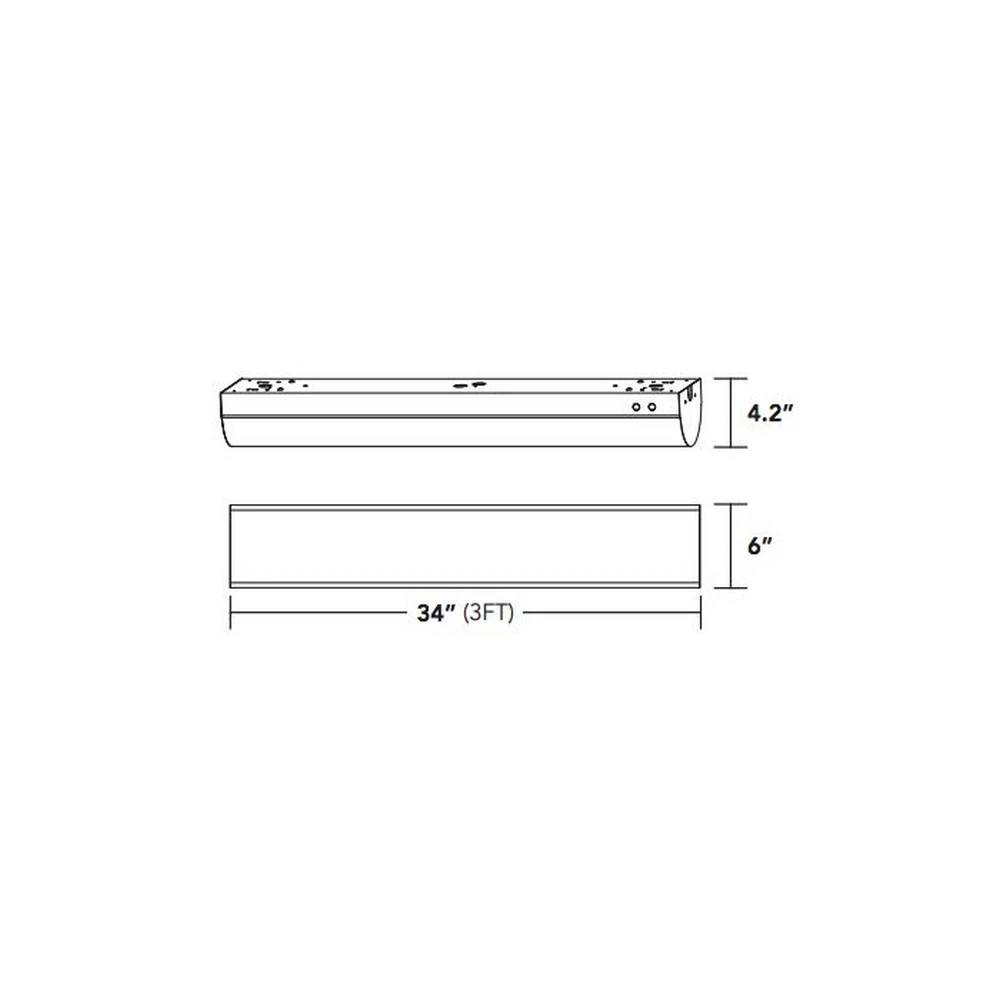

- Length:
- 34
- Width:
- 6
- Height:
- 4.2
- Package Size:
- Each
