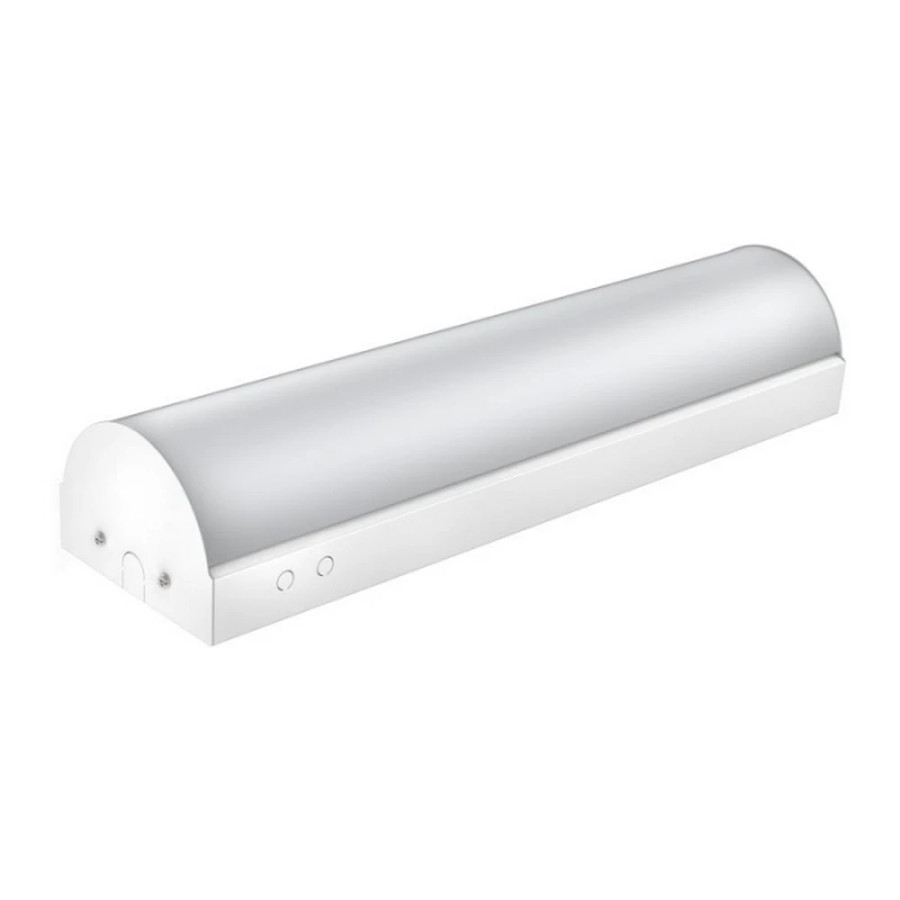

Light Efficient Design’s RPT-P-LIVC-G2-2FT-20L-840-FWFC-OCC-R-S1 is a 24-inch LED stairwell fixture engineered for retrofit or new-install applications that require reliable, energy-efficient illumination with flexible light output. This unit consolidates multiple features into one fixture: wattage selectable between 10, 15, 20, or 30 watts, delivering up to 3,750 lumens with a claimed efficency of 125 lm/W, and color temperature options of 3000K, 3500K, or 4000K. An integrated occupancy sensor provides automatic motion-based control, while the fixture’s 0-10V dimming supports further adjustment to meet occupied and unoccupied conditions. The design includes a rugged 22-gauge white powder-coated housing with an extra-wide 6-inch footprint to align with or cover existing fixture footprints, contributing to a streamlined installation in stairwells and transitional spaces.
Features:
- 120-277V operation
- 0-10V dimmable
- Wattage selectable: 10, 15, 20, or 30W for 1,240–3,750 lm
- CCT-selectable: 3000K, 3500K, 4000K
- Integrated occupancy sensor with daylight hold-off
- Linkable for continuous runs
- 6" wide, covers older footprints
- Rugged 22 gauge white powder coated housing
- Brand:
- Light Efficient Design
- DLC Product ID:
- PNUZLQCS
- Manufacturer Part Number:
- RPT-P-LIVC-G2-2FT-20L-840-FWFC-OCC-R-S1
- UPC:
- 844006010942
- Lumens:
- 3,750 Lumens
- Lumens Per Watt:
- 125
- Wattage:
- 30 Watts
- Input Voltage:
- 120-277V
- Dimmable:
- 0-10V
- Color Temperature:
- 3000K, 3500K, 4000K
- Rated Hours:
- 100,000 Hours
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Occupancy Sensor Installed, Wattage Selectable
- Length:
- 23
- Width:
- 6
- Height:
- 4.2
- Package Size:
- Each
