Light Efficient Design RPT-P-LIVC-G2-3FT-20L-840-FWFC-OCC-EMG-R-S1 36" LED Stairwell Fixture - Occupancy Sensor - Emergency Battery Backup - CCT Selectable - 120-277V

Light Efficient Design’s 3 ft LED stairwell luminaire combines multiple capabilities into a single modular fixture, designed to replace older stairwell lighting with enhanced efficiency and functionality. This model features selectable wattage and color temperature, allowing 30 W at up to 3,750 lumens across 3000 K, 3500 K, or 4000 K, enabling tailored illumination for stairwells and egress paths. It includes an integrated occupancy sensor and an emergency battery backup driver, providing up to 90 minutes of illumination during a power outage and automatic operation based on ambient activity. The fixture is designed for continuous runs by linking multiple units and employs a rugged 22 gauge white powder-coated housing with a wide 6-inch profile to match older fixture footprints.

The unit supports 120–277 V operation and 0–10 V dimming, with a tool-free assembly/ disassembly approach and quick-disconnect wiring for straightforward installation. The internal sensor system manages motion detection, daylight hold-off, and configurable timing to balance energy savings with safety-critical lighting. The factory defaults emphasize moderate dimming and active sensing, while the sensor can be adjusted or controlled via an optional remote accessory if needed. With a rated life of 100,000 hours and an emergency back-up capability, the fixture is suited for stairwells, corridors, and other high-traffic vertical spaces where reliable illumination matters for egress safety and visibility.

Features:

• 120-277V operation with 0-10V dimming

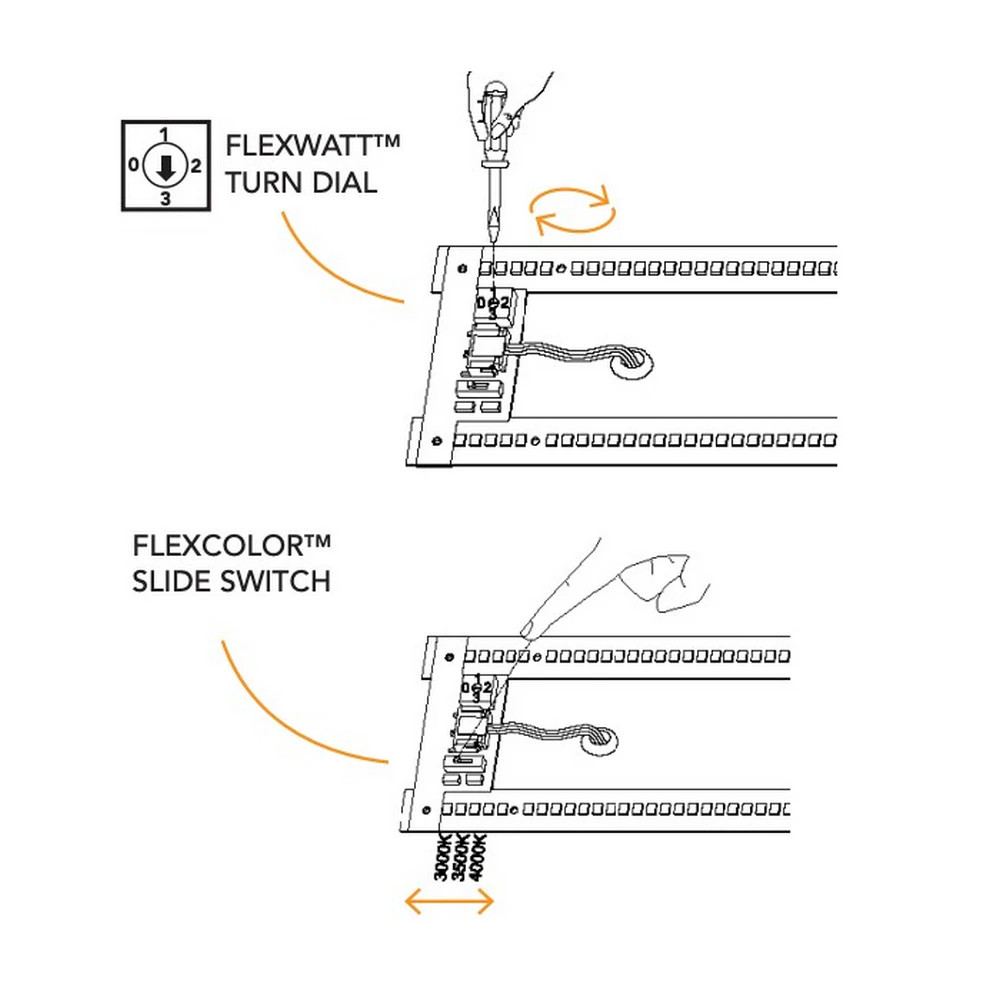

• Wattage selectable: 10, 15, 20, or 30W for 1,240–3,750 lumens
• CCT-selectable: 3000K, 3500K, 4000K
• Integrated occupancy sensor with daylight hold-off
• Integrated emergency battery backup for 90 minutes
• Linkable for continuous runs
• Rugged 22 GA white powder-coated housing
