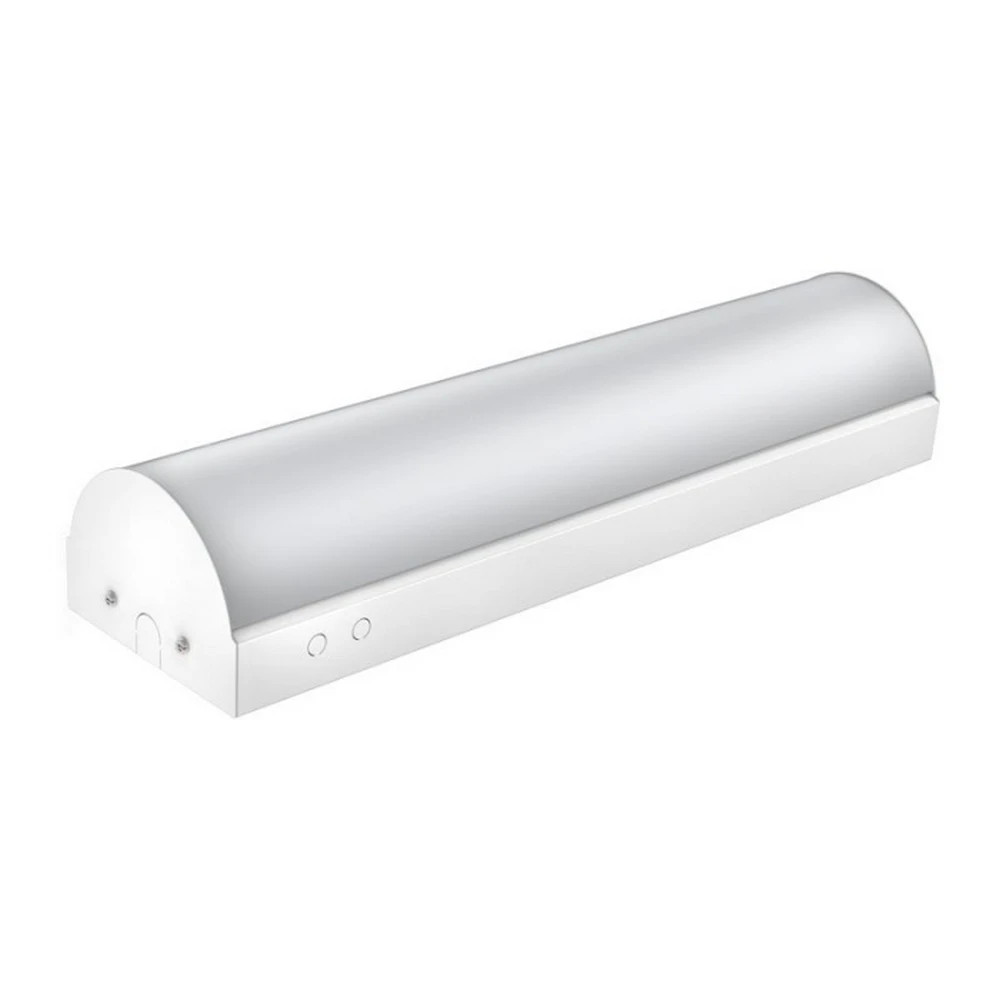

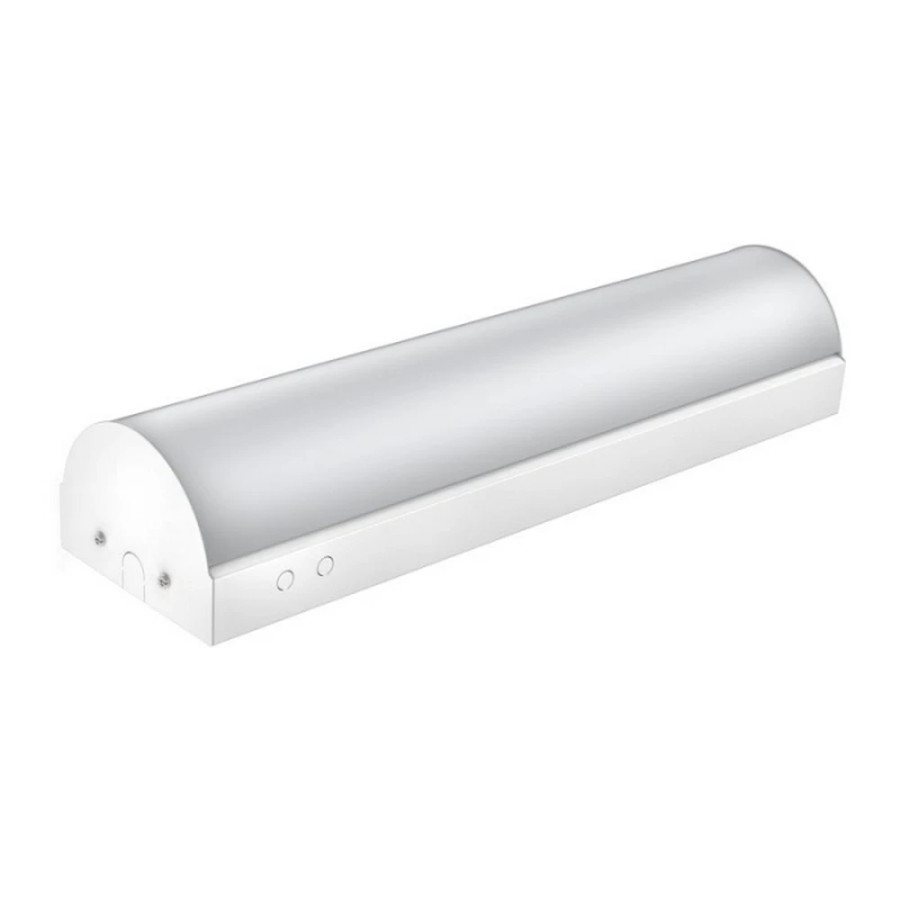

Light Efficient Design RPT-P-LIVC-G2-2FT-20L-840-FWFC-OCC-EMG-R-S1 24" LED Stairwell Fixture - Occupancy Sensor - Emergency Battery Backup - CCT Selectable - 120-277V

Light Efficient Design presents the RPT-P-LIVC-G2-2FT-20L-840-FWFC-OCC-EMG-R-S1 24" LED stairwell fixture, a versatile, multi-mode luminaire designed to replace traditional stairwell lighting with enhanced efficiency and control. This fixture functions as a compact, 2-foot linear unit that can be wired for 120–277 V operation and provides selectable wattage and lumen output to fit different space requirements, delivering up to 3,750 lumens at 30 watts and 125 lumens per watt. It includes CCT-selectable options (3000K, 3500K, 4000K) to tailor the light color to the building design or occupancy needs, while advancing energy savings through 0–10V dimming compatibility. An integrated occupancy sensor and daylight hold-off improve energy management by reducing unnecessary illumination when spaces are unoccupied or sufficiently lit. The fixture comes with an emergency battery backup that sustains illumination for 90 minutes during a power outage, supporting egress safety in critical areas. The unit’s footprint is designed to accommodate older fixture footprints with an extra-wide 6-inch width, and it is engineered with a rugged 22-gauge white powder-coated housing and quick-disconnect wiring for straightforward installation and maintenance. The product is linkable to create continuous runs, enabling scalable lighting layouts for stairwells or corridors while maintaining consistent performance and color. The internal sensor features adjustable defaults for sensitivity, time dimming, and dim level, and the system can be mounted behind a glass or plastic lens, with an optional remote control available to fine-tune settings. This fixture is rated for long life, with a 100,000-hour expected lifespan, offering low maintenance and predictable performance in demanding stairwell environments.

Features:

• 120-277V operation
• 0-10V dimmable
• Wattage selectable: 10/15/20/30W for 1,240–3,750 lumens
• CCT-selectable: 3000K, 3500K, 4000K
• Integrated emergency battery backup (90 minutes)
• Linkable for continuous runs
• Integrated occupancy sensor with daylight hold-off
