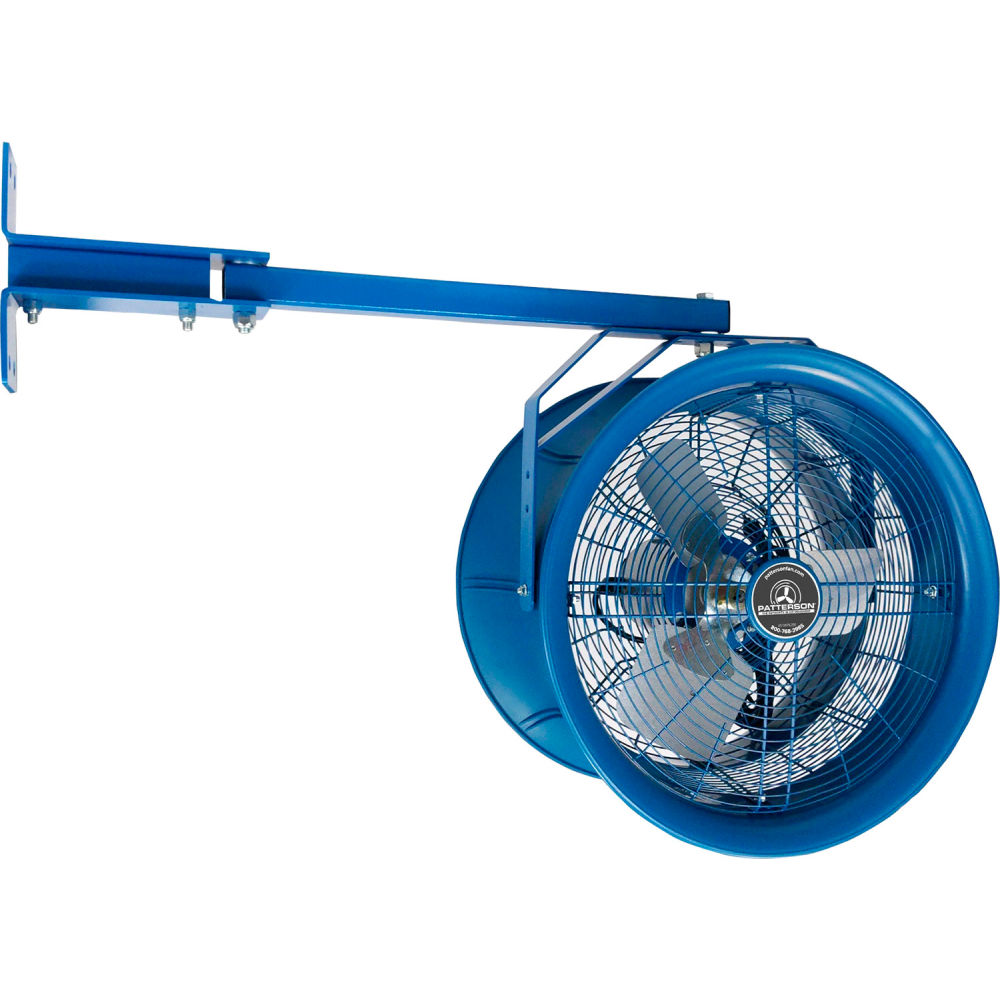

The Patterson Fan TC14A is a high-velocity, industrial-duty 14-inch fan designed to move large volumes of air for targeted cooling in work areas with dock doors, pick modules, and short trailers. With a 60-foot air throw, this unit is capable of purging heat, odors, or other contaminants from confined spaces such as truck trailers in a relatively short time, supporting safer, more comfortable environments around loading and unloading zones. The design emphasizes durability and performance for tough industrial settings, and it ships with a wall mount and a yoke for flexible mounting options.
Features:
- 14 Inch Fan Size
- 60 Foot Air Throw
- Built for Performance
- Includes Wall Mount and Yoke
- Designed to Purge Truck Trailers in Just Over 2 Minutes
- Effective for Heat, Gas, Odor Removal
- Non-Oscillating, TEAO Motor
- Width:
- 20 in
- Depth:
- 16 in
- Height:
- 20 in
- Weight:
- 51 lbs
- Cord Length:
- 12 ft
- Cooling Area:
- 1800 in²
- Fan Diameter:
- 14 in
- Distance Air Throw:
- 60 ft
- Max Ambient Temperature:
- 104 °F
- Assembly Required:
- No
- Fan Type:
- Industrial
- Number of Speeds:
- 1
- Number of Blades:
- 3
- For Use With:
- Truck Cooling, Pick Modules, Tight Spaces
- Motor Type:
- Totally Enclosed Air Over (TEAO)
- Mounting Location:
- Wall
- Wattage:
- 83 W
- Material:
- Galvanized Aluminum
- Phase:
- 1
- Manufacturers Part Number:
- TC14A
- Blade Type:
- Galvanized Aluminum
- Brand:
- Patterson Fan
- Type:
- Dock Fan
- RPM:
- 1725 rpm
- CFM:
- 2600 CFM
- Horsepower:
- 1/4 HP
- Color:
- Blue
- Hertz:
- 60 Hz
- Amperage:
- 2.8 A
- Voltage:
- 115 V
- Description:
- High Velocity Truck Cooler
- Oscillating/Non Oscillating:
- Non-Oscillating
- Power Cord Type:
- SJT 3 Conductor
- Decibels:
- 66.5
- Package Size:
- Each
