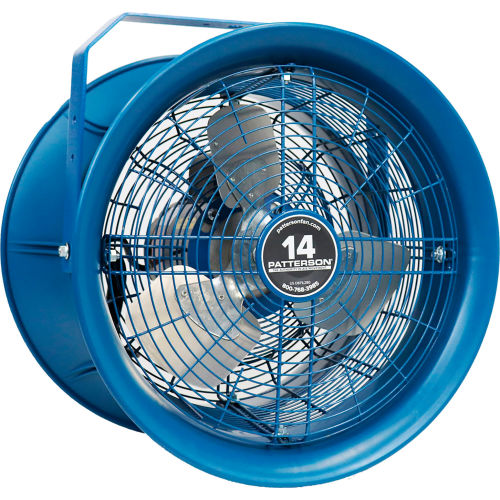

The Patterson PATH14A is a 14-inch, high-velocity industrial fan designed for focused cooling in workspaces such as pick modules, trailers, and multiple work stations. This direct-drive unit uses a TEAO (Totally Enclosed Air Over) motor with a 1/4 HP rating and 115 V operation, delivering up to 2,600 CFM to help move air over a considerable distance. The fan is mounted on a yoke bracket, offering flexible placement options and stable operation in column, free-standing, or wall configurations, depending on your layout.
Construction emphasizes safety and durability in demanding environments. The housing is composed of high-impact polypropylene, while welded steel wire finger guards provide added protection around the blades. A deep venturi inlet/outlet design helps produce an even column of air and reduces turbulence, contributing to smoother operation. The unit runs at 1 speed and is built with galvanized aluminum blades for efficient air velocity and reliable performance. A 12-foot power cord is included, supporting straightforward installation in typical workshop settings.
This model is suitable for industrial cooling tasks where a strong, directional airflow is required without relying on multiple devices. It’s important to note the unit’s 60-foot air throw capability, which informs placement decisions to achieve the desired air movement across the work area. The PATH14A ships as a single unit with a yoke mount, and its powder-coated finish provides corrosion resistance appropriate for many shop environments. Maintain awareness of the operating temperature limit (up to 104°F ambient) when planning use in warmer spaces and verify that mounting and electrical connections comply with local regulations and electrical codes.
Features:
- Direct drive, maintenance-free TEAO motor with sealed bearings
- Side-vented barrel design for optimum air flow
- Galvanized aluminum blades for high velocity and smooth operation
- Powder-coated, corrosion-resistant guards for safety
- Deep venturi inlet/outlet promotes an even air column
- Yoke mount bracket included for versatile mounting
- 1/4 HP, 115 V, 60 Hz, 2,600 CFM, 1 speed
- Width:
- 20 in
- Depth:
- 16 in
- Height:
- 20 in
- Weight:
- 35 lbs
- Cord Length:
- 12 ft
- Cooling Area:
- 1800 in²
- Fan Diameter:
- 14 in
- Distance Air Throw:
- 60 ft
- Max Ambient Temperature:
- 104 °F
- Assembly Required:
- No
- Fan Type:
- Industrial
- Number of Speeds:
- 1
- Number of Blades:
- 3
- Motor Type:
- Totally Enclosed Air Over (TEAO)
- Mounting Location:
- Column, Free Standing, or Wall
- Wattage:
- 83 W
- Material:
- High Impact Polypropylene
- Phase:
- 1
- Manufacturers Part Number:
- H14A
- Blade Type:
- Galvanized Aluminum
- Brand:
- Patterson Fan
- RPM:
- 1725 rpm
- Type:
- High Velocity Fan
- CFM:
- 2600 CFM
- Horsepower:
- 1/4 HP
- Color:
- Blue
- Drive Type:
- Direct Drive
- Hertz:
- 60 Hz
- Amperage:
- 2.8 A
- Includes:
- Yoke Mount Bracket
- Voltage:
- 115 V
- Description:
- Industrial High Velocity Fan
- Package Quantity:
- 1
- Oscillating/Non Oscillating:
- Non-Oscillating
- Power Cord Type:
- SJT 3 Conductor
- Decibels:
- 66.5
- Package Size:
- Each
