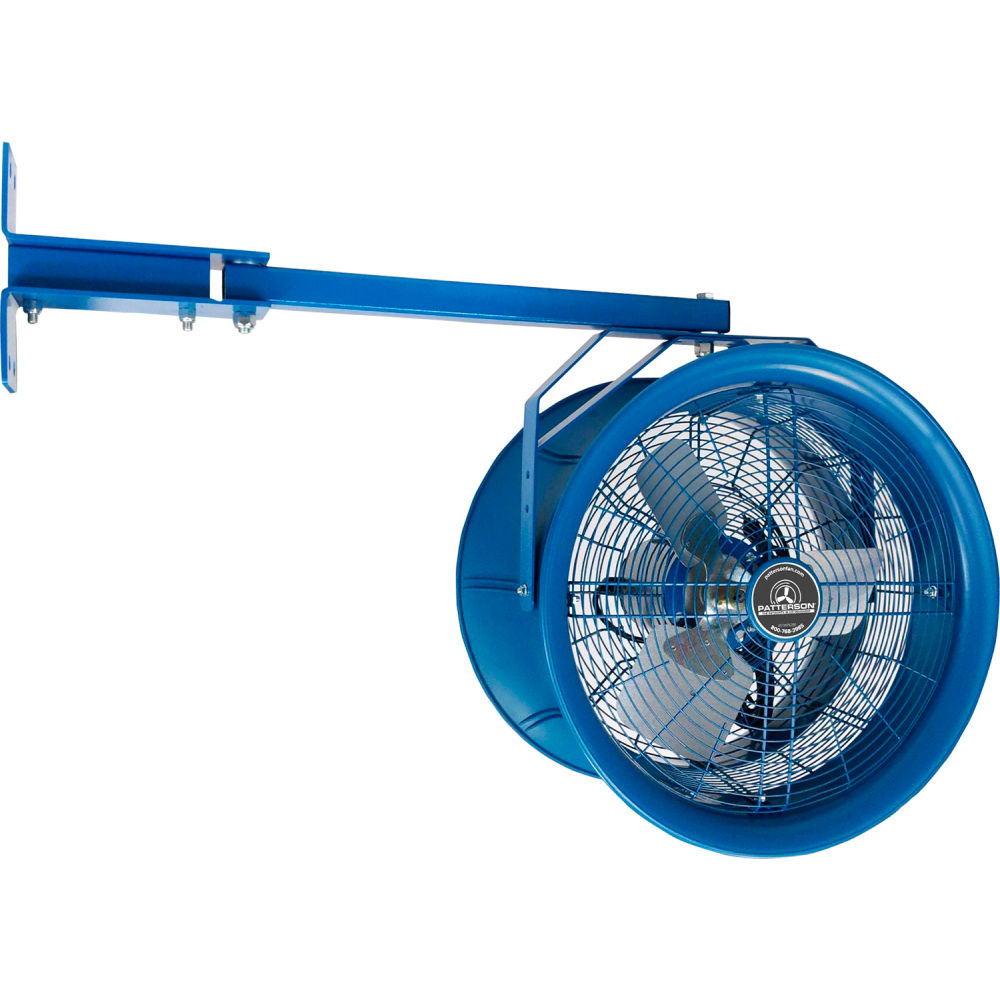

The Patterson 18 inch high-velocity industrial fan is designed to move a large volume of air quickly in industrial settings, making it suitable for cooling dock areas, pick modules, and trailer spaces. With a 3800 CFM rating and a 1/2 HP TEAO motor, this unit focuses airflow over extended distances to help purge heat, gases, and odors from truck trailers and adjacent work zones. It arrives configured for wall mounting, and a yoke is included to support flexible installation in tight or variable spaces typical of dock doors and loading areas.
Constructed with galvanized aluminum blades and a robust frame, the fan emphasizes durability in demanding environments. The model uses a single-speed operation and is powered by a 115 V supply, delivering reliable, high-velocity air through an 18-inch diameter fan assembly. Its compact footprint—24 inches wide, 24 inches tall, and 16 inches deep—along with a 60-pound weight, supports mounting in areas with limited floor space while still delivering strong air throw up to ~80 feet, which helps targets shoulder distances from wall or dock openings. The unit’s cord length and wall/yoke mounting capabilities offer practical installation options for facilities with frequent door cycling and dock activity.
Typical use cases include purging trailers during loading or unloading, cooling pick modules, and ventilating tight workspaces where space constraints limit conventional ventilation. For best results, consider the unit’s 104°F maximum ambient rating and 71.2 dB operating level when planning placement near occupied workstations. The product is designed for general cooling and dock-related applications, and it ships as a single, ready-to-install package with mounting hardware appropriate for wall installation.
Features:
- 18 Inch Fan Size
- 80 Foot Air Throw
- Includes Wall Mount and Yoke
- High Velocity for Quick Trailer Purge
- Durable Galvanized Aluminum Blades
- Totally Enclosed Air Over (TEAO) Motor
- Single Speed, 115 V, 3,800 CFM
- Width:
- 24 in
- Depth:
- 16 in
- Height:
- 24 in
- Weight:
- 60 lbs
- Cord Length:
- 12 ft
- Cooling Area:
- 2700 in²
- Fan Diameter:
- 18 in
- Distance Air Throw:
- 80 ft
- Max Ambient Temperature:
- 104 °F
- Assembly Required:
- No
- Fan Type:
- Industrial
- Number of Speeds:
- 1
- For Use With:
- General Cooling, Truck Cooling, Pick Modules Tight Spaces
- Number of Blades:
- 3
- Motor Type:
- Totally Enclosed Air Over (TEAO)
- Mounting Location:
- Wall
- Wattage:
- 345 W
- Material:
- Galvanized Aluminum
- Phase:
- 1
- Blade Type:
- Galvanized Aluminum
- Manufacturers Part Number:
- TC18A
- Brand:
- Patterson Fan
- RPM:
- 1725 rpm
- Type:
- Dock Fan
- CFM:
- 3800 CFM
- Horsepower:
- 1/2 HP
- Color:
- Blue
- Hertz:
- 60 Hz
- Amperage:
- 6 A
- Voltage:
- 115 V
- Oscillating/Non Oscillating:
- Non-Oscillating
- Description:
- High Velocity Truck Cooler
- Power Cord Type:
- SJT 3 Conductor
- Decibels:
- 71.2
- Package Size:
- Each
