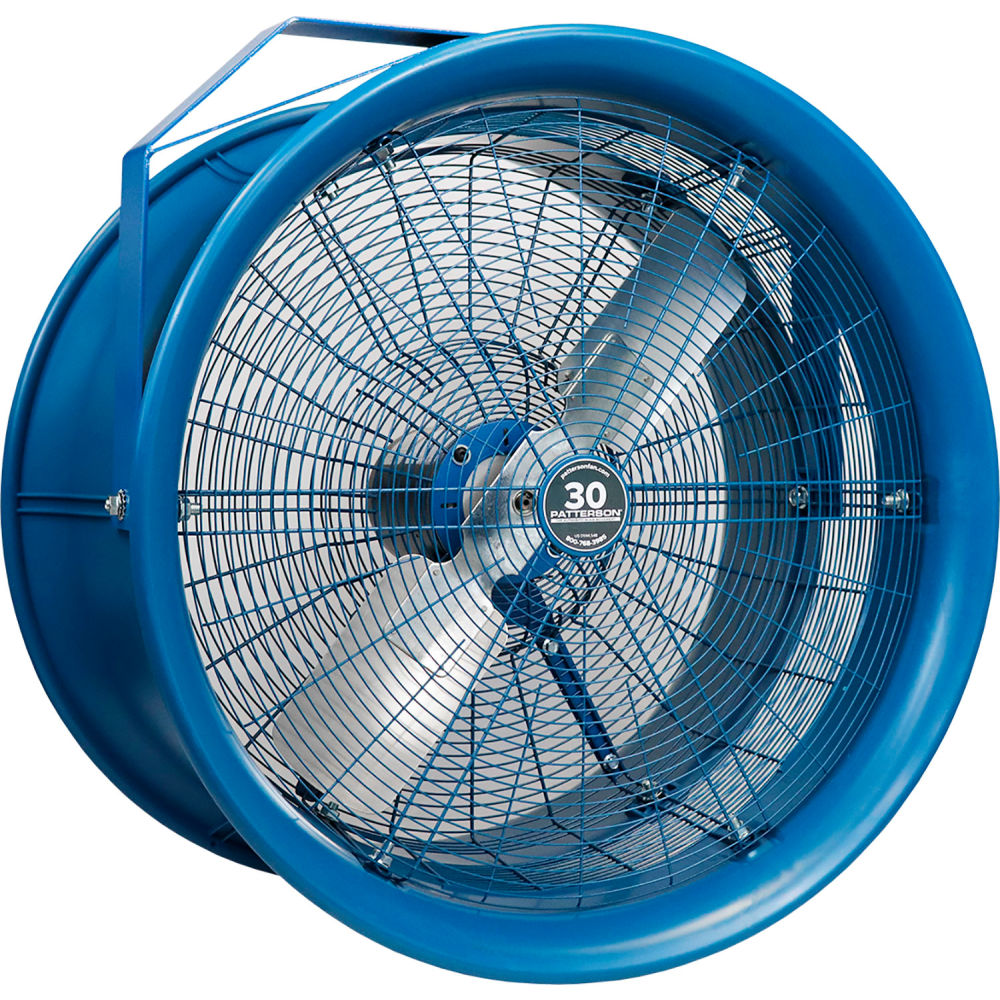

The Patterson H30A is a 30-inch high velocity industrial fan designed to move large volumes of air for industrial spaces. With a direct-drive, TEAO motor and a robust 1 HP rating, this unit is built for continuous operation in demanding environments, delivering up to 12,000 CFM at 60 Hz. The fan uses galvanized aluminum blades and a deep-venturi barrel to promote an even column of air flow, maximizing air throw and efficiency while keeping the moving parts protected by powder-coated, corrosion-resistant guards.
Construction features include a sealed, maintenance-free motor with totally enclosed bearings and a side-vented barrel for optimized air distribution. The unit is mounted via a yoke bracket and can be configured for column, free-standing, or wall mounting, offering flexibility in placement to suit shop floors, process areas, or general air circulation needs. The design prioritizes reliability, with a 2-year limited warranty and a corded power setup using a 115V supply, suitable for standard industrial electrical feeds. The fan operates at 1725 RPM and is rated for a maximum ambient temperature of 104°F, making it a practical option for spaces where heat buildup is a concern.
Typical applications include personnel and equipment cooling, process ventilation, and general air circulation in industrial settings. When sizing the unit, consider the substantial 37 x 37 x 22 inch footprint and a weight of 99 pounds, which influence mounting choices and space requirements. The included yoke mount bracket simplifies installation, while the 12-foot power cord provides some flexibility in placement away from outlets. This high velocity unit is intended for indoor use where long air throws are beneficial for directing airflow across larger areas.
Features:
- Direct-drive, maintenance-free motor with sealed bearings (Totally Enclosed)
- Side-vented barrel design for optimum airflow
- Blades engineered for maximum air velocity and smooth operation
- Powder-coated, corrosion-resistant recessed finger guards
- Deep venturi inlet/outlet design provides even air flow
- Includes Yoke Mount Bracket for versatile mounting
- 12,000 CFM, 1 HP, 115 V, 60 Hz
- Width:
- 37 in
- Depth:
- 22 in
- Height:
- 37 in
- Weight:
- 99 lbs
- Cord Length:
- 12 ft
- Cooling Area:
- 12000 in²
- Fan Diameter:
- 30 in
- Distance Air Throw:
- 200 ft
- Max Ambient Temperature:
- 104 °F
- Assembly Required:
- No
- Fan Type:
- Industrial
- Number of Speeds:
- 1
- Number of Blades:
- 2
- Motor Type:
- Totally Enclosed Air Over (TEAO)
- Mounting Location:
- Column, Free Standing, or Wall
- Wattage:
- 1541 W
- Material:
- High Impact Polypropylene
- Phase:
- 1
- Blade Type:
- Galvanized Aluminum
- Manufacturers Part Number:
- H30A
- Brand:
- Patterson Fan
- RPM:
- 1725 rpm
- Type:
- High Velocity Fan
- CFM:
- 12000 CFM
- Horsepower:
- 1 HP
- Color:
- Blue
- Drive Type:
- Direct Drive
- Hertz:
- 60 Hz
- Amperage:
- 13.4 A
- Includes:
- Yoke Mount Bracket
- Voltage:
- 115 V
- Package Quantity:
- 1
- Oscillating/Non Oscillating:
- Non-Oscillating
- Description:
- Industrial High Velocity Fan
- Power Cord Type:
- SJT 3 Conductor
- Decibels:
- 82.2
- Package Size:
- Each
