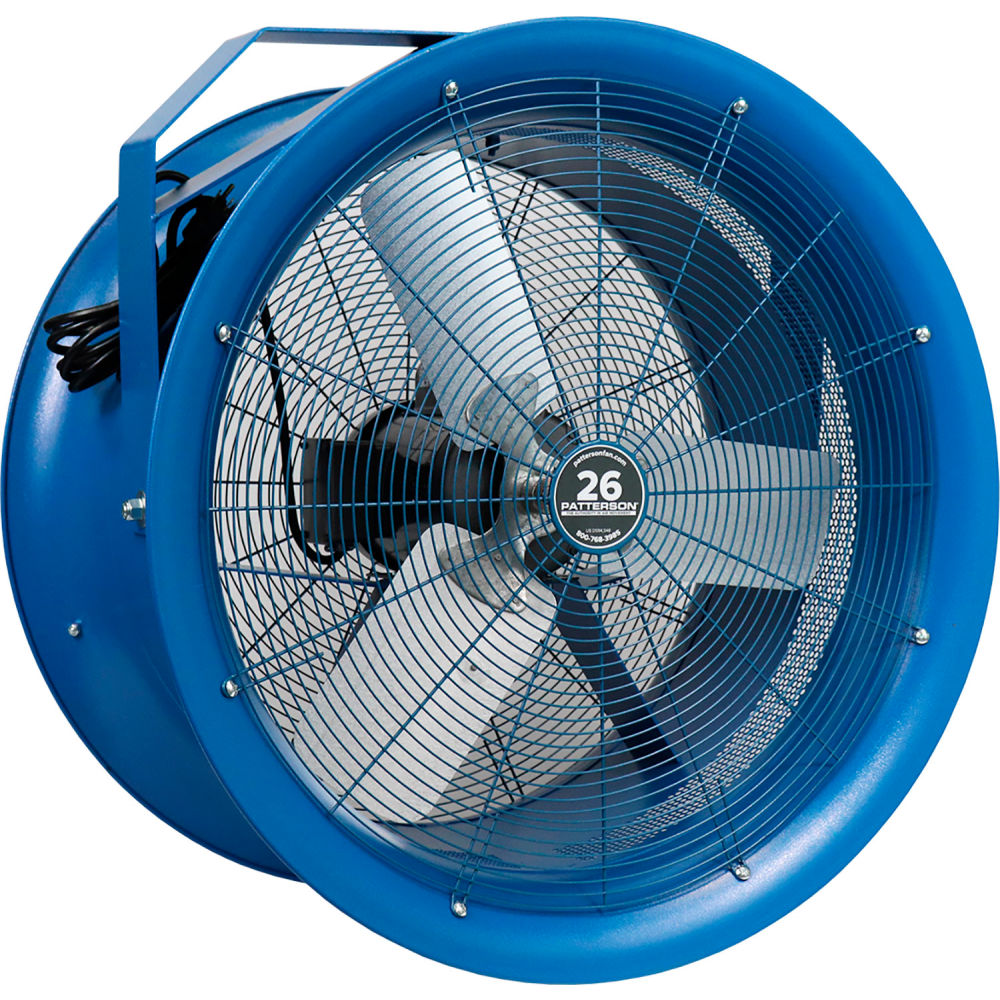

The Patterson H26A 26" High Velocity Industrial Fan is designed for robust air movement in demanding industrial environments. With a direct-drive, TEAO motor and a single-speed operation, this fan delivers a high volume of air to support personnel comfort, process cooling, equipment cooling, and general air circulation. Its 26-inch blade diameter paired with a large air throw provides substantial coverage and helps promote effective ventilation in spaces up to the specified capacity for this model.
The unit features a side-vented barrel design and a deep venturi inlet/outlet, which work together to create a more uniform column of air and reduce eddies that can diminish throw distance. The galvanized aluminum blades are balanced for smooth operation, and the powder-coated steel housing offers corrosion resistance in dusty or damp environments. A finger-safe, OSHA-compliant recessed guard and a 12-foot power cord contribute to safer use in industrial settings. The fan is mounted via a yoke bracket, and its construction supports free-standing, column, or wall mounting to fit varied facility layouts.
Typical applications include personnel cooling, process-related airflow, equipment cooling, and general air circulation in warehouses, workshops, and manufacturing floors. The unit operates at 115 V, 60 Hz, drawing approximately 13.4 A and delivering up to 7,650 CFM at 1 HP, with a measured sound level around 80.8 dB. Maintenance is minimized by a maintenance-free sealed bearing motor and direct-drive design. When considering setup, confirm available mounting options, space for a tall column or wall installation, and a 12 ft power cord length to ensure proper reach.
Features:
- Direct-drive, maintenance-free TEAO motor with sealed bearings
- Side-vented barrel design for optimum airflow
- Engineered blades for maximum velocity and smooth operation
- Powder-coated, corrosion-resistant recessed finger guards
- Deep venturi inlet/outlet for an even, undisturbed air column
- Yoke mount included; versatile mounting: column, free-standing, or wall
- 1 HP, 115 V, 60 Hz, 7,650 CFM
- Width:
- 33 in
- Depth:
- 18-1/2 in
- Height:
- 33 in
- Weight:
- 93 lbs
- Cord Length:
- 12 ft
- Cooling Area:
- 6100 in²
- Fan Diameter:
- 26 in
- Distance Air Throw:
- 150 ft
- Max Ambient Temperature:
- 104 °F
- Assembly Required:
- No
- Fan Type:
- Industrial
- Number of Speeds:
- 1
- Number of Blades:
- 3
- Motor Type:
- Totally Enclosed Air Over (TEAO)
- Mounting Location:
- Column, Free Standing, or Wall
- Wattage:
- 1541 W
- Material:
- Steel
- Phase:
- 1
- Blade Type:
- Galvanized Aluminum
- Manufacturers Part Number:
- H26A
- Brand:
- Patterson Fan
- Type:
- High Velocity Fan
- RPM:
- 1725 rpm
- CFM:
- 7650 CFM
- Horsepower:
- 1 HP
- Color:
- Blue
- Drive Type:
- Direct Drive
- Hertz:
- 60 Hz
- Amperage:
- 13.4 A
- Includes:
- Yoke Mount Bracket
- Voltage:
- 115 V
- Oscillating/Non Oscillating:
- Non-Oscillating
- Description:
- Industrial High Velocity Fan
- Package Quantity:
- 1
- Power Cord Type:
- SJT 3 Conductor
- Decibels:
- 80.8
- Package Size:
- Each
