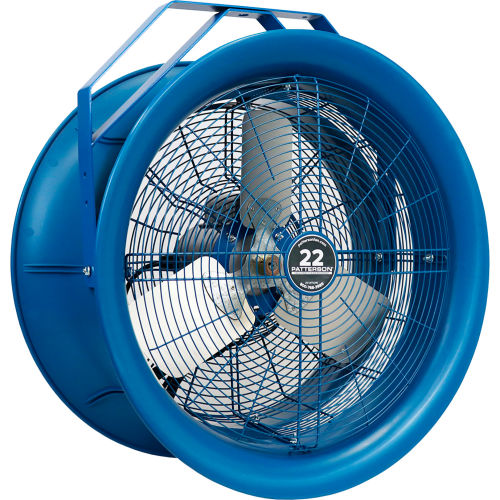

The Patterson PATH22A is a 22-inch, high-velocity industrial fan designed to move a substantial volume of air for cooling large work areas, such as pick modules, trailers, and multiple workstation stations. Its design prioritizes a strong, consistent air throw and durable operation in demanding environments. The unit’s housing is constructed from high-impact polypropylene with welded steel wire finger guards, contributing to both strength and safety in busy facilities. The included yoke mount adds flexibility for placement and alignment to direct airflow where it’s most needed.
A key feature is the direct-drive motor, which is maintenance-free and sealed to resist dust and debris—helping minimize downtime in industrial settings. The barrel’s side-vented design and deep venturi inlet/outlet help promote an even, non-disturbed column of air, while the galvanized aluminum blades are shaped for high velocity and smooth operation. The fan operates at 115 V with a single speed, delivering up to 5,570 CFM at a reported 100-foot air throw, making it suitable for long-range cooling in open or semi-enclosed spaces. A 12-foot cord provides practical reach for most installations, and the unit carries a 2-year limited warranty.
When planning placement, consider the environment and electrical availability: the PATH22A is a non-oscillating, 1/2 HP TEAO (Totally Enclosed Air Over) fan with a 345 W draw and 6 A current at 60 Hz. It can be configured for column, free-standing, or wall mounting, enabling versatile cooling layouts around equipment, inventory, and personnel without requiring extensive ductwork. Ensure proper clearance for airflow and guards, and verify mounting and power connections align with local electrical codes and safety practices.
Features:
- Direct drive, maintenance-free motor with Sealed bearings (Totally Enclosed)
- Side-vented barrel design promotes optimum air flow
- 3-blade galvanized aluminum wheel for high velocity
- Powder-coated, corrosion-resistant recessed finger guards
- Deep venturi inlet/outlet design for even air flow
- Yoke mount bracket included for versatile installation
- 1/2 HP, 115 V, 5,570 CFM, non-oscillating
- Width:
- 29 in
- Depth:
- 16 in
- Height:
- 29 in
- Weight:
- 49 lbs
- Cord Length:
- 12 ft
- Cooling Area:
- 3600 in²
- Fan Diameter:
- 22 in
- Distance Air Throw:
- 100 ft
- Assembly Required:
- No
- Max Ambient Temperature:
- 104 °F
- Fan Type:
- Industrial
- Number of Speeds:
- 1
- Number of Blades:
- 3
- Motor Type:
- Totally Enclosed Air Over (TEAO)
- Mounting Location:
- Column, Free Standing, or Wall
- Wattage:
- 345 W
- Material:
- High Impact Polypropylene
- Phase:
- 1
- Blade Type:
- Galvanized Aluminum
- Manufacturers Part Number:
- H22A
- Brand:
- Patterson Fan
- Type:
- High Velocity Fan
- RPM:
- 1725 rpm
- CFM:
- 5570 CFM
- Horsepower:
- 1/2 HP
- Color:
- Blue
- Amperage:
- 6 A
- Drive Type:
- Direct Drive
- Hertz:
- 60 Hz
- Voltage:
- 115 V
- Includes:
- Yoke Mount Bracket
- Description:
- Industrial High Velocity Fan
- Package Quantity:
- 1
- Oscillating/Non Oscillating:
- Non-Oscillating
- Power Cord Type:
- SJT 3 Conductor
- Decibels:
- 73.6
- Package Size:
- Each
