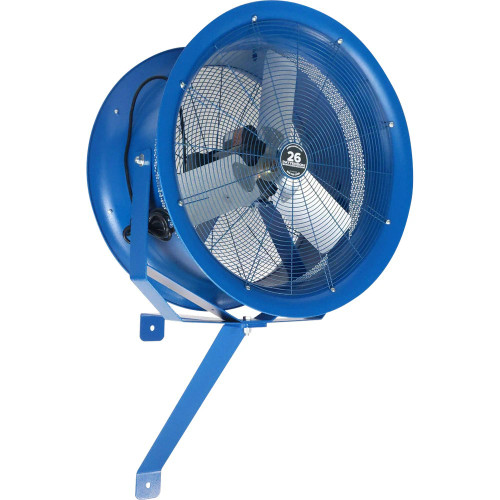

The Patterson CW26B High Velocity Fan is a 26-inch, multi-volt, direct-drive workstation and facility fan designed to move large volumes of air in demanding industrial settings. Its 26" propeller delivers high airflow with a 150 ft air throw, making it suitable for refreshing air in aisles, workstations, pick modules, and shipping areas where ventilation and comfort are important. The unit features a rugged construction with a high-impact polypropylene housing paired with heavy-gauge steel, and includes OSHA-compliant steel finger guards to help maintain a safe work environment. A patented Venturi-designed barrel and side air intakes work together to project and entrain air for efficient coverage across substantial distances, while the maintenance-free, custom-spec motors operate with long-lasting sealed bearings in a totally enclosed configuration. The CW26B offers multiple voltage options, including 115V through 460V, and various speed settings to match application needs, with a 2-year warranty providing coverage for the motor and assembly when used under normal conditions.
In practical use, these Patterson fans are designed to support employee cooling, condensation control, and overall workspace productivity by circulating air effectively in larger open areas or along production lines. Compatibility considerations include the available mounting options (up to eight approaches) and optional oscillator kits to broaden air projection patterns. The model ships with a 12-foot cord when used at 115V (cord length and plug configuration may vary by installation), and is suited for installations that require a robust, high-velocity air movement solution without compromising safety or reliability. Users should verify voltage compatibility and mounting configuration to ensure proper fit and electrical connection for their specific site needs.
Features:
- 26" diameter, 3-blade galvalum propeller
- High-impact polypropylene housing with heavy-gauge steel construction
- Venturi-designed barrels for efficient airflow
- Maintenance-free, direct-drive motor with sealed bearings
- Multiple voltages: 115V–460V
- OSHA-compliant steel finger guards
- Eight mounting options and optional oscillator kits
- Propeller:
- 26” Diameter, 3-Blade Galvalum, 18°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1800 (standard)/ 1200 (optional)
- Decibels:
- 80.8 @ 20’ - 85.2 @ 3’ (1800)/ 75.7 @ 20' - 81.3 @ 3' (1200)
- Coverage:
- 6100 ft²
- Warranty:
- 2 Years
- CFM:
- 7650
- HP:
- 1
- Width:
- 33”
- Depth:
- 18.5”
- Air Throw:
- 150’
- Weight:
- 93 lbs
- Package Size:
- Each
