Personal protective equipment has come a long way since the early days of construction and manufacturing. Today, safety helmets have become vital gear for protecting workers from head injuries in hazardous environments.

Knowing the different types of hard hats is important for safety officers, site managers, and anyone new to industrial workplaces where helmets are required.

Modern workplace safety is about more than just wearing a helmet. Different job sites and hazards call for specific types of hard hats to keep workers safe. For example, electrical workers need protection from voltage, while construction workers need helmets that guard against falling objects. Companies design each hard hat type for a particular risk.

This blog covers the main types of hard hats, explains how they’re classified by safety standards, and will help you choose the right helmet for your workplace hazards.

Key Takeaways:

• Hard hats are classified into two main types (Type I for top impact, Type II for top and side impact) and three electrical classes (G, E, C) under ANSI Z89.1-2014 standards.
• Class G hard hats protect against electrical hazards up to 2,200 volts, Class E up to 20,000 volts, while Class C provides no electrical protection.
• Materials vary between HDPE (chemical-resistant, 4-year lifespan) and ABS (impact-resistant, heavier) for different workplace environments.
• Hard hat color coding systems help identify worker roles and responsibilities, though specific meanings vary by industry and company.
• European EN standards (EN 397, EN 14052, EN 50365) provide additional classification systems for international markets.

ANSI Hard Hat Types and Classifications

The American National Standards Institute (ANSI) created the Z89.1-2014 standard to classify protective helmets in the U.S. This system looks at both impact protection and electrical insulation, helping workers get the right helmet for their job’s hazards.

Understanding these classifications is important for compliance with OSHA regulations, which mandate that employers provide appropriate safety hard hats for workers exposed to head injury risks. The standard requires that all protective gear meet specific testing requirements for impact resistance, penetration protection, and electrical insulation where applicable.

Site managers and safety officers must carefully assess workplace hazards to select the appropriate combination of hard hat type and class. Manufacturer instructions can help guide the selection based on the risks in each environment.

Type I Hard Hats

Type I head-face protection hard hats are the most common type of helmets used on construction sites and in factories. They protect workers from things falling straight down onto their heads. The cap style front brim also helps shield the forehead from the sun and small debris.

Construction workers, electricians, and many manufacturing workers often use Type I hard hats because they provide effective protection against overhead hazards. The helmet’s suspension system spreads out the force of impact, lowering the risk of serious head injuries from falling tools or materials.

Type I hard hats are mainly used in traditional construction and industrial jobs where the main danger is objects falling from above. They don’t protect as well against hits from the side, like from moving equipment.

Type II Hard Hats

Type II full-brim hard hats give more protection than Type I. They guard against impacts from above and from the sides, which is important because hazards can come from any direction. These hard hats have a full brim that circles the whole helmet for extra coverage during tough jobs.

People working in oil and gas, utilities, and transportation often need the extra protection of Type II hard hats. Jobs such as tower climbing, operating heavy equipment, or working in confined spaces can expose workers to impacts from various angles, making added protection crucial.

Companies often test type II hard hats for their ability to withstand side impacts and for how well they stay in place with their chin straps. If your helmet comes with a chin strap, be sure to use it as the manufacturer recommends, especially when working actively or in windy areas.

Electrical Safety Classes

Electrical hazards are a serious risk in many workplaces. As such, creators classify hard hats by how much electrical protection they offer. They test each class to make sure it can handle certain voltage levels. Knowing these classes helps keep workers safe around electricity.

Electrical workers deal with different voltage levels depending on their job. The following three classes of hard hats ensure that workers receive the right protection for everything, from low to high-voltage systems.

Class G (General) Hard Hats

Class G hard hats, formerly known as Class A, protect against electrical shocks of up to 2,200 volts. They’re the most common type used in construction and general industry, giving solid protection for everyday electrical hazards.

Class G hard hats are suitable for construction workers, maintenance staff, and others who may occasionally work near live electrical equipment. They cover the most common electrical risks found in construction and manufacturing, helping both workers and safety officers feel confident about protection.

Construction sites typically specify Class G hard hats, like the Lift Safety HDF, as the minimum requirement for general workers. However, specialized electrical work may require higher levels of protection. Note that the manufacturer’s instructions indicate proper care and maintenance procedures to ensure the electrical insulation properties of the hard hat remain effective throughout the helmet’s service life.

Class E (Electrical) Hard Hats

Class E hard hats, previously designated as Class B, provide the highest level of electrical protection available in standard safety helmets. These protective helmets withstand electrical exposure of up to 20,000 volts to the head. They’re important for electrical utility workers and power line technicians who work directly with high-voltage systems.

Class E hard hats, like the HexArmor Full Brim Safety Helmet, are crucial for individuals working in electrical utilities, power plants, and high-voltage maintenance environments. Anyone servicing transmission lines or substations needs this level of protection to avoid serious electrical injuries.

The rigorous testing standards for Class E hard hats ensure reliable performance in the most demanding electrical environments. Workers must follow strict protocols when wearing these helmets, including regular inspection for any visible damage that could compromise the electrical insulation properties, and immediate replacement in case of any defects.

Class C (Conductive) Hard Hats

Class C hard hats don’t protect against electricity and may even have materials that conduct electricity. They’re only for impact and penetration protection, and are usually lighter and better ventilated for comfort.

The intended use of Class C hard hats includes welding operations, painting applications, and mechanical work where no electrical hazards are present. These environments benefit from the enhanced airflow and reduced weight that Class C construction allows, improving worker comfort during extended wear periods without compromising impact protection.

Workers and safety officers must clearly understand when Class C hard hats are appropriate, as using them in environments with electrical hazards can create serious safety risks. Proper hazard assessment ensures that Class C hard hats are only selected for workplaces where electrical protection is not required.

Hard Hat Materials and Construction

The material of a hard hat affects its protection, lifespan, and where it can be used. There are several materials to choose from, each with its own strengths for different jobs. Understanding these options can help you select the safest helmet for your needs.

Temperature extremes, chemical exposure, and impact requirements all influence material selection decisions. The expiration date marked on each helmet reflects the expected service life based on typical workplace conditions. However, harsh environments may require more frequent replacement to maintain protection levels.

HDPE (High-Density Polyethylene) Hard Hats

HDPE hard hats resist chemicals very well, so they’re great for tough industrial jobs where workers might face corrosive substances or chemical splashes. These helmets retain their protective qualities even when exposed to numerous chemicals, acids, and solvents commonly found in factories and processing plants.

HDPE hard hats also work well in cold weather, staying protective down to -30°C. This makes them a good choice for outdoor jobs in cold climates, cold storage, or anywhere extreme cold could affect helmet safety.

With a typical service life of 4 years under normal conditions, HDPE hard hats provide reliable long-term protection when you maintain them properly. The lighter weight construction reduces neck strain during extended wear, contributing to improved worker comfort and compliance with safety requirements.

Workers should check the manufacturing date and replace helmets according to the manufacturer’s recommendations to ensure continued protection.

ABS (Acrylonitrile Butadiene Styrene) Hard Hats

ABS hard hats are heavier and give better protection from impacts. Workers often use them in high-risk construction jobs where falling objects are a concern. The ABS material absorbs shocks well and spreads out the force to help prevent head injuries.

Hard hats, like the Portwest Height Endurance helmet with an ABS shell, are ideal for heavy construction, demolition, and other demanding jobs that require robust impact protection. Sites with cranes, steelwork, or other high-risk activities often require ABS hard hats for added safety.

Always consider temperature limitations when selecting ABS hard hats, as the material begins to degrade when exposed to high temperatures above 70°C. Workers in hot climates or near heat sources should be aware of these limitations and may need alternative materials for optimal protection in extreme conditions.

Thermoset (Duroplast) Hard Hats

Thermoset hard hats offer premium protective equipment with exceptional heat resistance capabilities. They maintain structural integrity at temperatures of up to 500°C. This extreme temperature resistance makes them perfect for workers in foundries, steel mills, and other high-temperature industrial environments where standard materials would fail.

The extended service life of thermoset hard hats, which can reach up to 10 years under normal conditions, provides excellent long-term value despite their higher initial costs. The superior UV resistance of thermoset makes them particularly suitable for outdoor applications where prolonged sun exposure would degrade other helmet materials.

Advanced material properties in thermoset hard hat construction include better durability against chemical exposure and physical wear. Workers in demanding industrial environments benefit from the extended replacement intervals and reliable protection that thermoset hard hats provide. This makes them a preferred choice for heavy industry applications.

International Safety Standards for Hard Hat Helmets

If you work in construction or manufacturing, you need to know the different safety standards for helmets. Each region has its own rules and testing methods, so companies in various countries must pay attention to these differences.

For instance, European EN standards offer alternative classification systems that provide different protection levels or testing requirements compared to ANSI standards. International construction projects must carefully verify which standards apply and ensure compliance with local regulatory requirements to maintain worker safety and legal compliance.

EN 397 Standard Hard Hats

EN 397 represents the most common European standard for industrial safety helmets, providing basic protection against falling objects and penetration hazards. This standard includes testing requirements that verify helmet performance under European conditions, with specific attention to temperature ranges commonly encountered in European industrial environments.

The operational temperature range for EN 397 helmets includes an optional low-temperature resistance of -20°C (sometimes -30°C) and an optional high-temperature resistance of up to +150°C. These optional electrical resistance tests assess protection against short-term contact with live wires of up to 440 V AC.

European construction sites and industrial facilities typically require EN 397 compliance as a minimum standard, with additional requirements based on specific workplace hazards and risks. Workers transitioning between ANSI and EN 397 environments should verify that their protective equipment complies with the applicable regional standards.

EN 14052 Enhanced Protection

EN 14052 provides superior impact resistance in high-risk industrial environments, particularly those involving molten metal hazards common in foundries and steel production facilities. This enhanced standard addresses specialized protection needs that exceed basic EN 397 requirements, ensuring adequate protection in extreme industrial conditions.

The improved side impact protection specified in EN 14052 goes beyond standard requirements. It provides comprehensive protection for workers in environments where lateral impacts pose significant risks. Steel mills, foundries, and heavy manufacturing facilities benefit from the additional protection levels that this standard provides.

Specialized applications requiring EN 14052 compliance include welding operations involving molten metal splashes and industrial processes where greater impact protection is imperative. Workers in these environments face unique hazards that require specialized protective equipment.

EN 50365 Electrical Specialists

EN 50365 addresses dedicated electrical protection requirements for utility workers and electrical maintenance personnel, providing protection up to 1000V AC or 1500V DC. This specialized standard ensures that electrical workers receive appropriate protection when working on or near energized electrical equipment in European environments.

The non-conductive materials used in helmet construction eliminate potential pathways for electrical current to give electrical utility workers reliable protection. The combination of electrical safety with standard impact protection makes EN 50365 helmets paramount for comprehensive worker protection in electrical environments.

European electrical utilities and maintenance operations typically require EN 50365 compliance for workers who may encounter electrical hazards. The specific voltage ratings and testing requirements ensure workers receive adequate protection based on the systems they work with.

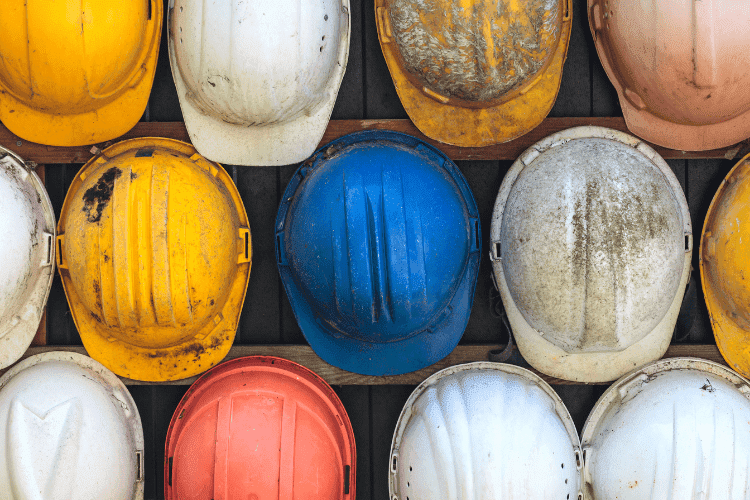

Hard Hat Color Coding Systems

Hard hat color coding helps people quickly identify who is responsible for what on a job site. There isn’t a universal color code, but many industries use common color meanings to make sites safer and improve communication.

The safety benefits of color coding extend beyond simple identification, enabling supervisors to quickly assess whether workers have the appropriate qualifications for specific tasks or areas. Emergency responders can also use color coding to identify various personnel during safety incidents or evacuations.

Common Construction Color Codes on Hard Hats:

• White: Identifies supervisors, site managers, engineers, and architects who have authority and responsibility for construction operations
• Yellow: Represents the most common color for general construction workers, laborers, and tradespeople performing routine tasks
• Blue: Worn by skilled workers, including electricians, plumbers, and mechanical fitters, who have specialized training and qualifications
• Orange: Frequently used to identify traffic marshals, security personnel, and workers in high-risk areas where visibility is crucial
• Green: Identifies safety officers, first aid personnel, and environmental specialists who have specific safety responsibilities
• Other Colours: Different colours used include black hard hats for senior management and directors

Special Features and Components of Hard Hats

Today’s hard hats have extra features for comfort, better use, and more protection. These upgrades can make workers more likely to wear their helmets. Choosing the right features is important for safety teams.

When using hard hats with other gear, such as face shields, hearing protection, or radios, ensure that everything works well together. The right combination helps keep workers safe and comfortable.

Suspension and Fit Systems

The suspension system represents one of the most critical components for both comfort and protection. This is because it maintains proper clearance between the worker’s head and the helmet shell. Advanced suspension systems effectively distribute impact forces while providing a secure and comfortable fit for extended wear periods.

Four-point, six-point, and eight-point suspension configurations offer different levels of stability and comfort, with higher point counts generally providing better weight distribution. Ratchet, wheel ratchet, and pin-lock adjustment mechanisms allow workers to achieve a proper fit while wearing gloves or in challenging conditions.

Sweatbands and comfort pads improve workers’ willingness to wear helmets by managing moisture and improving comfort during long work shifts. These components also help maintain hygiene standards when workers share helmets or when they use them in demanding environmental conditions.

Ventilation and Climate Control

Vented hard hat models feature air holes or channels to improve airflow and minimize heat buildup during hot weather or physically demanding work. Better ventilation can significantly improve comfort and reduce heat stress.

Non-vented designs, on the other hand, provide superior protection against chemical splashes, dust, and particulate matter that could enter through ventilation openings. The choice between vented and non-vented models depends on the specific environmental hazards present in each workplace.

Climate considerations must find a middle ground between worker comfort and environmental protection requirements. High temperatures and humidity levels may necessitate vented designs, while exposure to chemicals or dust may require sealed construction, regardless of comfort considerations.

Chin Straps and Retention

Chin strap options provide much-needed retention for workers in windy conditions, elevated work positions, or physically active environments where helmet displacement could create safety risks. Note that manufacturers include chin straps with their helmets, and OSHA regulations require workers to wear them as instructed.

Four-point suspension straps and other retention systems increase helmet stability during movement. This ensures that protective equipment remains properly positioned throughout the work shift. Proper retention is particularly important for workers using fall protection systems or working in confined spaces.

Quick-release mechanisms allow rapid helmet removal during emergency situations while maintaining secure retention during normal operations. These safety features balance the need for secure retention with the requirement for rapid equipment removal when necessary.

Hard Hat Selection Guidelines and Best Practices

Choosing the right hard hat starts with looking at all the risks in your workplace. Consider all potential hazards, including falling objects, electrical dangers, extreme temperatures, and chemicals that could compromise safety or damage the helmet.

Companies should integrate hard hats with other personal protective equipment to ensure compatibility and effectiveness. Face shields, hearing protection, communication equipment, and other accessories must work together seamlessly without compromising the protection that each component provides.

Manufacturers should establish regular inspection procedures to identify visible damage, wear patterns, or other conditions that could compromise helmet performance. Companies should train workers to recognize signs that indicate immediate replacement is required, including cracks, dents, or damage to the suspension system.

Replacement schedules based on the manufacturer’s recommendations, workplace conditions, and inspection findings help ensure that workers always have properly functioning protective equipment. Hard hats expire according to material properties and environmental exposure, making scheduled replacement vital for maintained protection.

Exposure to factors such as cold, chemicals, and sunlight can cause hard hats to wear out more quickly and impact their effectiveness. Keep these factors in mind when choosing a helmet to make sure it lasts and protects you on the job.

Frequently Asked Questions

How Long Do Hard Hats Last Before Replacement?

HDPE hard hats typically last 4 years, while thermoset models can last up to 10 years under normal working conditions. However, you should replace helmets immediately after any significant impact or if cracks are visible during inspection.

Always check the manufacturer's date stamp and follow your company’s replacement policies. UV exposure and extreme temperatures can accelerate material degradation, reducing the effective service life.

Can I Use Stickers or Paint on My Hard Hat?

Avoid using stickers and paint that may weaken the helmet material or hide potential cracks and damage. Chemical reactions from adhesives and paints can compromise the helmet’s structural integrity and electrical insulation properties.

Only use manufacturer-approved labels and marking systems. More importantly, always check the manufacturer’s instructions before applying any modifications to ensure the helmet maintains its protective capabilities.

What’s the Difference Between Bump Caps and Hard Hats?

Bump caps protect against minor bumps and scrapes from stationary objects in low-clearance areas, such as when working under vehicles or in confined spaces. Hard hats provide comprehensive impact protection against falling and swinging objects with much greater force.

Hard hats are required by OSHA for construction and industrial environments with overhead hazards, whereas bump caps are suitable only for environments without significant risks of falling objects.

Do Hard Hat Colors Have Universal Meanings?

No. A universal standard exists for hard hat color coding systems across all industries and companies. Color meanings vary significantly across different industries, company policies, and regional preferences. For example, white hard hats are commonly used to identify supervisors in construction. However, other companies may use different colors for management roles.

Always verify color meanings with site management or safety officers before assuming worker roles or responsibilities based solely on helmet color.

Are Chin Straps Mandatory on Hard Hats?

OSHA requires chin straps to be worn if the hard hat is designed and equipped with them by the manufacturer. Not all hard hats come with chin straps, but when they’re provided as part of the helmet design, workers must use them according to the manufacturer’s recommendations.

Chin straps prevent helmets from falling off during windy conditions, physical activity, or when working at heights. Some specialized work environments may require chin straps for additional safety, regardless of manufacturer specifications.

Conclusion

Understanding the types of hard hats, their classifications, and uses is vital for on-site safety. Each class offers different safety features suited to various risks, including impact protection and electrical hazards. Choosing the right hard hat for the job and properly maintaining it reduces the risk of injuries. With the above guide, making the right choice is simple.
