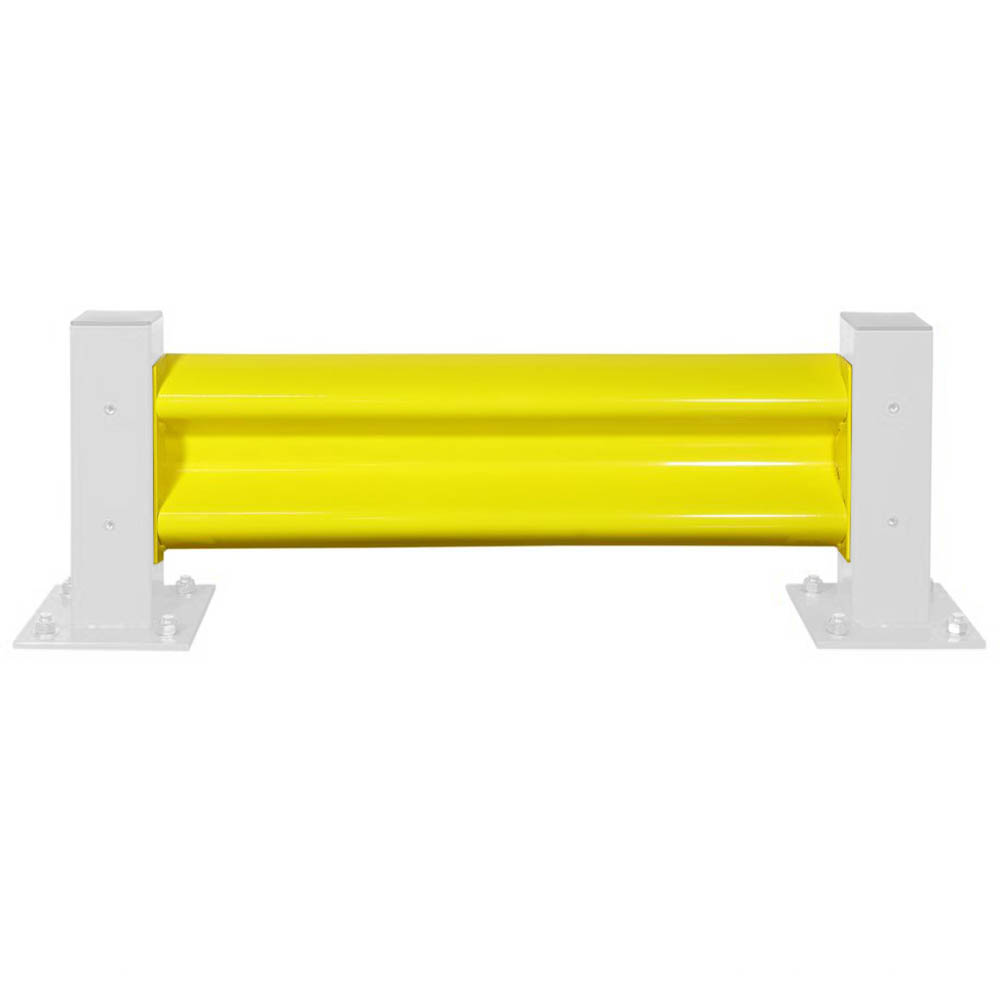

The Worldwide Material Handling guard rail is designed to create flexible, high-visibility barriers in warehouses and industrial facilities. This 8-foot rail system features a 12-inch high, 1/8-inch thick, double-ribbed rail that pairs with a 4-way post, allowing holes punched on all sides for versatile barrier configurations—useful for protecting machinery, walkways, and inventory while accommodating in-plant offices and personnel workflow. The system is powder-coated in safety yellow to enhance visibility across busy environments and contribute to safer navigation of workspace perimeters.

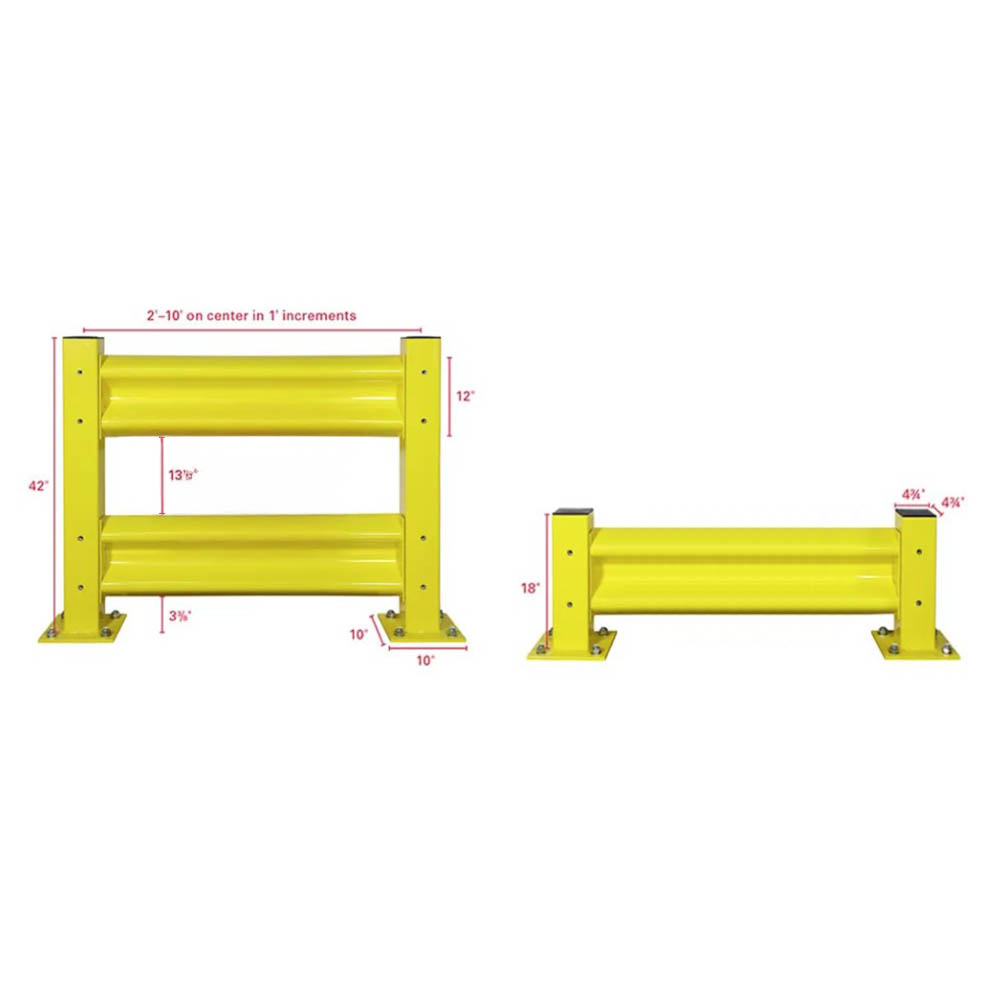

The post specifications include a 4 3/4 inch by 4 3/4 inch cross-section with a 3/16-inch thickness and a 10 by 10 by 1/2-inch footplate. The rail length can be set from 2 to 10 feet on post centers, in 12-inch increments, enabling customization to fit existing layouts. There are four anchor holes (7/8 inch diameter) on the posts to accept 3/4 inch anchors, with high-impact posts caps and snap-in button plugs included to help maintain barrier integrity. A notable design feature is the post’s four-way versatility, which supports various configurations as needs change in a facility.
Practical considerations include the option for custom rail lengths and the inclusion of protective features that contribute to durable, long-term use in demanding environments. When planning installations, verify that the rail length and post height align with your traffic flow, equipment clearance, and safety standards for your facility. This product is listed as a guard rail component suitable for industrial safety applications, with overall dimensions and weight reflecting a sturdy, steel-based construction designed for straightforward field assembly and maintenance.
Features:
- 12" high x 1/8" thick, double-ribbed rail design
- Post: 4-way designed, punched on all sides for versatility
- Footplate: 10" x 10" x 1/2" thick with four 7/8" dia. anchor holes
- Rail lengths from 2' to 10' on post centers in 12" increments
- Impact rating: 12,000 lbs at 4 mph
- Post caps and snap-in plugs included
- Powder coated safety yellow for high visibility
- Custom rail lengths available
- Height:
- 12
- Material:
- Steel
- Color:
- Yellow
- Length:
- 8'
- Actual Length:
- 91.28
- Weight:
- 64
- Package Size:
- Each
