The Worldwide Material Handling Guard Rail is a robust, 42-inch high industrial safety barrier designed to aid in protecting personnel, equipment, and walkways in warehouse environments. This guard rail features a four-way designed post, with holes punched on all sides to allow flexible layout options and easy integration into existing or new barrier configurations. The posts are 4.75 inches square with a 3/16-inch thickness, and each system includes a 10x10-inch, 1/2-inch-thick footplate for stable anchoring. The standard rail is a 12-inch high, 1/8-inch-thick, double-ribbed design, paired with yellow powder coating for high visibility in busy facilities.
Constructed from steel, this guard rail supports versatile installations across a range of lengths, from 2 feet to 10 feet on post centers, with 12-inch increments, and offers a substantial impact rating of 12,000 pounds at 4 mph. The package includes high-impact post caps and snap-in button plugs, helping maintain a clean, continuous barrier line. Custom rail lengths are available to fit unique floor plans, and the component features multiple anchor holes (4) 7/8 inch in diameter to accommodate 3/4 inch anchors sold separately, facilitating secure mounting in varied floor substrates.
Recommended uses include delineating safety perimeters around machinery, protecting walkways, and creating barricades for in-plant offices or inventory zones. Practical considerations include ensuring appropriate anchor hardware is selected for your concrete or other substrates, and confirming posted height and rail spacing align with operational requirements. The powder-coated safety yellow finish enhances visibility, which can contribute to overall site safety strategy, while the four-way post design provides layout flexibility to meet changing facility needs.
Features:

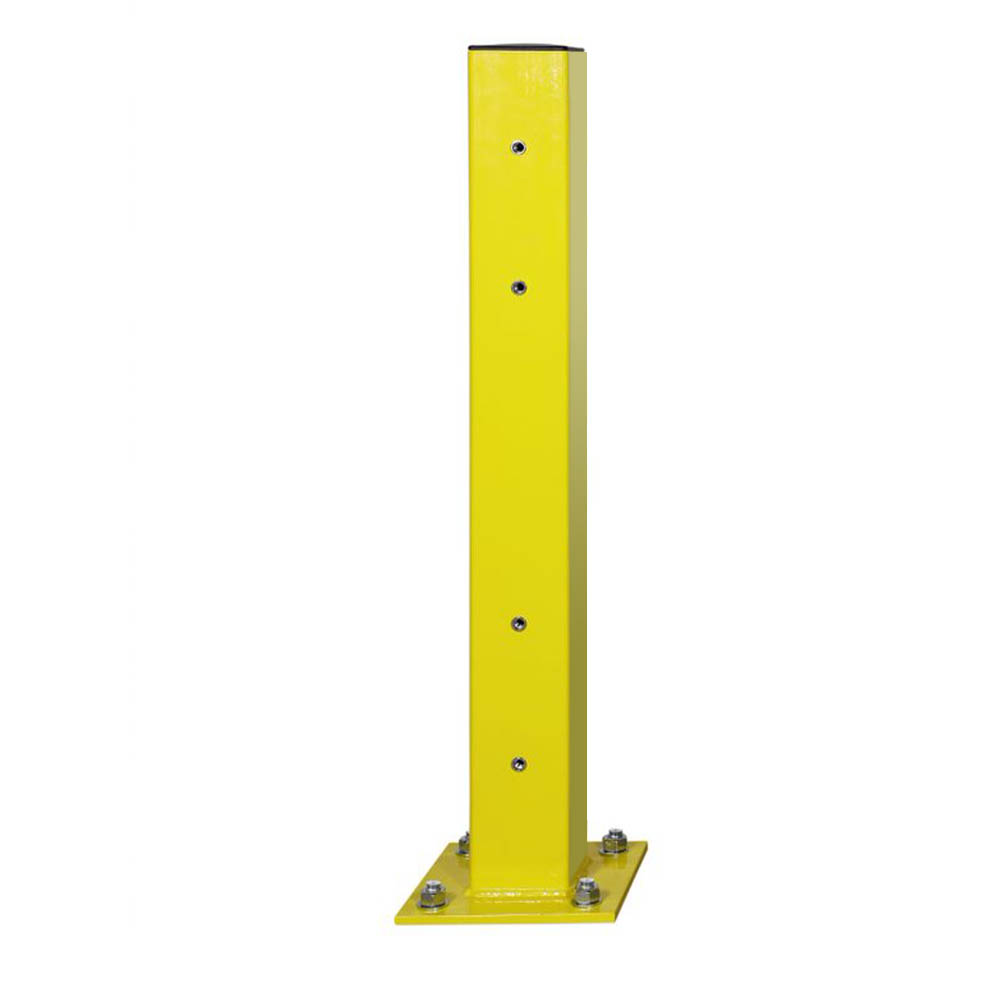

- 43/4" x 43/4" x 3/16" post (4.75" x 4.75")
- Posts available in 42" or 18" heights
- 4-way designed post, punched on all sides
- 10" x 10" x 1/2" footplate
- 4 x 7/8" dia. anchor holes for 3/4" dia. anchors (sold separately)

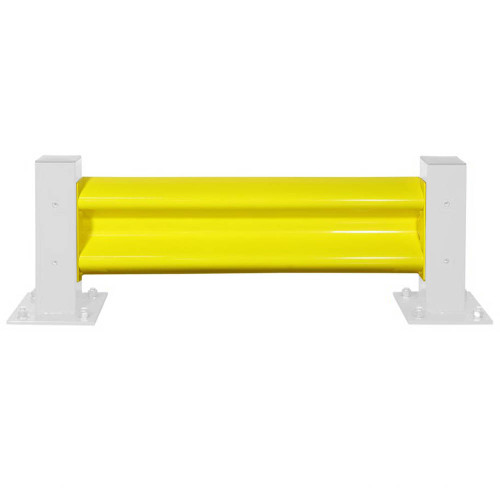

- 12" high x 1/8" thick double-ribbed rail

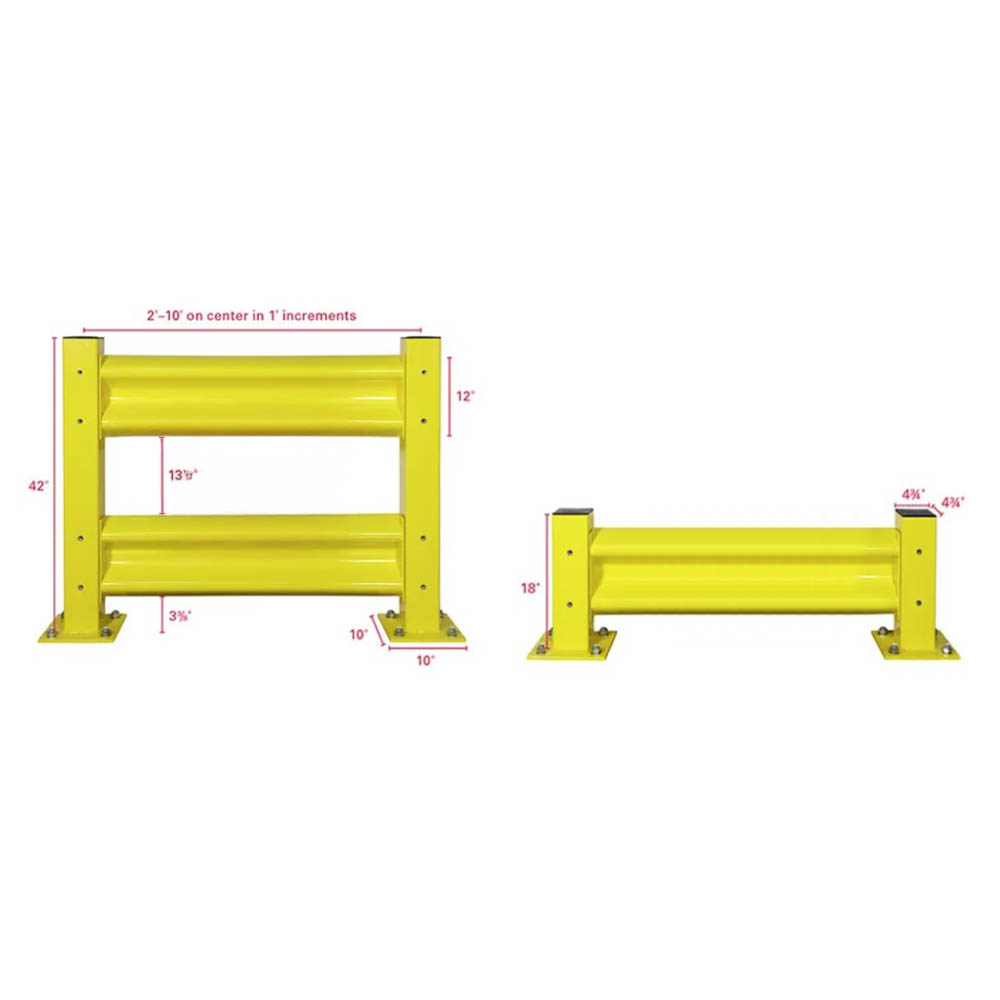

- Rail lengths 2'–10' on center, in 12" increments
- Impact rating 12,000 lbs at 4 mph
- Includes high-impact post caps and snap-in plugs
- Powder coated safety yellow for visibility
- Custom rail lengths available
- Height:
- 42
- Material:
- Steel
- Color:
- Yellow
- Post Dimensions:
- 4.75X4.75
- Foot Plate:
- 10X10
- Weight:
- 52 lbs
- Package Size:
- Each
