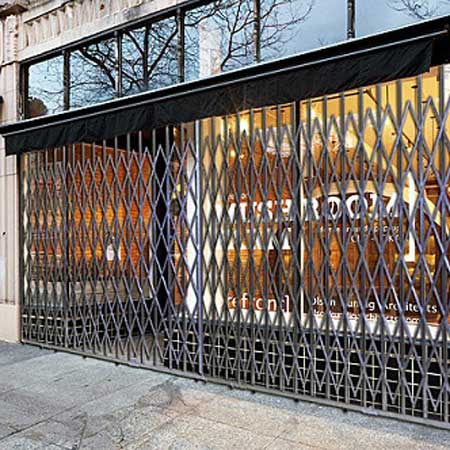

The Illinois Engineered Products HYB-SPCL-SFO-5470 is a full-width security gate designed to section off areas within warehouses or storefronts. With a 54-inch width and 7-foot height, it provides a continuous barrier that helps deter unauthorized access while allowing visibility and airflow. The gate combines vertical bars that ride in tracks with a traditional scissor lattice, delivering both coverage and deterrence against intrusion. It ships unassembled and includes a robust frame construction to support frequent expansion and retraction, and it is designed to operate in a range of indoor and outdoor conditions.
Constructed from galvanized steel, the gate uses a 1-1/4 inch by 5/8 inch 14-gauge C-channel steel frame with rubber grommet feet, paired with 3/8 inch by 3/4 inch 14-gauge U-channel steel lattice and reinforced with zinc-plated rivets. The top and bottom tracks are 1-7/8 inch by 1-3/8 inch 11-gauge box channels, providing stability and smooth motion during operation. A padlock hasp is included as a standard locking option, with an integrated cylinder lock available as an upgrade. Finishing options include galvanized steel with powder coat colors available on request to suit site aesthetics or corrosion considerations.
Ideal use cases include securing warehouse entrances, protecting storefront perimeters, or creating controlled access corridors without permanently sacrificing space. When planning installation, consider the 176-pound weight and the need for appropriate mounting surfaces and track alignment to ensure smooth expansion and retraction. The product is described as non-returnable, and one-year manufacturer warranty coverage applies from the date of purchase. Verify compatibility with your site’s mounting structure and available track configurations, as top and bottom track styles can vary to fit specific space requirements.
Features:
- Hybrid design combines vertical bars and scissor gates for complete coverage
- Indoor and outdoor use; resistant to heat, rain, snow, and harsh chemicals
- Top and bottom track styles available; other sizes supported
- 1-year manufacturer warranty
- Galvanized steel construction with optional powder coat colors
- Padlock hasp standard; integrated cylinder lock optional
- Width:
- 54
- Height:
- 7'
- Max Width:
- 40
- Top Frame Style:
- Fixed
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 176 lbs
- Package Size:
- Each
