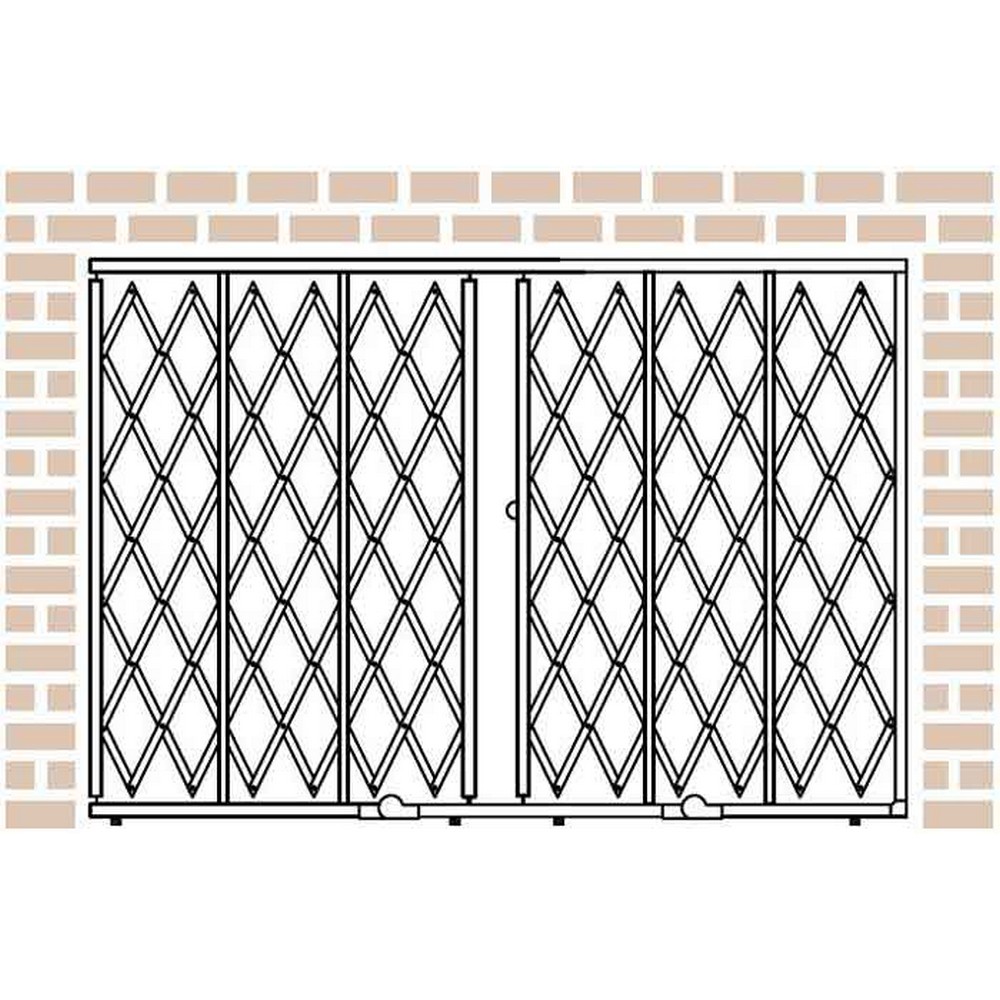

The Illinois Engineered Products HYB-SFSP-CL-5470 is a full-width storefront security gate designed to segment warehouse areas or shield storefronts with a single, continuous barrier. This unit spans 54 inches in width and stands 7 feet 1 inch tall, creating a sizable deterrent while preserving access control. It combines vertical bars that ride in tracks with a scissor-lattice section, delivering configurable coverage that supports secure, quick opening and closing in busy environments. The assembly ships unassembled but is engineered for straightforward installation and smooth operation when expanding or retracting the gate.
Constructed for durability in challenging conditions, the gate uses galvanized steel with 14-gauge components and reinforced top/bottom tracks. Its frame is built from 1-1/4 inch by 5/8 inch 14-gauge C-channel steel with rubber feet, while the lattice employs 14-gauge U-channel steel and zinc-plated rivets, ensuring rigidity and resistance to tampering. A padlock hasp is included for basic locking, with an integrated cylinder lock option available, enabling flexible security configurations. Finishes include galvanized steel with optional powder coat colors upon request, and the unit is rated for both indoor and outdoor use, including exposure to heat, rain, snow, and typical industrial cleaners.
This product is categorized as a Storefront Security Gate - Single Gate and ships unassembled, with a weight of approximately 140 pounds and a 1-year manufacturer warranty. Practical considerations include selecting the appropriate top/bottom track style and confirming compatibility with existing mounting surfaces. Users should verify site measurements against the 54-inch width and 7-foot-1-inch height to ensure adequate clearance and that the maximum usable width aligns with space constraints. The unit’s documented construction and hardware choices matter because they influence installation effort, long-term stability, and ability to withstand daily cycling and environmental exposure.
Features:
- Hybrid design: vertical bars plus scissor gate for full coverage
- Resilient in all conditions: indoor/outdoor use, resistant to heat, rain, snow, and chemicals
- Top & bottom track styles available and other sizes offered
- Padlock hasp standard; integrated cylinder lock optional
- Galvanized steel construction with available powder coat finish
- Sturdy 1-1/4" x 5/8" 14 gauge C-channel frame; 3/8" x 3/4" 14 gauge U-channel lattice
- Ships unassembled for easy handling and shipping
- Width:
- 54
- Height:
- 7'1
- Max Width:
- 40
- Top Frame Style:
- Fixed
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 140 lbs
- Package Size:
- Each
