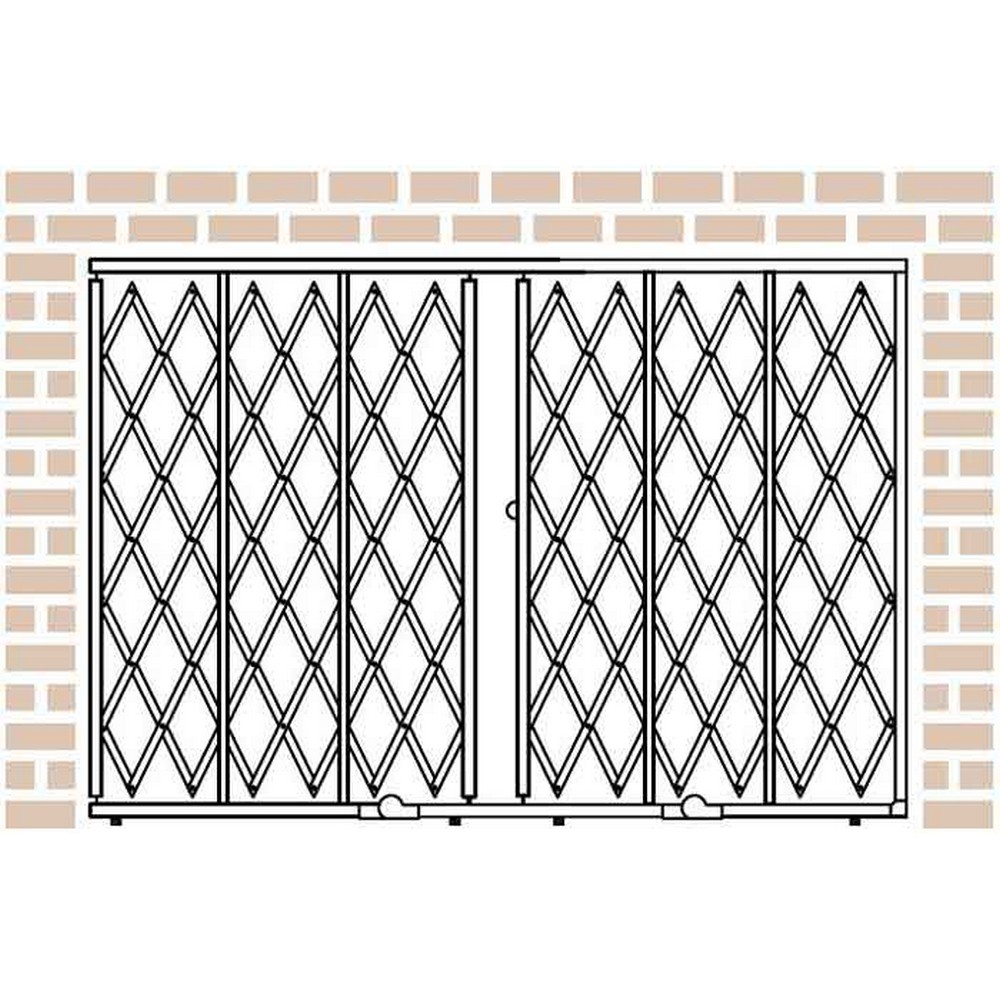

The Illinois Engineered Products HYB-PFSP-CL Hybrid Pair Gate is a full-width storefront-style security gate designed to secure open spaces in warehouses or storefronts. This pair gate combines vertical bars that ride in tracks with a scissor lattice to deliver continuous coverage and enhanced loss prevention. The unit is configured as a pair gate with an 8-foot width and a 9 feet 6 inches height, offering a robust barrier that can be deployed quickly and expanded or retracted as needed. The gate ships unassembled and includes a galvanized steel frame with a top and bottom track design, providing stable guidance during operation. The structure uses 14-gauge steel components (1-1/4" x 5/8" C-channel frame and 3/8" x 3/4" L-channel lattice) and zinc-plated rivets, resulting in a durable, industrial-grade barrier suitable for demanding environments. A padlock hasp is provided as a standard locking option, with an integrated cylinder lock available as an upgrade, and the finish can be galvanized or powder-coated in available colors by request. This model is described as suitable for indoor or outdoor use and resistant to heat, rain, snow, and harsh chemicals typical in industrial settings.
Features:
- Hybrid design: vertical bars with scissor gates for full coverage and security
- Weather and chemical resistant construction suitable for indoor/outdoor use
- Top fixed frame with folding bottom for flexible access
- Standard padlock hasp; integrated cylinder lock option available
- Galvanized steel with powder coat finish options on request
- Top & bottom track styles available; ships unassembled
- 1-year manufacturer warranty
- Width:
- 8'
- Height:
- 9'6
- Max Width:
- 8'
- Top Frame Style:
- Fixed
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 200 lbs
- Package Size:
- Each
