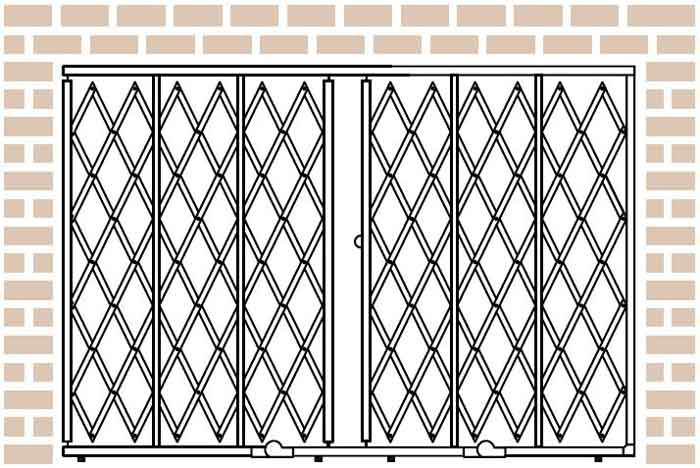

The Illinois Engineered Products HYB-PFSP-CL3085 Storefront Security Hybrid Pair Gate is a full-width security solution designed to section off warehouse or storefront areas. Sold as a pair gate, it combines vertical bars riding in tracks with a traditional scissor lattice to provide continuous coverage across wide openings. This setup supports rapid deployment and easy installation, enabling quick creation of secure perimeters as needs change. The unit is configured as a fixed top with a folding bottom, accommodating a maximum width of 30' while the gate itself stands 8'6" tall, with the lattice and frame materials chosen for industrial environments.

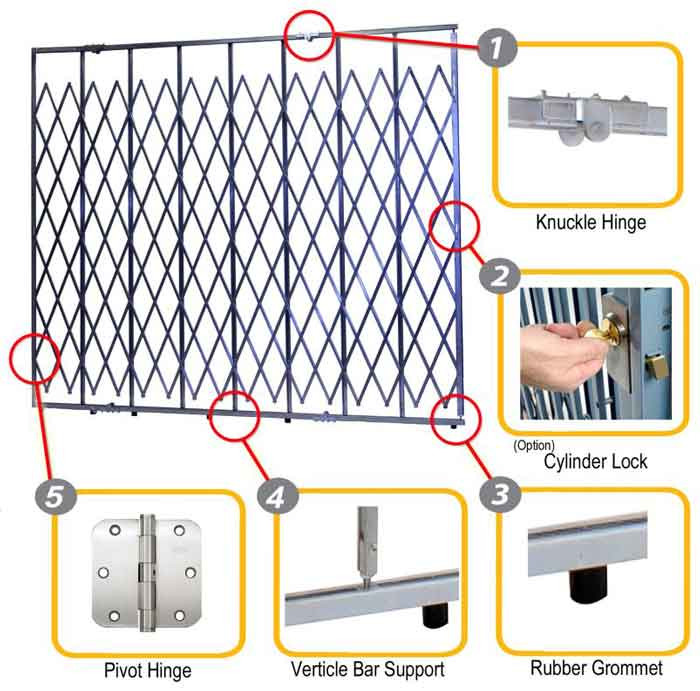

Construction and distinguishing features include a galvanized steel finish with option for powder coating on request, 14-gauge and 1-1/4" x 5/8" C-channel steel framing, and a lattice composed of 14-gauge U-channel steel paired with zinc-plated rivets. The system ships unassembled and includes a standard padlock hasp for locking, with an integrated cylinder lock available as an option. The top and bottom track styles are designed to support smooth operation in both expansion and retraction, while a robust track profile helps ensure consistent alignment and security across the gate width.

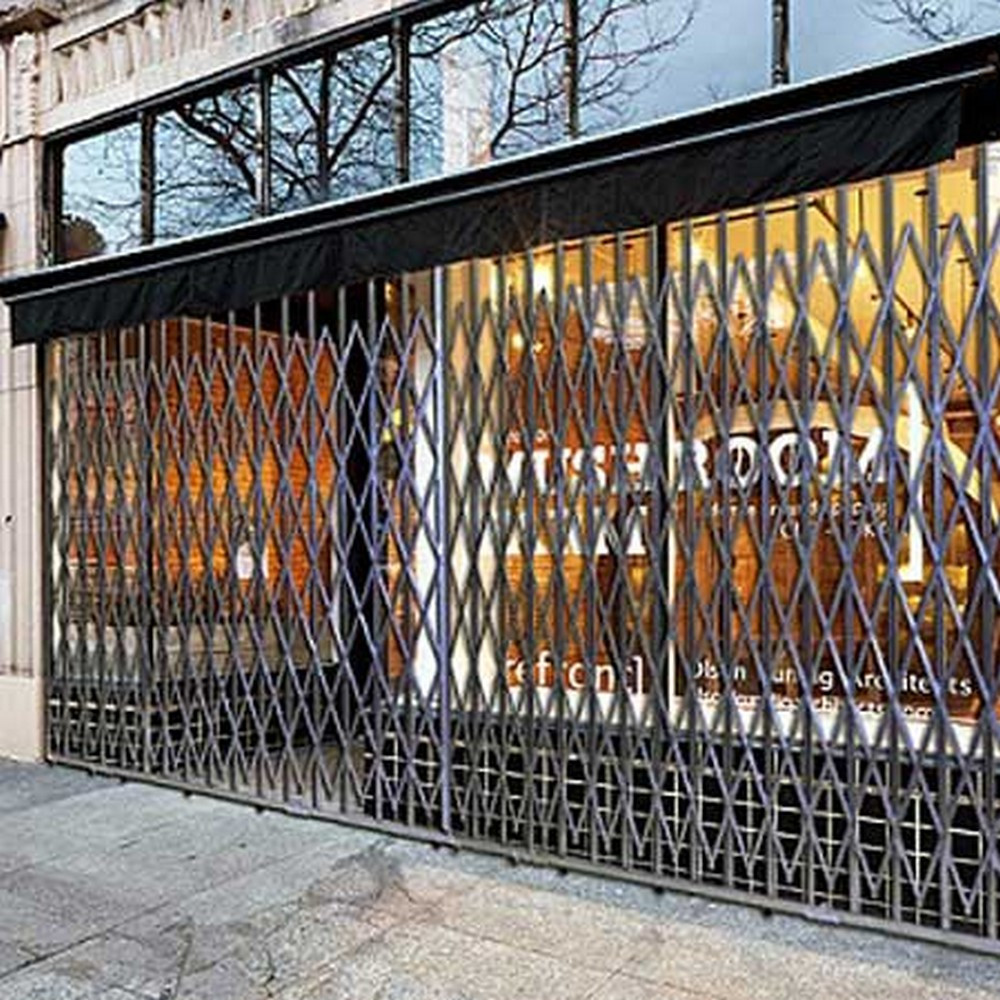

Practical use cases include securing storefronts, shielding inventory, and delineating secure zones within warehouses. The design supports indoor or outdoor installation and is built to withstand exposure to heat, rain, snow, and harsh industrial cleaners. When planning installation, note the maximum expandable width of 30' and the fixed top configuration, with the pair gate providing continuous coverage across wide entrances. Maintenance considerations include periodic checks of track alignment, fasteners, and locking hardware to maintain reliable operation over time.
Features:
- Hybrid design combines vertical bars with scissor gates for total coverage
- Indoor or outdoor use with resistance to extreme conditions
- Fixed top and folding bottom options for flexible operation
- Galvanized steel construction with options for powder coat finish
- Padlock hasp included; integrated cylinder lock optional
- Ships unassembled for precise field installation
- Top & bottom track styles and additional sizes available
- Width:
- 16'
- Height:
- 8.5'
- Max Width:
- 30'
- Folded Lattice Height:
- 8.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 8'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Package Size:
- Each
