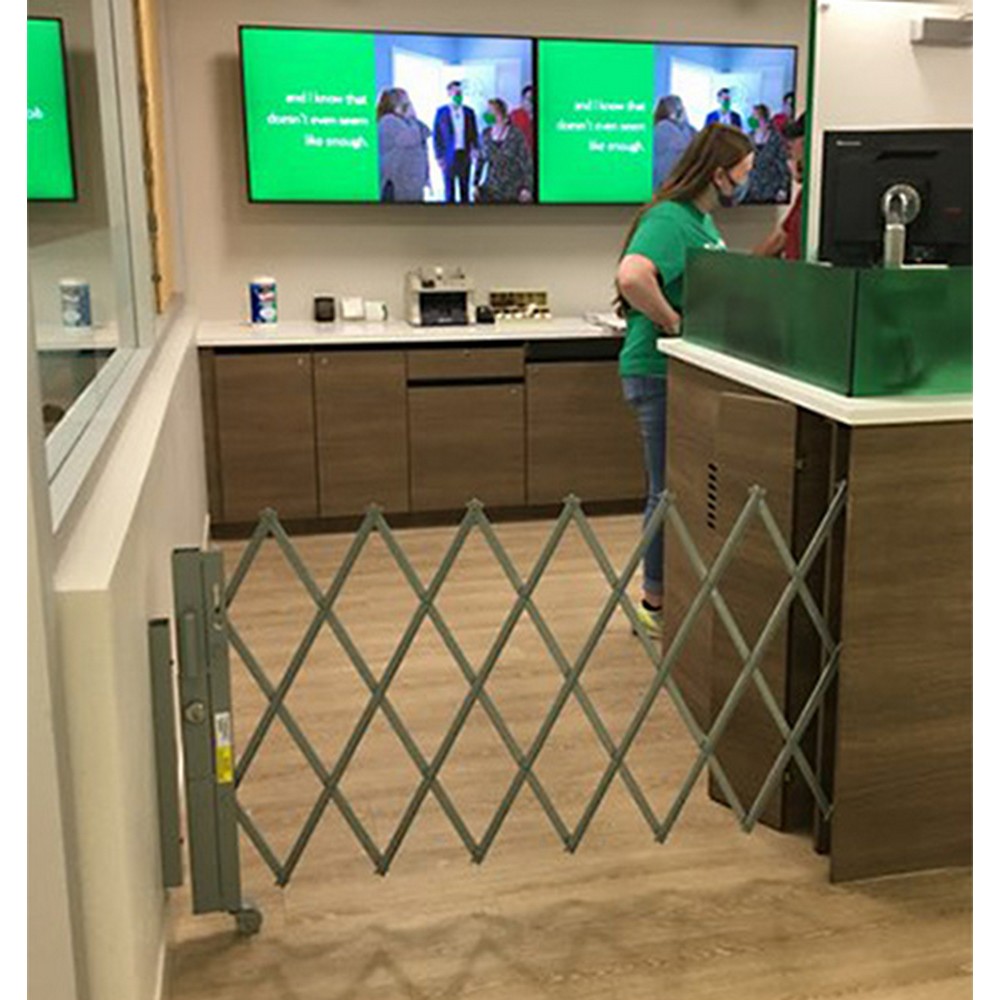

The Illinois Engineered Products SSG485-ANG is a single retractable folding gate designed to secure openings such as loading docks, hallways, and service doors while preserving light and airflow. The gate features a heavy-duty construction that includes a 12-gauge steel vertical frame paired with 14-gauge steel lattice webbing, all finished in galvanized coating for durability and corrosion resistance. When retracted, the gate pivots on its mounting hardware to move completely out of the doorway, minimizing obstruction and maintaining access when not in use. The design accounts for a 6-inch height drop when extended, a characteristic that is important for ensuring a proper fit within confined spaces and for planning clearance during operation. The unit ships unassembled and includes mounting brackets, a bearing washer, and a solid steel caster to simplify installation, while padlock compatibility is supported by a gate lock with padlock hasp. Lag bolts are not included, allowing for site-specific mounting decisions.
Features:
- Secure doors, hallways, and entryways while maintaining light and air circulation
- Heavy-duty 12-gauge steel vertical frame with 14-gauge steel webbing
- Galvanized finish for durability, rust resistance, and easy cleaning
- Retracted design pivots to move completely out of the way
- Height adapts from collapsed 8'6" to expanded 8' with 3'–4' width options
- Includes mounting brackets, bearing washer, and solid steel caster (lag bolts and padlock not included)
- Width:
- 3' to 4'
- Height:
- 8' 6
- Depth:
- 11 stacked
- Fits Widths:
- 3' to 4'
- Expanded Height:
- 8'
- Collapsed Height:
- 8' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 70.0 lbs. ea.
- Package Size:
- Each
