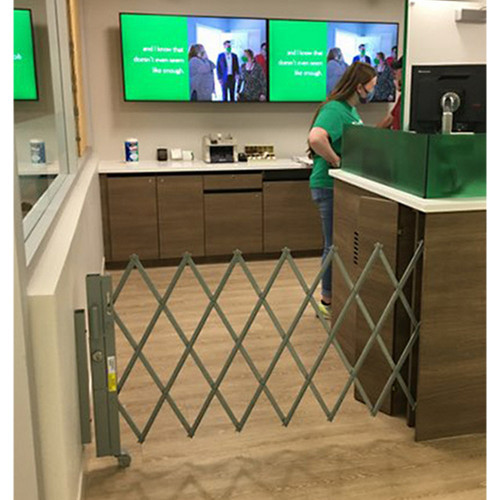

The Illinois Engineered Products SSG985-ANG is a single, retractable folding gate designed to secure openings such as loading docks, garage and service doors, hallways, and entryways while preserving light, airflow, and visibility. It is a heavy-duty solution built around a 12-gauge steel vertical frame with 14-gauge steel webbing, finished in galvanized material for corrosion resistance and easier cleaning. When retracted, the gate pivots on its mounts to clear the opening, and its height reduces by 6 inches when extended, providing a compact profile when not in use. Included components such as mounting brackets, a bearing washer, and a solid steel caster facilitate installation, while a padlock hasp-equipped gate lock and a lockable drop pin offer security options; note that lag bolts and the padlock itself are not included.
Measured for 8 to 9 feet wide openings, this model sits at 8 feet 6 inches in collapsed height and 8 feet in expanded height, with a depth of approximately 15 inches when stacked. The lattice uses heavy-duty 14-gauge steel U-channel webbing riveted to aircraft-grade aluminum rivets, delivering a sturdy, rigid barrier that still allows light and air to pass through the opening. While the description emphasizes security and visibility, the design prioritizes ease of use in busy environments by enabling quick opening and closing without sacrificing access. The unit ships unassembled and is suitable for facilities seeking a controlled access point that can be reliably retracted when not needed. The finish and construction support durability in industrial settings, with options for custom powder coating available upon request.
Features:
- Secure doors, hallways, and entryways while allowing light and air circulation
- Sturdy 12-gauge steel vertical frame with 14-gauge steel webbing
- Galvanized finish for durability, rust resistance, and easy cleaning
- Retracts completely out of the way on its mounts
- Height adjusts from 8'6" collapsed to 8' expanded upon extension
- Ships unassembled with mounting brackets, bearing washer, and solid steel caster
- Width:
- 8' to 9'
- Height:
- 8' 6
- Depth:
- 15 stacked
- Fits Widths:
- 8' to 9'
- Expanded Height:
- 8'
- Collapsed Height:
- 8' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 115.0 lbs. ea.
- Package Size:
- Each
