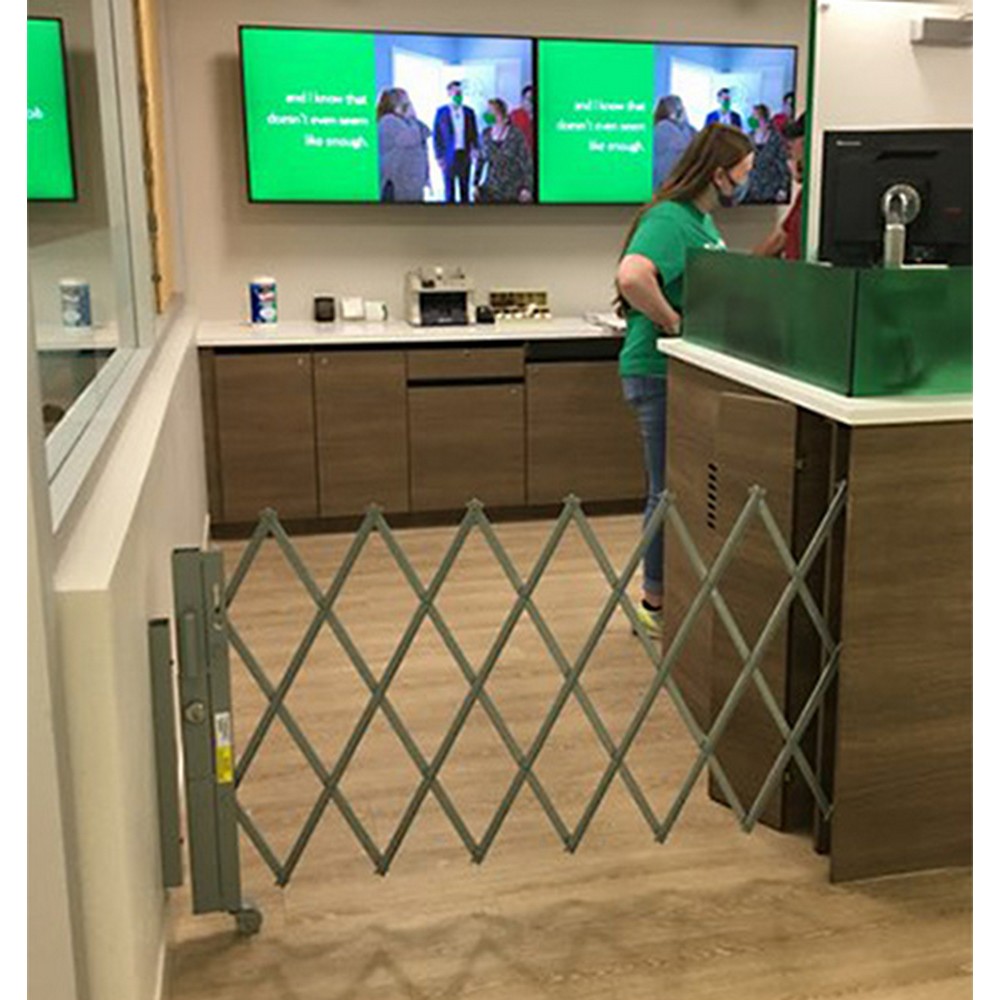

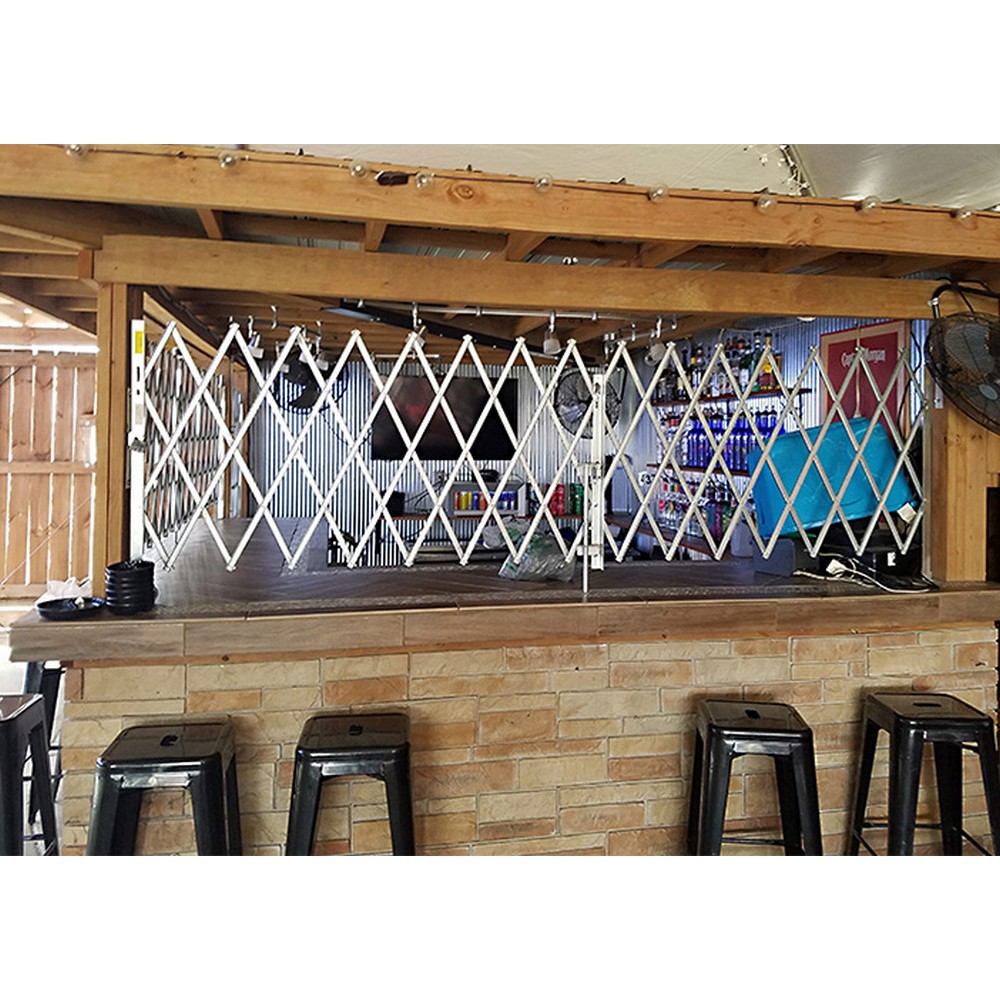

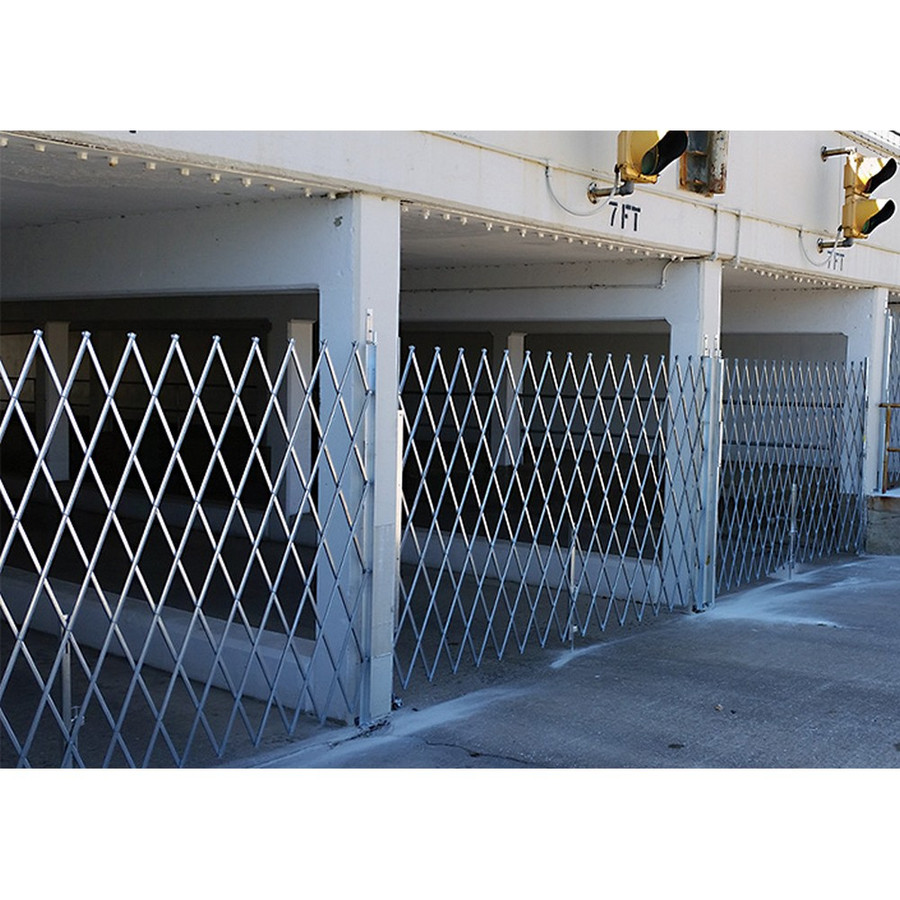

The Illinois Engineered Products SSG885-ANG Retractable Folding Gate is a single-gate solution designed to secure openings such as loading docks, doors, and hallways while preserving visibility and airflow. The gate retracts on its mounts to lie completely out of the way when access is required, helping to maintain site circulation without sacrificing surveillance or access control. When extended, it reduces height by 6 inches, a detail to consider for doorway clearance and fit within existing openings. The unit weighs about 95 pounds and ships unassembled with installation hardware included, so you can prepare mounting points and secure the gate in place to match your doorway or passage dimensions.
Constructed for durability, the gate features a heavy-duty 12-gauge steel vertical frame paired with 14-gauge steel lattice webbing. The galvanized finish provides rust resistance and easier cleanup, while the welded, riveted webbing and aircraft-grade rivets contribute to a robust opening barrier. The design includes a padlock hasp for added security and a lockable drop pin to help lock the gate in position when needed. Important installation considerations include the included mounting brackets, bearing washer, and solid steel caster, with the note that lag bolts and the padlock are not included.
This single-gate configuration is intended for mounting in widths of 7 to 8 feet and up to an 8' 6" collapsed height, expanding to 8' high. Its purpose is to secure spaces without completely blocking light or air flow, making it suitable for facilities that require controlled access with ongoing ventilation and visibility. Custom powder coating is available on request to suit specific aesthetic or environmental requirements. The unit ships unassembled and requires proper mounting hardware and installation, aligning with typical facility-maintenance gate installations.
Features:
- Secure doors, hallways, and entryways while allowing light and air circulation
- Heavy-duty 12-gauge steel vertical frame with 14-gauge steel webbing
- Galvanized finish for durability and easier cleaning
- Retracts completely out of the way on its mounts
- Gates lose 6" in height when extended
- Includes mounting brackets, bearing washer, and solid steel caster
- Width:
- 7' to 8'
- Height:
- 8' 6
- Depth:
- 11 stacked
- Fits Widths:
- 7' to 8'
- Expanded Height:
- 8'
- Collapsed Height:
- 8' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 95.0 lbs. ea.
- Package Size:
- Each
