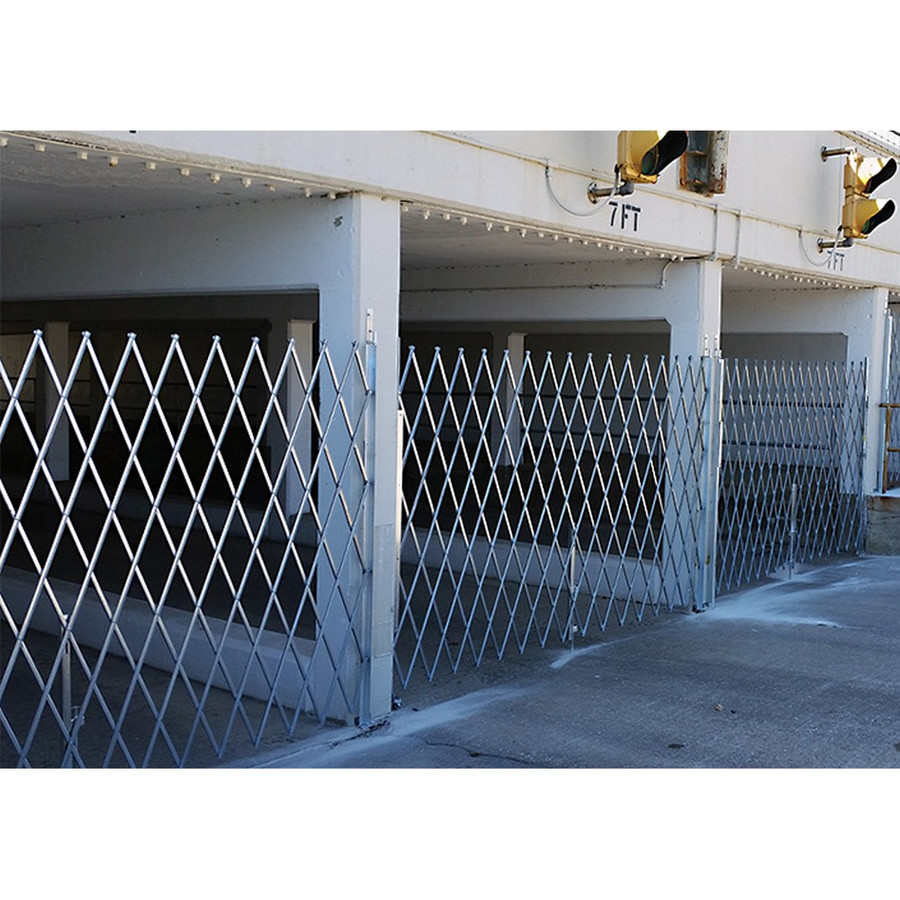

The Illinois Engineered Products SSG1185-ANG Retractable Folding Gate is designed to secure loading docks, doors, hallways, and entrances while preserving visibility and air flow. This single-gate model provides controlled access with a galvanized, heavy-duty frame and lattice that supports light passage and ventilation through openings, helping maintain a safe, monitored entry point without full obstruction.
Constructed around a sturdy 12-gauge steel vertical frame paired with 14-gauge steel webbing, the gate features a galvanized finish for durability and easier cleaning, plus a design that pivots on its mounts to retract completely out of the way when not in use. The system accounts for a 6-inch height reduction when extended, ensuring a compact footprint when deployed and clear passage when retracted. Each unit ships unassembled with mounting brackets, bearing washer, and solid steel casters included for straightforward installation; lag bolts and padlock are not included, giving you the option to select securing hardware that fits your site requirements.
Typical applications include securing receiving doors, lift-up doors, hallways, and entryways where you still want light and air to circulate. The product is listed as a single gate with a 10 to 11-foot width capacity, an expanded height of 8 feet and 6 inches, and a collapsed height of 8 feet. The assembled weight is approximately 120 pounds per unit, and the design accommodates a 15-inch stack depth when fully folded. This configuration supports facilities that need dependable, visible, and adjustable access control without compromising ambient conditions.
Features:
- Secures doors, hallways, and entryways while allowing light and air to circulate
- Heavy-duty 12-gauge steel vertical frame with 14-gauge steel webbing
- Galvanized finish for durability and rust resistance
- Retracted gate pivots to move completely out of the way
- Height changes: expands to 8' high, collapses to 8'6" high (gate loses 6" when extended)
- Easy installation with mounting brackets, bearing washer, and solid steel caster included
- Lag bolts and padlock not included
- Width:
- 10' to 11'
- Height:
- 8' 6
- Depth:
- 15 stacked
- Fits Widths:
- 10' to 11'
- Expanded Height:
- 8'
- Collapsed Height:
- 8' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 120.0 lbs. ea.
- Package Size:
- Each
