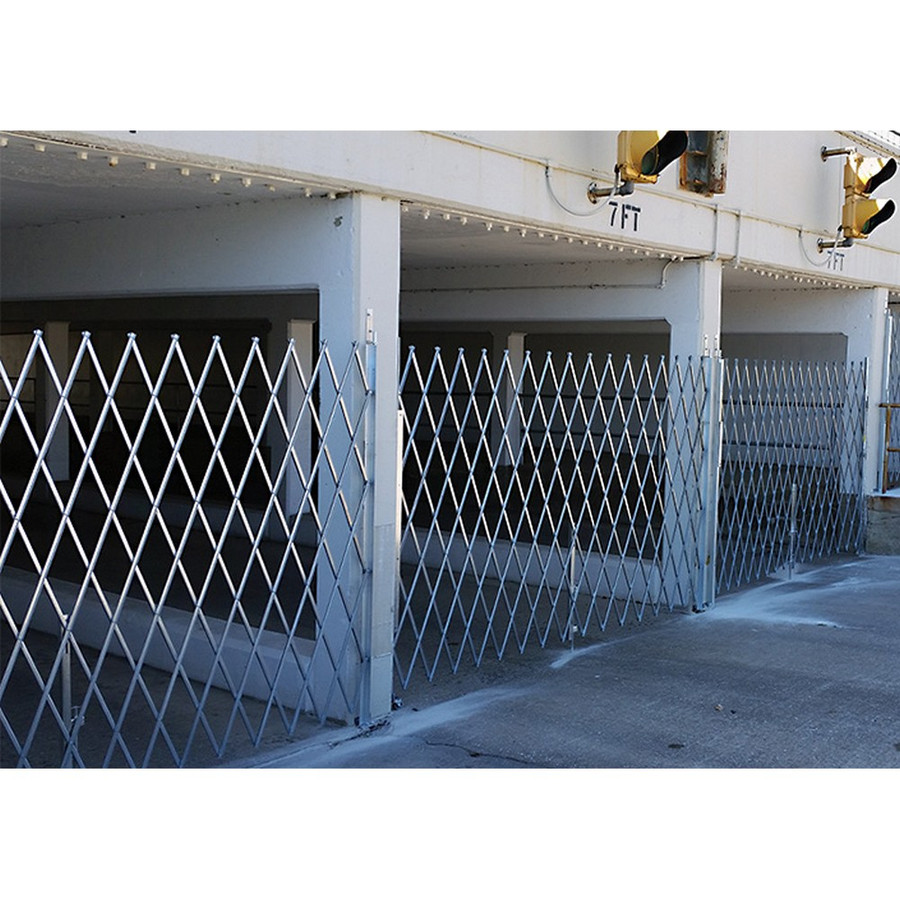

The Illinois Engineered Products SSG1085-ANG retractable folding gate is designed to secure open-loading and entry points without obstructing airflow or visibility. This single-gate assembly provides controlled access at docks, service doors, hallways, and entrances while allowing light and air to pass through the opening. When retracted, the gate moves completely out of the way, helping maintain clear access and reducing sightline obstructions in busy work areas.
Constructed for durability, the gate features a heavy-duty 12-gauge vertical frame paired with 14-gauge steel webbing. The galvanized finish delivers added rust resistance and easier cleaning, supporting use in environments where moisture and frequent cleaning are common. A lattice arrangement of heavy-gauge U-channel webbing is riveted with aircraft-quality rivets, contributing to a robust balance of rigidity and lightweight operation. The design is meant to stay aligned and functional through repeated cycles, with a solid steel caster assisting smooth movement and positioning. Note that the assembly ships unassembled and includes mounting brackets, a bearing washer, and a solid steel caster; lag bolts and padlock are not included.
This model measures 9' to 10' in width with a fixed height of 8' 6
Features:
- Secure doors and hallways while allowing light and airflow
- Heavy-duty 12-gauge steel vertical frame with 14-gauge webbing
- Galvanized finish for durability and easy cleaning
- Retracts and pivots to clear the opening
- Height reduces by 6" when extended
- Includes mounting brackets, bearing washer, and solid steel caster
- Width:
- 9' to 10'
- Height:
- 8' 6
- Depth:
- 15 stacked
- Fits Widths:
- 9' to 10'
- Expanded Height:
- 8'
- Collapsed Height:
- 8' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 115.0 lbs. ea.
- Package Size:
- Each
