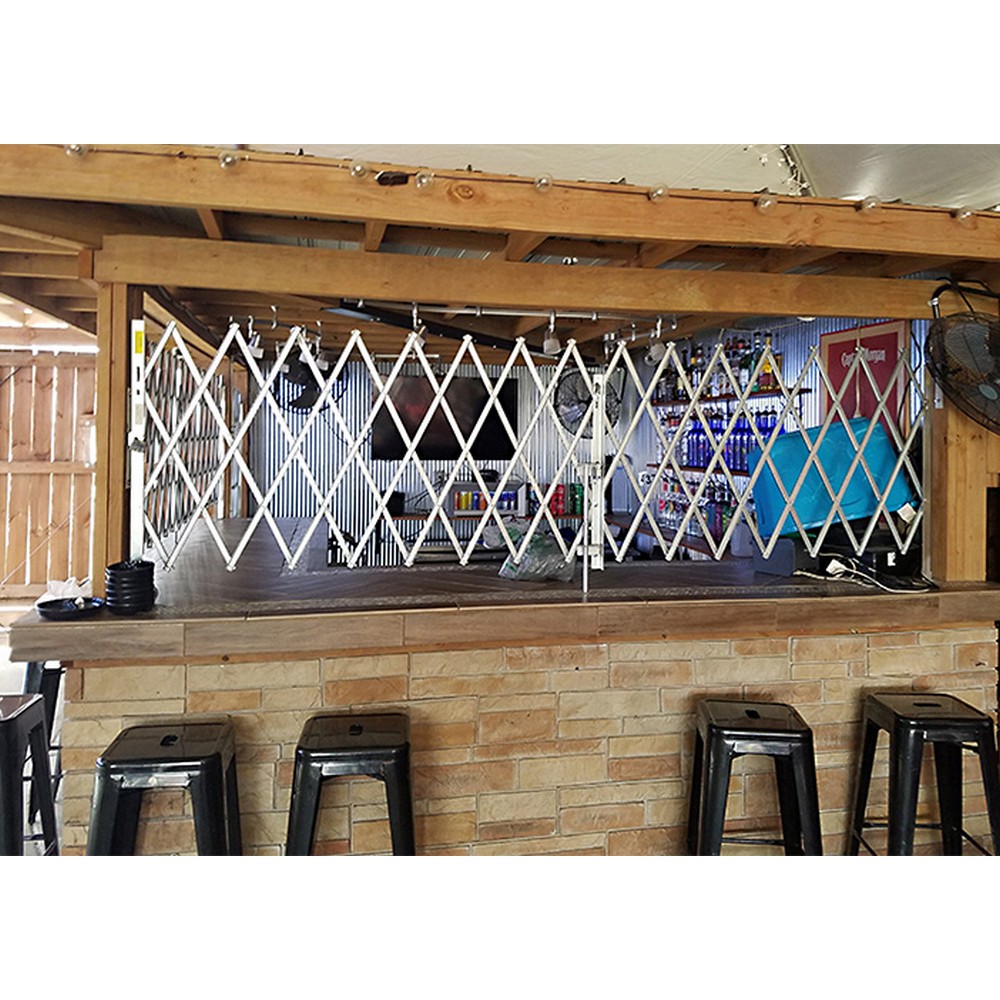

The Illinois Engineered Products SSG1080-ANG is a single retractable folding gate designed to secure loading docks, doors, hallways, and entrances while preserving visibility, air flow, and access. The gate uses a heavy-duty 12-gauge steel vertical frame combined with 14-gauge steel webbing, all finished in galvanized coating to resist rust and simplify cleaning. When extended, the gate stands at 7' 6"; it retracts to 8' high and pivots fully out of the opening to minimize obstruction. The design supports quick, controlled access and enhanced security, with a padlock hasp and a lockable drop pin included for locking options, while mounting brackets and other installation hardware are provided for straightforward setup.
Key construction details matter for compatibility and long-term performance: the frame is a robust 12-gauge 1-1/2" x 1-1/2" vertical angle, and the lattice uses heavy-duty 14-gauge U-channel webbing riveted back-to-back with aircraft-grade aluminum rivets to balance rigidity with lightness. The assembly ships unassembled, and the kit includes solid steel casters and bearing washer, making positioning and repositioning practical in space-constrained areas. Note that lag bolts and a padlock are not included, so buyers should source those items separately to suit their security and mounting requirements.
This single-gate configuration fits openings from 9' to 10' wide and is appropriate for securing areas such as receiving doors, lift-up doors, and corridors where light and air circulation are desired. Its galvanized finish and option for custom powder coating provide flexibility for different facility aesthetics and environments. When planning installation, consider the need for appropriate mounting hardware and fasteners to match your wall or structural framework and to ensure a proper, code-consistent fit.
Features:
- Secure doors, lift-up doors, hallways, and entryways while allowing light and air circulation
- Sturdy 12-gauge steel vertical frame with 14-gauge steel webbing
- Galvanized finish for durability and easy cleaning
- Retracts completely out of the way on its mounts
- Height reduces by 6" when extended
- Includes mounting brackets, bearing washer, and solid steel caster (lag bolts and padlock not included)
- Width:
- 9' to 10'
- Height:
- 8'
- Depth:
- 15 stacked
- Fits Widths:
- 9' to 10'
- Expanded Height:
- 7' 6
- Collapsed Height:
- 8'
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 100.0 lbs. ea.
- Package Size:
- Each
